Home / 90º Wall Mount Hinges / Offset Wall Mount Hinge
Placeholder

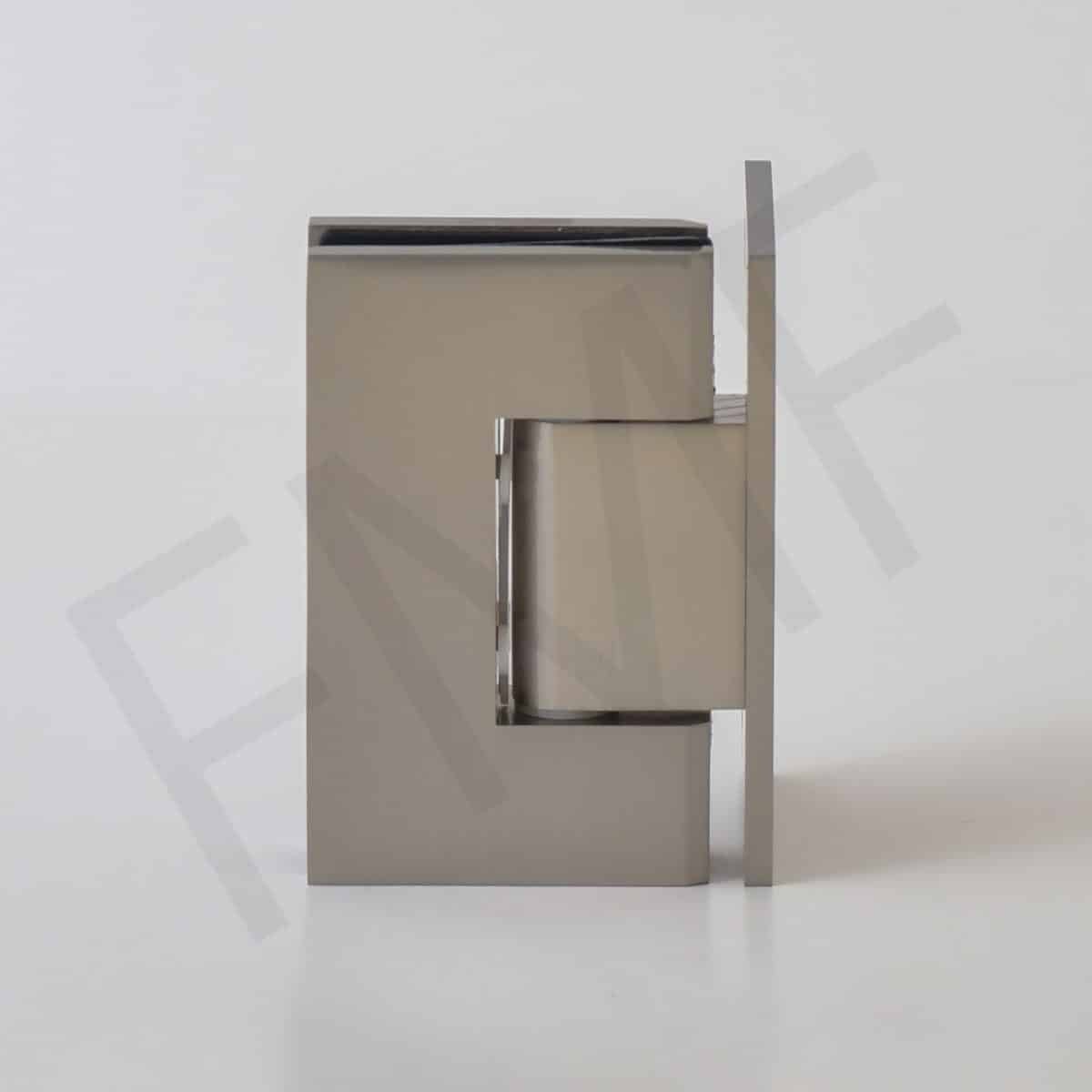

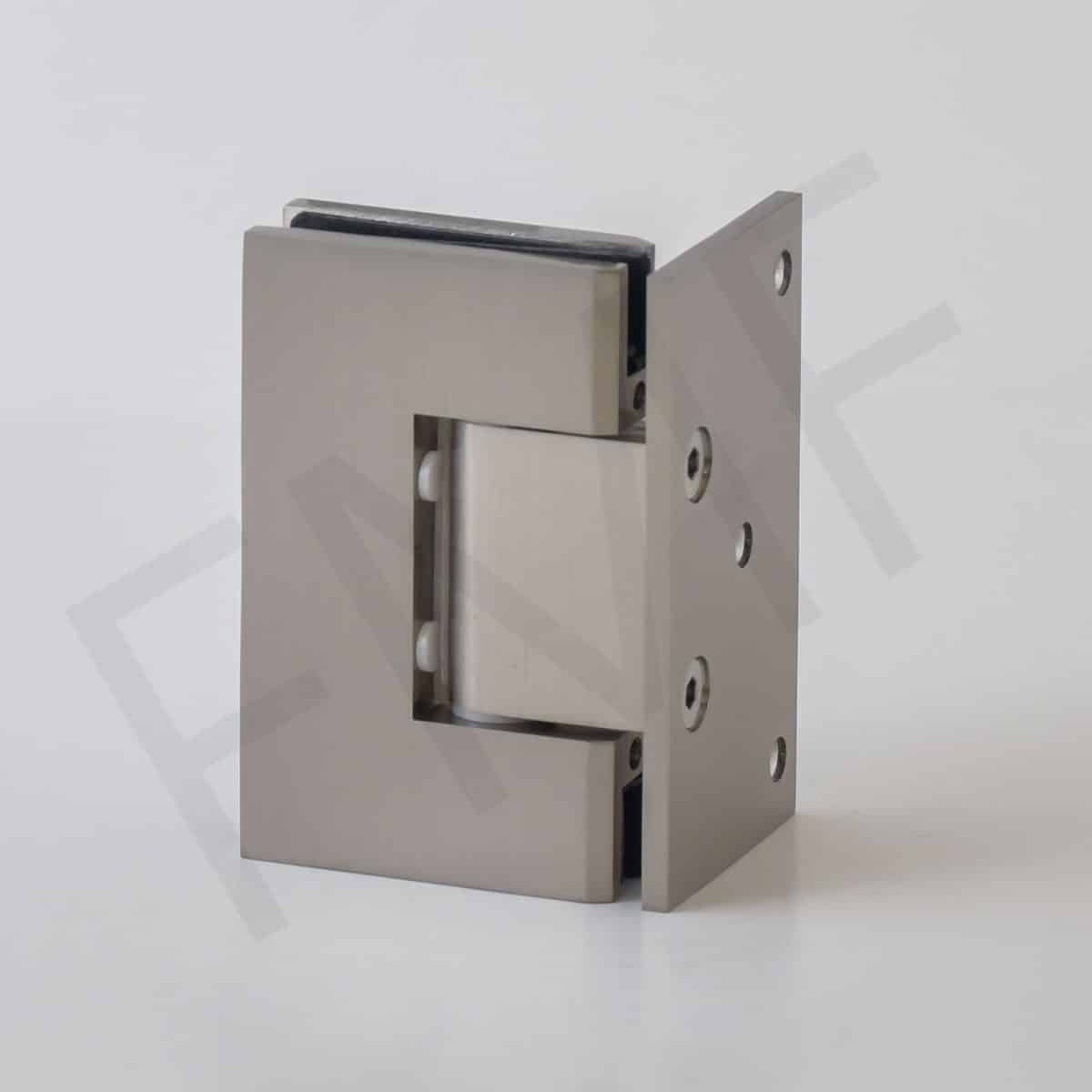

Offset Wall Mount Hinge

Model: G205

90° Offset Glass-To-Wall Hinge

Applicable For: 10-12MM Tempered Glass
Construction Material: Solid Brass
Shipping Weight: 2 LBS (900 Grams Approx.)
Maximum Door Weight: 45 KG Per Pair
Function: Swings 90° In + 90° Out, Self-Centering Within 15° Of Closed Position
Accessories: Screws, Anchors, Allen-Wrench, Fabrication Diagram, Rubber & PVC Gaskets
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service

Maximum Capacities for 10-12mm glass-
Using 2 Hinges- Weight: 80lbs/36kgs; Door Width: 28"/711mm
Using 3 Hinges- Weight: 120lbs/54kgs; Door Width: 32"/813mm

Quantity
-
1
+

Finish

*Glass Fabrication Share

RELATED PRODUCTS

The FMF Adjustable Wall Mount Hinges can accommodate an angle up to 90 degrees. The hinges have an H-style back plate that assists in additional clamping force. Constructed of Solid Brass, the hinges can be used for 10 to 12MM tempered glass. The glass-to-wall hinges give maximum design flexibility and enable the designers to create enclosures of various styles. These hinges have taken the installation of glass shower enclosures to a new level. The glass door can swing 90° inside and 90° outside with the self-centring position at 15 degrees. These hinges are popular for their resistance to rust and durability and are one of the preferred choices of designers and builders for accomplishing shower door installation projects.
Heavy Duty H-Plate Wall Mount Hinge
Heavy Duty Wall Mount Hinge
Offset Wall Mount Hinge
Bevelled Wall Mount Hinge
Short Plate Wall Mount Hinge




Use FMF Wall Mount Shower Door Hinges in your project for easy movement and functioning of your glass shower doors. Constructed of Solid Brass, we ensure the long-term performance of our hinges with easy installation and maintenance.

FMF Offset Wall Mount Hinges are designed for shower door installations at residential or hotel properties. Our series of hinges combines elegant design with premium quality. The offset wall-mount hinges give an undisturbed look to the shower area.

Choose from our number of beautiful finishes for wall mount hinges to enhance the décor of your bathroom. These hinges are constructed of Solid Brass to provide durability and strength. The hinges give an easy movement to the glass doors when we are in a hurry to take the shower in our busy lifestyle.
