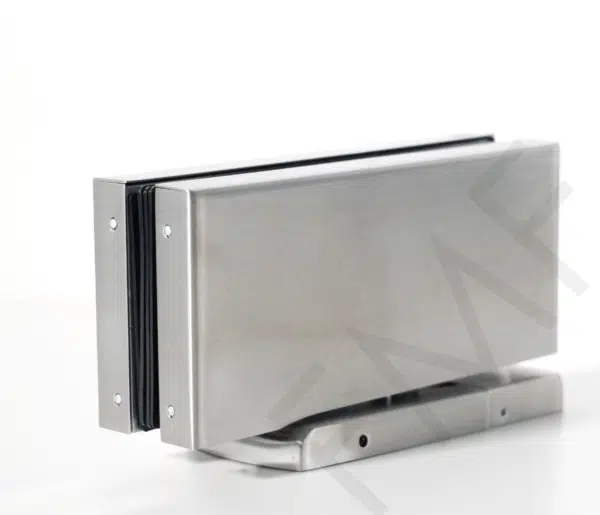

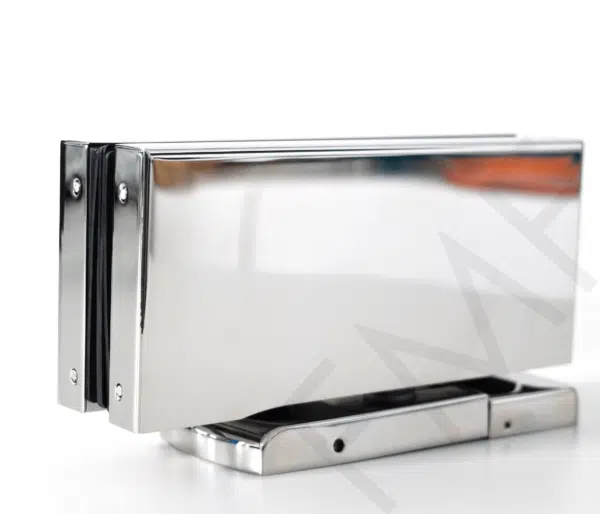

Hydraulic Patch Fitting Hinges

Adjustable Speed
Holds Open At 90°
Self-Closing
For Interior Use Only

Applicable For: 10-12MM Tempered Glass
Construction Material: Aluminium Body With 304 Grade Stainless Steel Cover Plate
Shipping Weight: 4 LBS (1.8 KG Approx.)
Maximum Door Weight: 175 LBS (80 KG.)
Maximum Door Width: Not Exceeding 32”
Cut Out Required: Please Refer To Attached Cut Out Diagram Above
Function: To Open & Hold Glass Doors At A 90° Angle, When Closing, Door Swing Speed Can Be Adjusted To Preference

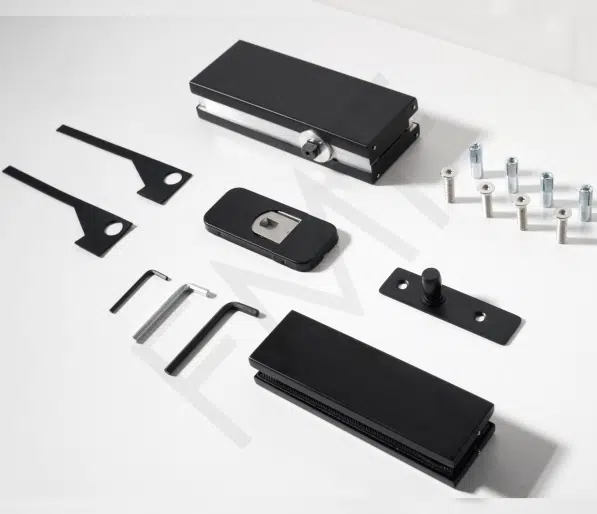

Accessories: Screws, Bolts, Gaskets (Used For 10MM Tempered Glass), Allen Wrench, Fabrication Diagram, Instructions Sheet
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service

Hydraulic Hinge Standard-Duty - 100kg

Hydraulic Patch Fitting Hinges

Adjustable Speed
Holds Open At 90°
Self-Closing
For Interior Use Only

Applicable For: 10-12MM Tempered Glass
Construction Material: Aluminium Body With 304 Grade Stainless Steel Cover Plate
Shipping Weight: 4 LBS (1.8 KG Approx.)
Maximum Door Weight: 175 LBS (80 KG.)
Maximum Door Width: Not Exceeding 32”
Cut Out Required: Please Refer To Attached Cut Out Diagram Above
Function: To Open & Hold Glass Doors At A 90° Angle, When Closing, Door Swing Speed Can Be Adjusted To Preference
Accessories: Screws, Bolts, Gaskets (Used For 10MM Tempered Glass), Allen Wrench, Fabrication Diagram, Instructions Sheet
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service
