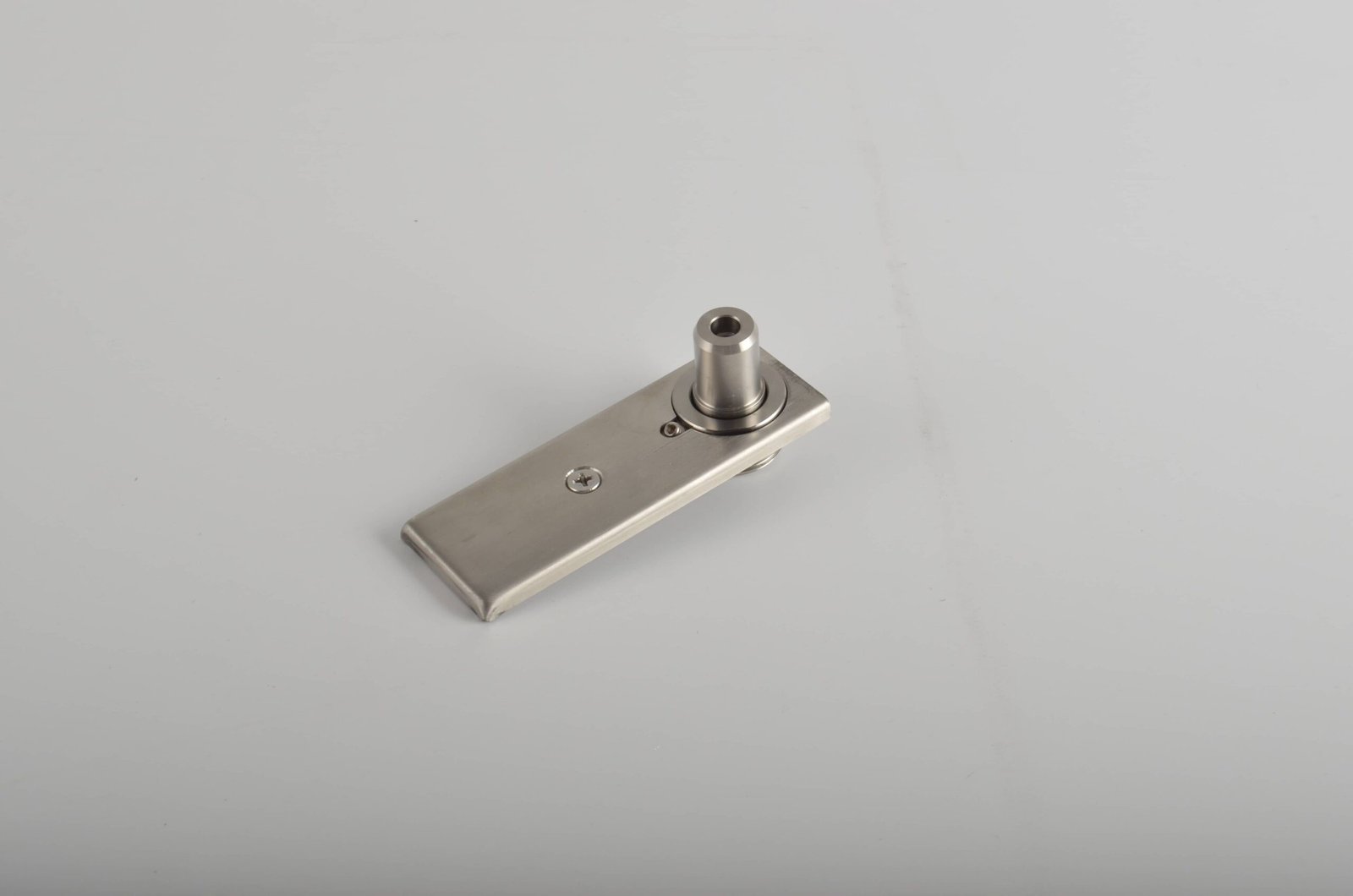

Sidelite Mount Transom Patch Fitting

At FMF Glass Hardware, we pride ourselves on offering top-tier architectural hardware solutions across Canada. Our Sidelite Mounted Transom Patch is engineered to provide secure and reliable support for transom glass panels mounted from adjacent sidelites. This high-performance patch fitting is ideal for both residential and commercial frameless glass applications.

The unit comes complete with an insert that enables door mounting compatibility with FMF's Top Door Patch Fittings (PAT-02 or PAT-07). Its design also supports double-swing door configurations, with easy adjustability on the non-hinged side. For one-way swing applications, pair it with the FMF Door Stop Patch Fitting PAT-06 for controlled door movement.

For transom glass exceeding 100 lbs. (45.4 kg), we recommend ceiling support to ensure long-term durability and structural integrity.

Specifications:
- Compatible with 3/8" or 1/2" (10 or 12 mm) tempered glass
- Constructed from premium aluminum and fitted with a durable Grade 304 stainless steel cover plate
- Suitable for both interior and exterior installations

Available Finishes:
- Brushed Stainless Steel
- Matte Black
- Polished Stainless Steel
- Satin Brass
- Satin Anodized

Key Features:
- Maximum Glass Weight: 100 kg (220 lbs)
- Maximum Door Width: 39" (1000 mm)
- Maximum Door Height: 102" (2590 mm)

Backed by FMF’s 5-Year Product Warranty
