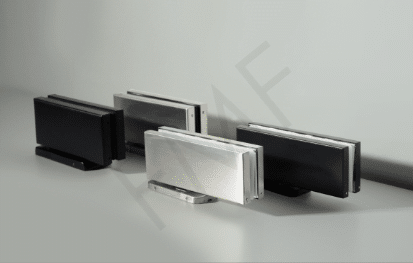

Hydraulic Patch Fitting kit Heavy duty-150kg

Hydraulic Patch Fitting kit Heavy duty-150kg

Model: HYP-151


Available in stock

Quantity
-
1
+

Product Details

+

Product Overview

+

The Heavy Duty Hydraulic Glass Hinge Kit is built for maximum strength and control in high-traffic interior glass door installations. Designed to handle 10–12mm tempered glass, this kit includes everything needed for a secure and smooth operation: a heavy-duty hydraulic hinge, top patch fitting, and pivot pin. With no digging required, installation is simple and efficient.

Key Features:
- Adjustable Speed: Fine-tune the door’s swing speed to match your needs.
- Self-Closing with Hold Open at 90°: Keeps the door open at a fixed angle or allows it to close automatically.
- No Digging Required: Surface-mounted design ensures easy installation.
- Top Patch Mounted to Ceiling: Offers stable overhead support.
- Interior Use Only: Suitable for residential and commercial indoor applications.

Specifications:
- Applicable Glass Thickness: 10–12mm tempered glass
- Construction: Aluminum body with 304-grade stainless steel cover plate
- Maximum Door Weight: 330 lbs (150 kg)
- Maximum Door Width: Up to 39 inches
- Shipping Weight: 6 lbs
- Cut-Out Required: Refer to the attached fabrication diagram

Kit Includes:
- 1 × HYP-150 Hydraulic Hinge
- 1 × PAT-02 Top Patch Fitting
- 1 × PAT-PIN Pivot Pin

Included Accessories:
- Screws and bolts
- Gaskets (for 10mm tempered glass)
- Allen wrench
- Fabrication diagram
- Installation instructions

Additional Details:
- Function: Opens and holds glass doors at 90°, with adjustable self-closing motion
- Warranty: Limited 1-year warranty
- Shipping: Ships via third-party courier service
