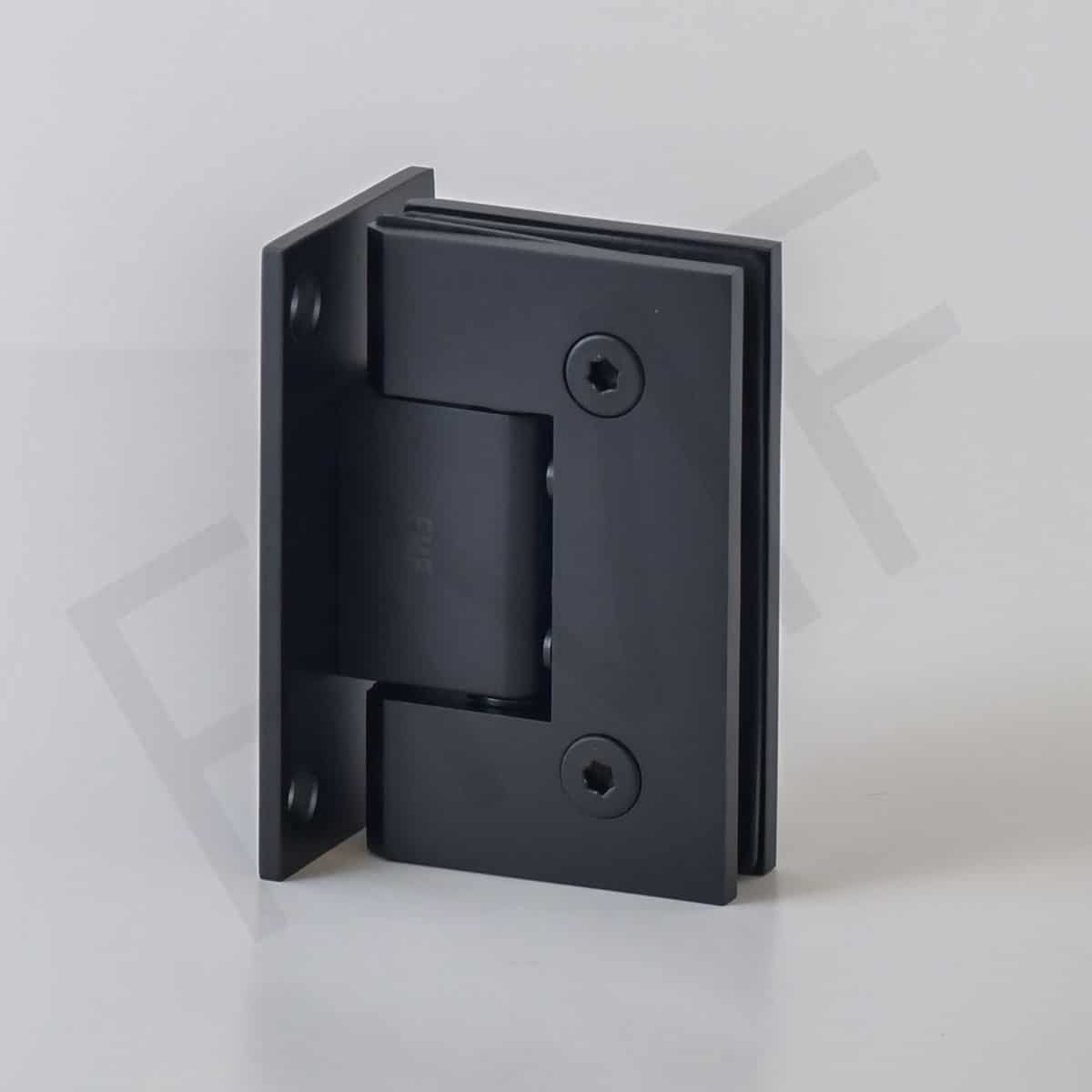

Heavy Duty Wall Mount Hinge

Model: V201

90° Heavy Duty Glass-To-Wall Hinge
Full Back-Plate

Applicable For: 10-12MM Tempered Glass
Construction Material: Solid Brass
Shipping Weight: 2 LBS (900 Grams Approx.)
Maximum Door Weight: 50 KG Per Pair
Function: Swings 90° In + 90° Out, Self-Centering Within 15° Of Closed Position
Accessories: Screws, Anchors, Allen-Wrench, Fabrication Diagram, Rubber & PVC Gaskets
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service

Maximum Capacities for 10-12mm glass-
Using 2 Heavy Duty Hinges- Weight: 110lbs/50kgs; Door Width: 36"/914mm
Using 3 Heavy Duty Hinges- Weight: 140lbs/63kgs; Door Width: 36"/914mm

Please Login to View Price.

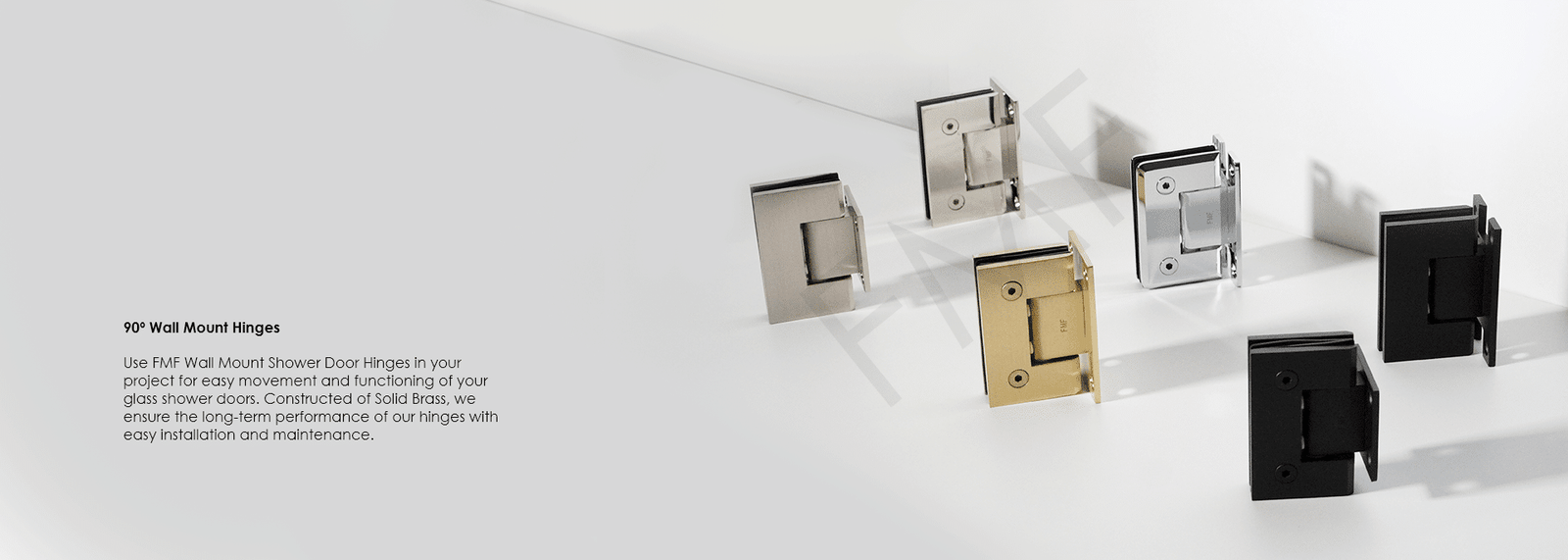

Use FMF Wall Mount Shower Door Hinges in your project for easy movement and functioning of your glass shower doors. Constructed of Solid Brass, we ensure the long-term performance of our hinges with easy installation and maintenance.

Heavy Duty Wall Mount Hinges by FMF also come with a full back plate. As they are made of Solid Brass, they can sustain the daily impact of the usage of the doors.

The hinges allow the doors to swing in and out by 90° with a self-centering of 15° in a closed position. The hinges make the shower doors easy to use. We provide three beautiful finishes of the hinges to match your bathroom design.
