Home / 90º Wall Mount Hinges / Heavy Duty H-Plate Wall Mount Hinge
Placeholder

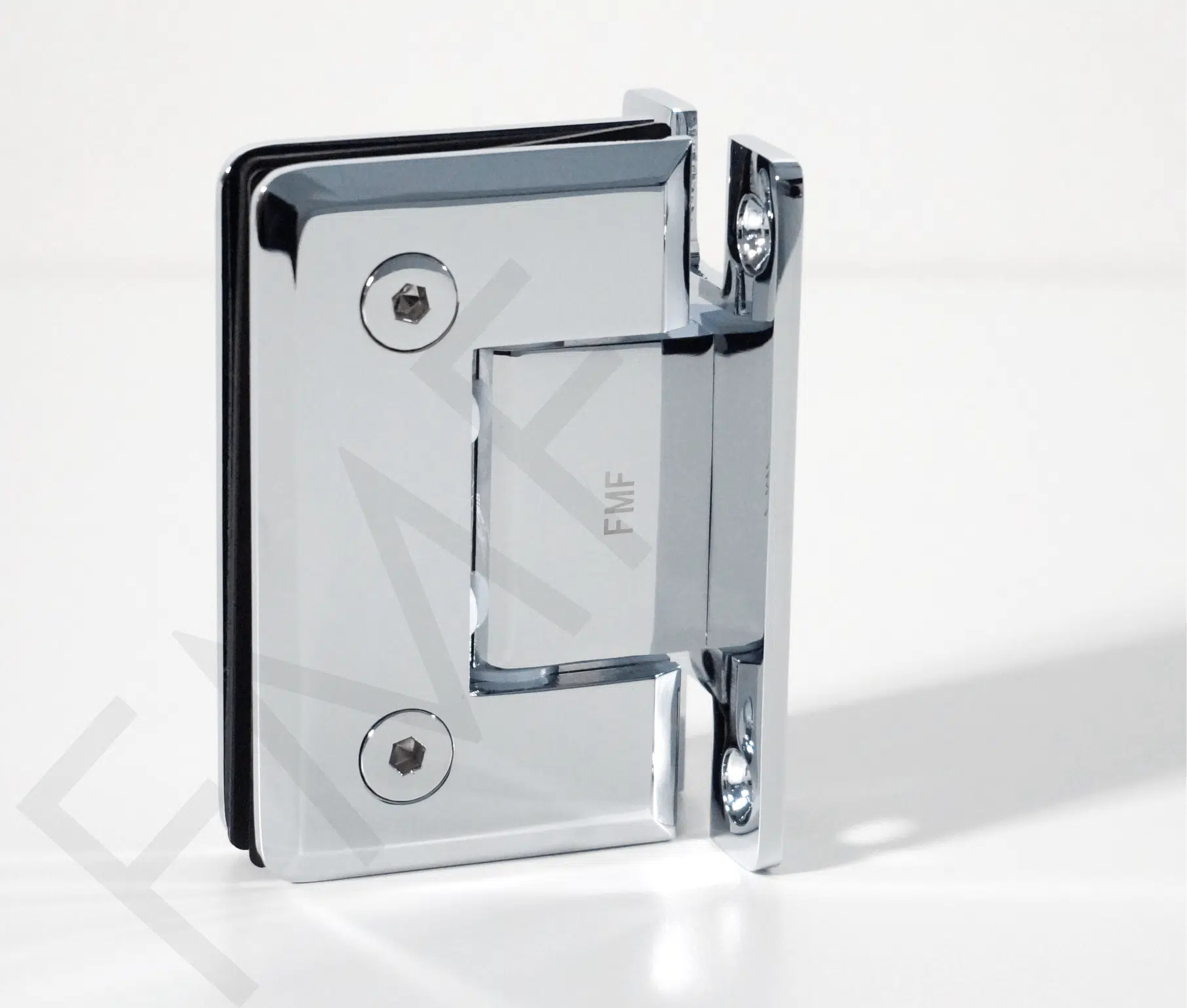

Heavy Duty H-Plate Wall Mount Hinge

Model: V200

90° Heavy Duty Glass-To-Wall Hinge
H-Style Back-Plate

Applicable For: 10-12MM Tempered Glass
Construction Material: Solid Brass
Shipping Weight: 2 LBS (900 Grams Approx.)
Maximum Door Weight: 50 KG Per Pair
Function: Swings 90° In + 90° Out, Self-Centering Within 15° Of Closed Position
Accessories: Screws, Anchors, Allen-Wrench, Fabrication Diagram, Rubber & PVC Gaskets
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service

Maximum Capacities for 10-12mm glass-
Using 2 Heavy Duty Hinges- Weight: 110lbs/50kgs; Door Width: 36"/914mm
Using 3 Heavy Duty Hinges- Weight: 140lbs/63kgs; Door Width: 36"/914mm

Quantity
-
1
+

Finish

*Glass Fabrication Share

RELATED PRODUCTS

The FMF Adjustable Wall Mount Hinges can accommodate an angle up to 90 degrees. The hinges have an H-style back plate that assists in additional clamping force. Constructed of Solid Brass, the hinges can be used for 10 to 12MM tempered glass. The glass-to-wall hinges give maximum design flexibility and enable the designers to create enclosures of various styles. These hinges have taken the installation of glass shower enclosures to a new level. The glass door can swing 90° inside and 90° outside with the self-centring position at 15 degrees. These hinges are popular for their resistance to rust and durability and are one of the preferred choices of designers and builders for accomplishing shower door installation projects.
Heavy Duty Wall Mount Hinge
Offset Wall Mount Hinge
Bevelled Wall Mount Hinge




Use FMF Wall Mount Shower Door Hinges in your project for easy movement and functioning of your glass shower doors. Constructed of Solid Brass, we ensure the long-term performance of our hinges with easy installation and maintenance.

Heavy Duty H-Plate Wall Mount Hinges by FMF are made of Solid Brass. Therefore, they are strong and resistant to moisture. These hinges accommodate the door to swing in and out by 90° with self-centering of closed position on 15°.

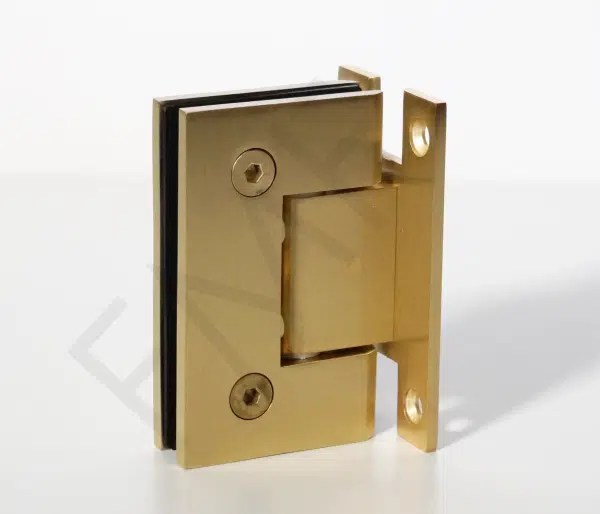

We carry four beautiful finishes of these hinges to match your varying design themes. These hinges can hold up to 50 kg of door weight per pair. Therefore, they are ideal to install a heavy shower door in the bathroom.
