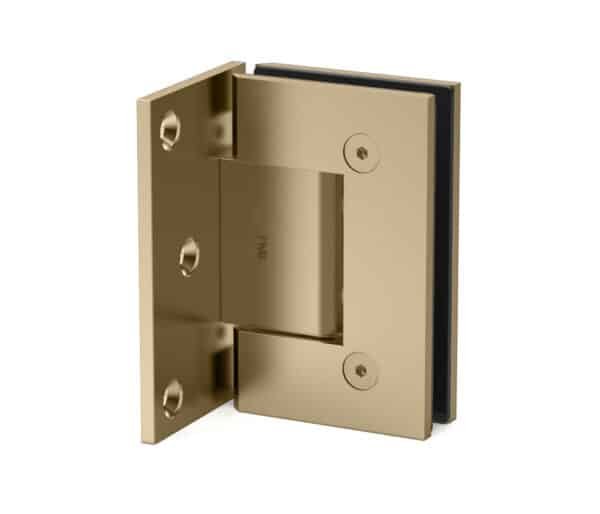

Short Plate Wall Mount Hinge

Model: G207

90° Glass-To-Wall Hinge
Short Back-Plate

Applicable For: 8-10MM Tempered Glass
Construction Material: Solid Brass
Shipping Weight: 2 LBS (900 Grams Approx.)
Maximum Door Weight: 45 KG Per Pair
Function: Swings 90° In + 90° Out, Self-Centering Within 15° Of Closed Position
Accessories: Screws, Anchors, Allen-Wrench, Fabrication Diagram, Rubber & PVC Gaskets
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service

Maximum Capacities for 10-12mm glass-
Using 2 Hinges- Weight: 80lbs/36kgs; Door Width: 28"/711mm
Using 3 Hinges- Weight: 120lbs/54kgs; Door Width: 32"/813mm

Please Login to View Price.


Quantity
-
1
+



90° Glass-To-Wall Hinge
Short Back-Plate

Applicable For: 8-10MM Tempered Glass
Construction Material: Solid Brass
Shipping Weight: 2 LBS (900 Grams Approx.)
Maximum Door Weight: 45 KG Per Pair
Function: Swings 90° In + 90° Out, Self-Centering Within 15° Of Closed Position
Accessories: Screws, Anchors, Allen-Wrench, Fabrication Diagram, Rubber & PVC Gaskets
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service

Maximum Capacities for 10-12mm glass-
Using 2 Hinges- Weight: 80lbs/36kgs; Door Width: 28"/711mm
Using 3 Hinges- Weight: 120lbs/54kgs; Door Width: 32"/813mm







Use FMF Wall Mount Shower Door Hinges in your project for easy movement and functioning of your glass shower doors. Constructed of Solid Brass, we ensure the long-term performance of our hinges with easy installation and maintenance.

FMF Short Plate Wall Mount Hinges are able to provide flexibility to the glass shower doors. Their construction in Solid Brass gives durability and resistance to rust so that they can withstand the wet environment in the shower area. These 90° Glass-To-Wall Hinges accommodate the easy installation of shower doors in bathrooms of hotels and residential spaces.

We carry beautiful finishes such as Brushed Nickel, Chrome, and Matte Black to match the design requirements of architects and designers. These hinges allow easy movement of glass doors with opening and closing at a 90° angle with self-centering at 15° of closed position. Try our hinges for upscaling the bathroom décor for a timeless look.

?>
