Offset Pivot Hinge

Model: P502

90° Offset Pivot Hinge

Applicable For: 10-12MM Tempered Glass
Construction Material: Solid Brass
Shipping Weight: 2 LBS (900 Grams Approx.)
Maximum Door Weight: 45 KG Per Pair
Function: Swings 90° In + 90° Out, Self-Centering Within 15° Of Closed Position
Accessories: Screws, Anchors, Allen-Wrench, Fabrication Diagram, Rubber & PVC Gaskets
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service

Maximum Capacities for 10-12mm glass-
Using 2 Hinges- Weight: 80lbs/36kgs; Door Width: 28"/711mm
Using 3 Hinges- Weight: 120lbs/54kgs; Door Width: 32"/813mm

Please Login to View Price.

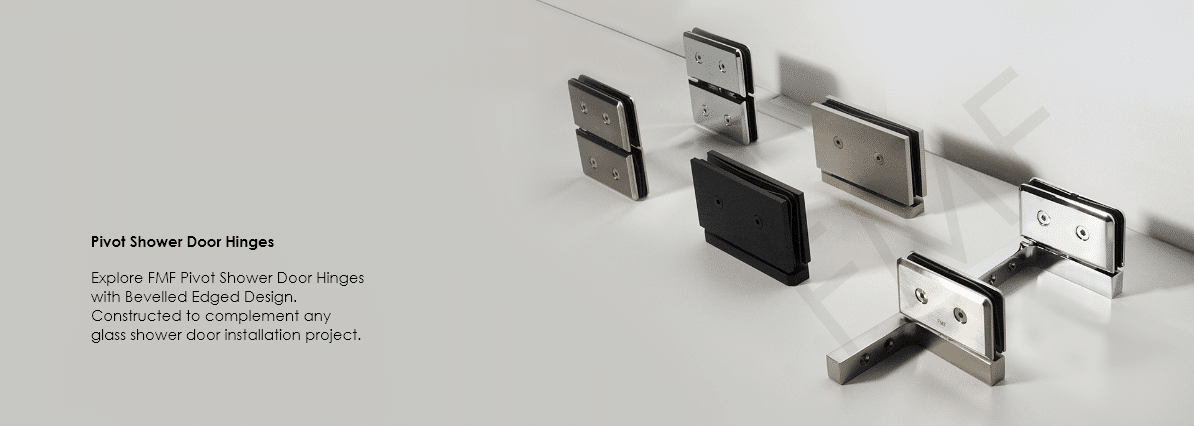

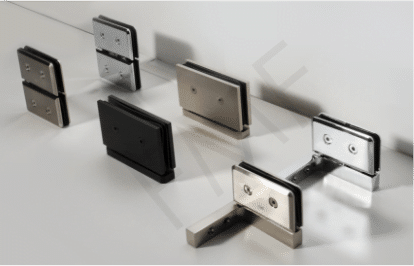

Explore FMF Pivot Shower Door Hinges with Bevelled Edged Design. Constructed to complement any glass shower door installation project.

FMF Offset Pivot Hinges are constructed according to the highest quality standards. Their uniqueness makes them a popular choice amongst builders and designers in Toronto. They are designed to install the glass shower door to an adjacent wall. The offset plate allows the hinges to be installed closer to the walls.

Their construction in Solid Brass makes them ideal for shower door applications as they offer durability and resistance to moist environments. The hinges are available in two beautiful finishes to complement any shower door installation project. They allow smooth and easy functioning of glass doors with opening and closing at a 90-degree angle.
