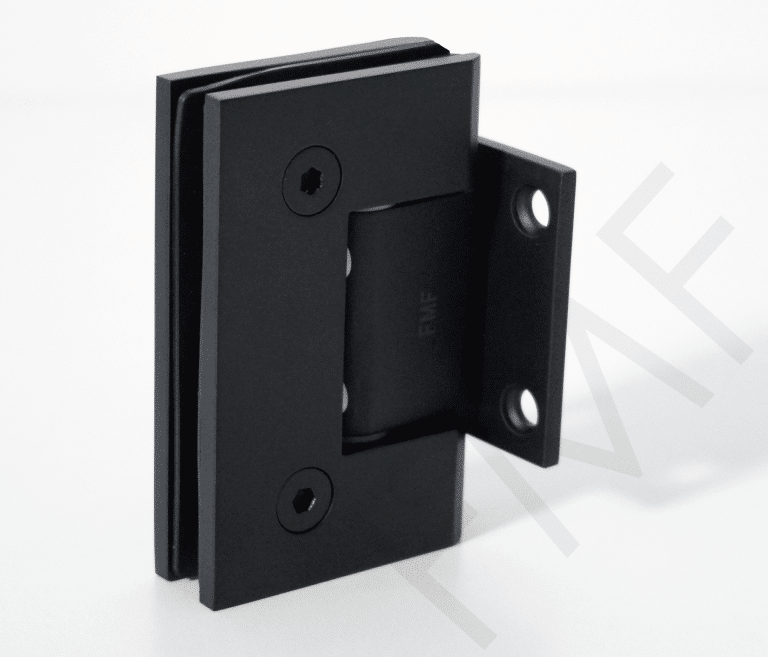

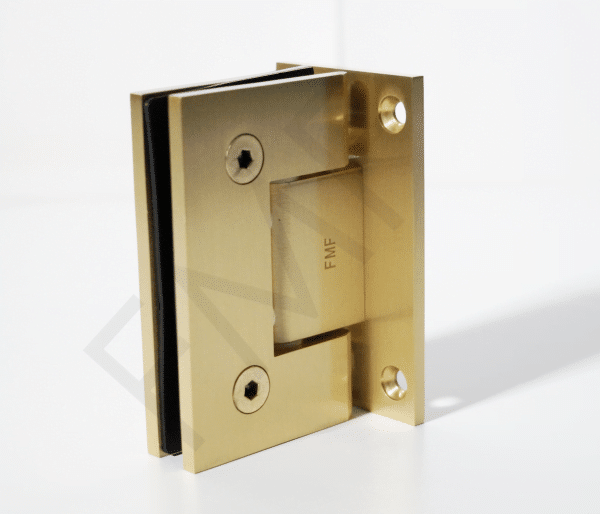

Bevelled Wall Mount Hinge

Model: G300

90° Bevelled Glass-To-Wall Hinge
H-Style Back-Plate

Applicable For: 10-12MM Tempered Glass
Construction Material: Solid Brass
Shipping Weight: 2 LBS (900 Grams Approx.)
Maximum Door Weight: 45 KG Per Pair
Function: Swings 90° In + 90° Out, Self-Centering Within 15° Of Closed Position
Accessories: Screws, Anchors, Allen-Wrench, Fabrication Diagram, Rubber & PVC Gaskets
Warranty: Limited 1 Year Warranty
Ship Via: Third-party courier service

Maximum Capacities for 10-12mm glass-
Using 2 Hinges- Weight: 80lbs/36kgs; Door Width: 28"/711mm
Using 3 Hinges- Weight: 120lbs/54kgs; Door Width: 32"/813mm

Please Login to View Price.

Quantity

Finish

*Glass Fabrication

Use FMF Wall Mount Shower Door Hinges in your project for easy movement and functioning of your glass shower doors. Constructed of Solid Brass, we ensure the long-term performance of our hinges with easy installation and maintenance.

FMF Bevelled Wall Mount Hinges are commonly used in residential and commercial hotel bathrooms. We carry a stock of several finishes for our hinges to select the one that coordinates with the other hardware design and colour of the bathroom. These Bevelled hinges are wall-mounted with an H-style back plate to provide maximum capacity and strength.

They require very less amount of effort in installations. The Solid Brass construction provides durability and resistance to rust. The bevelled edges give a modern and trendy appearance and are perfect for sophisticated bathroom décor. The hinges are self-centering with 15 degrees of closed position. They enable easy movement of the shower door by opening and closing at 90 degrees.
