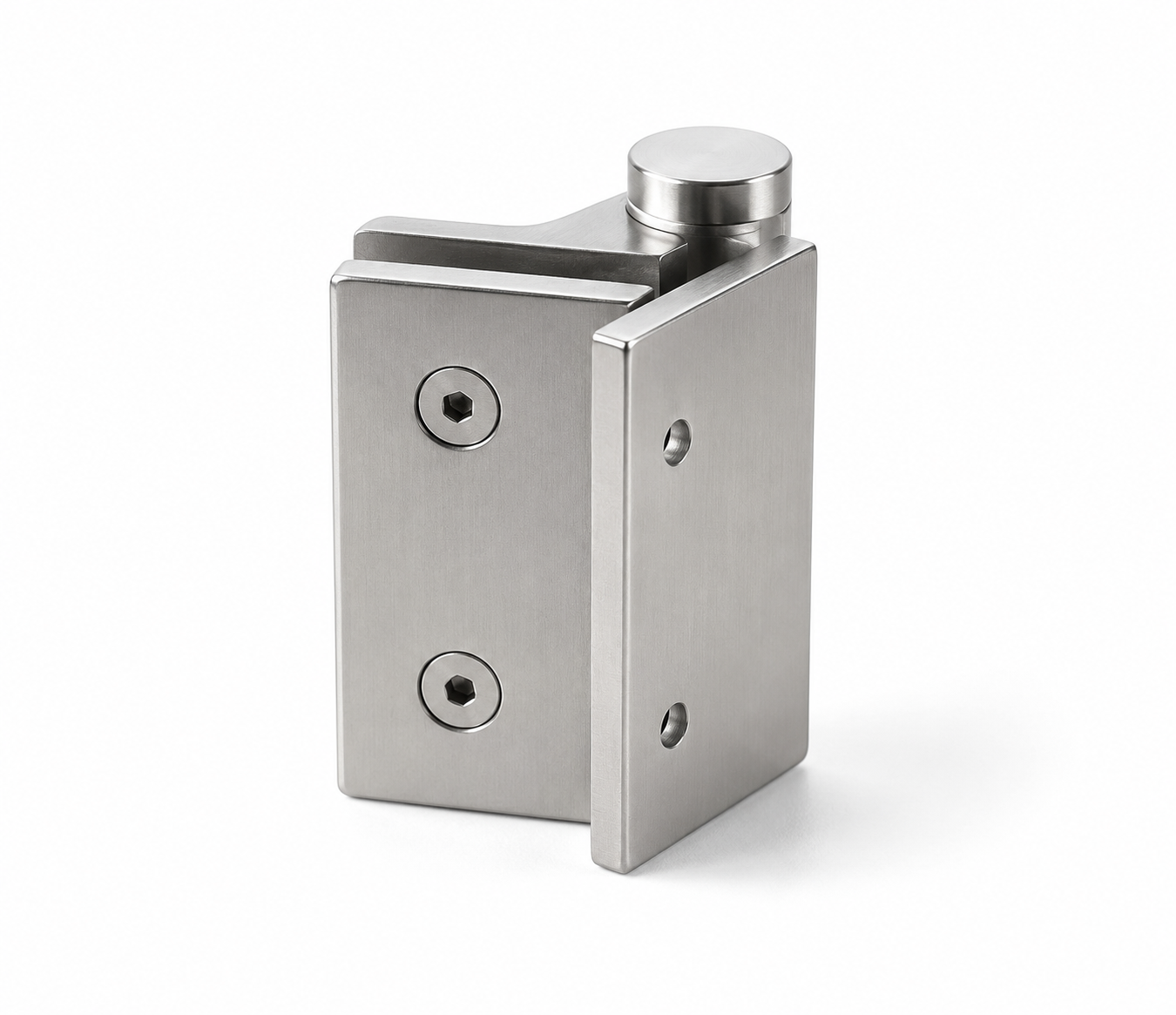

Apex glass-to-wall self-closing pool gate hinge, brushed stainless

Apex Glass-to-Wall Self-Closing Pool Gate Hinge (Pair)

Brushed Stainless
Skip to product information
Apex glass-to-wall self-closing pool gate hinge, brushed stainless
Model:
POLG-200.SS

Apex Glass-to-Wall Self-Closing Pool Gate Hinge (Pair)

Wall Mount Self-Closing Gate Hinge Set-SS
FinishBrushed Stainless
PICKUP LOCATION IN STOCK
FMF Hardware Supply | Concord …
FMF Glass Hardware | Mississauga …
FMF Hardware Solutions | Woodbridge …
Product Details −
Shipping Dimensions: Length: 6819159 in , Width: 3.1 in , Height: 2.8 in Finish/Color: Brushed Stainless
Applicable: Wall or 40 x 40 mm square post; 8–12 mm tempered glass Shipping Weight: 1.5
Material: 316 Grade Stainless Steel Warranty: Limited 1-year warranty
Shipping Method: Via third-party courier service
Product Overview +

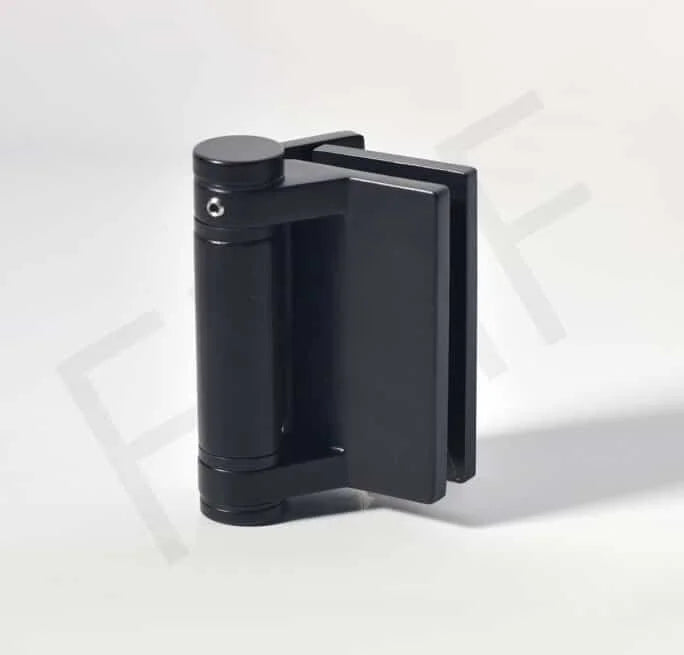

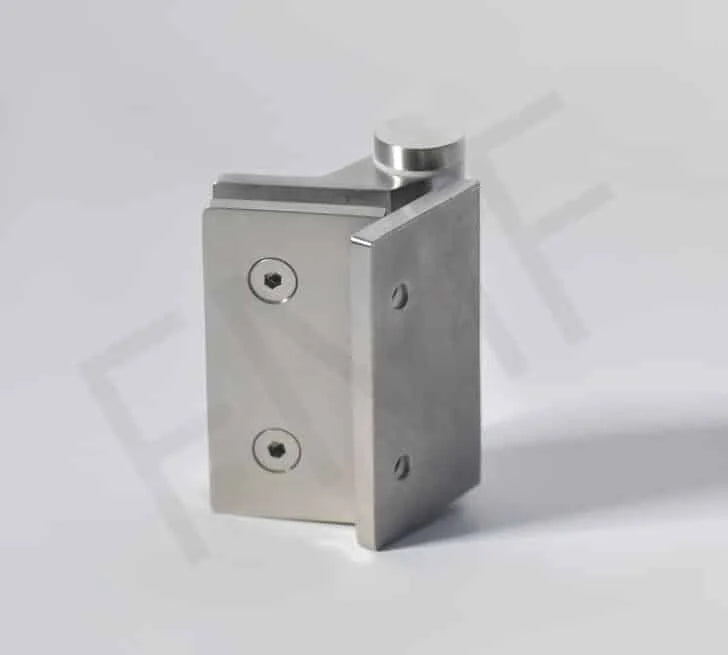

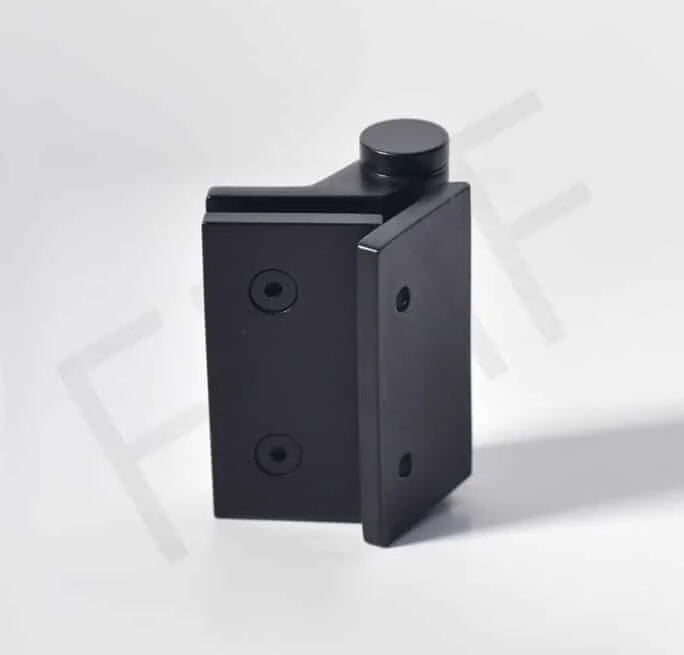

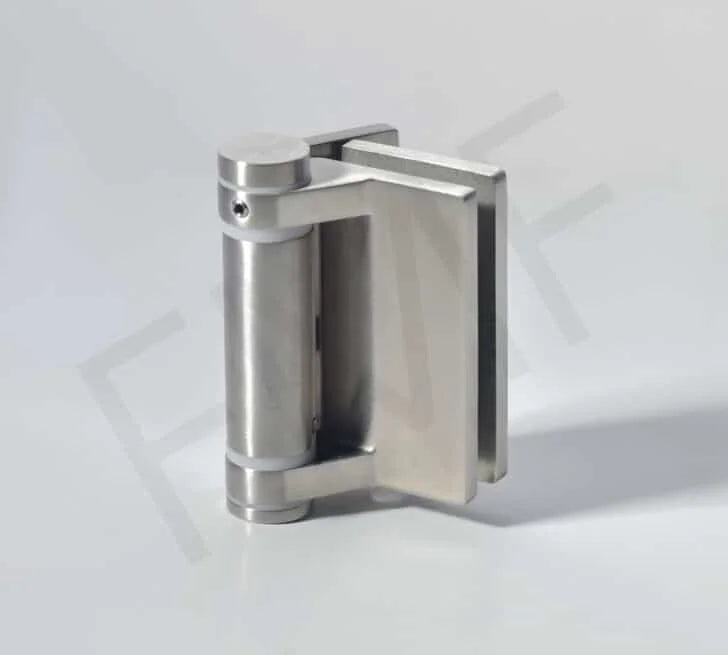

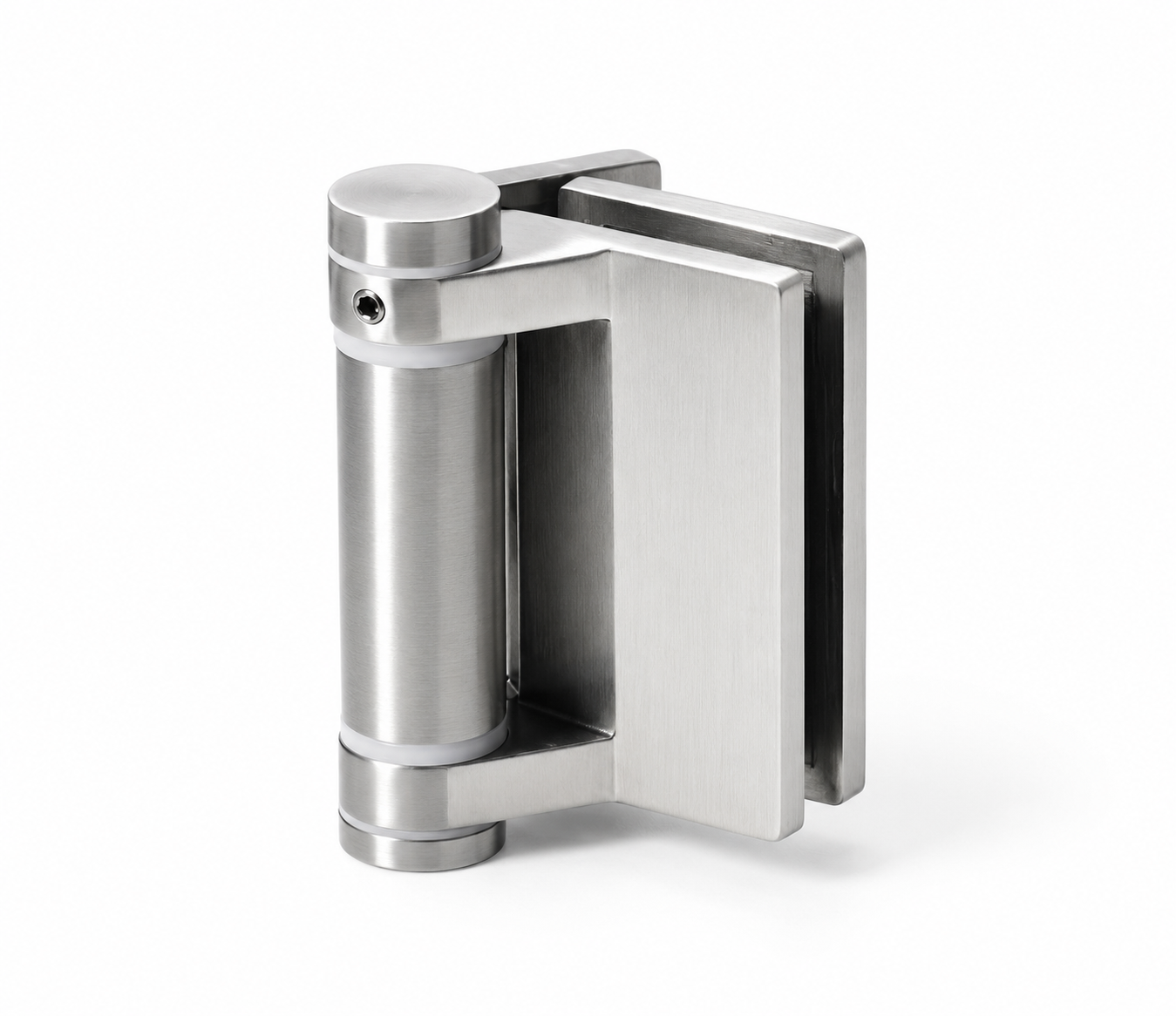

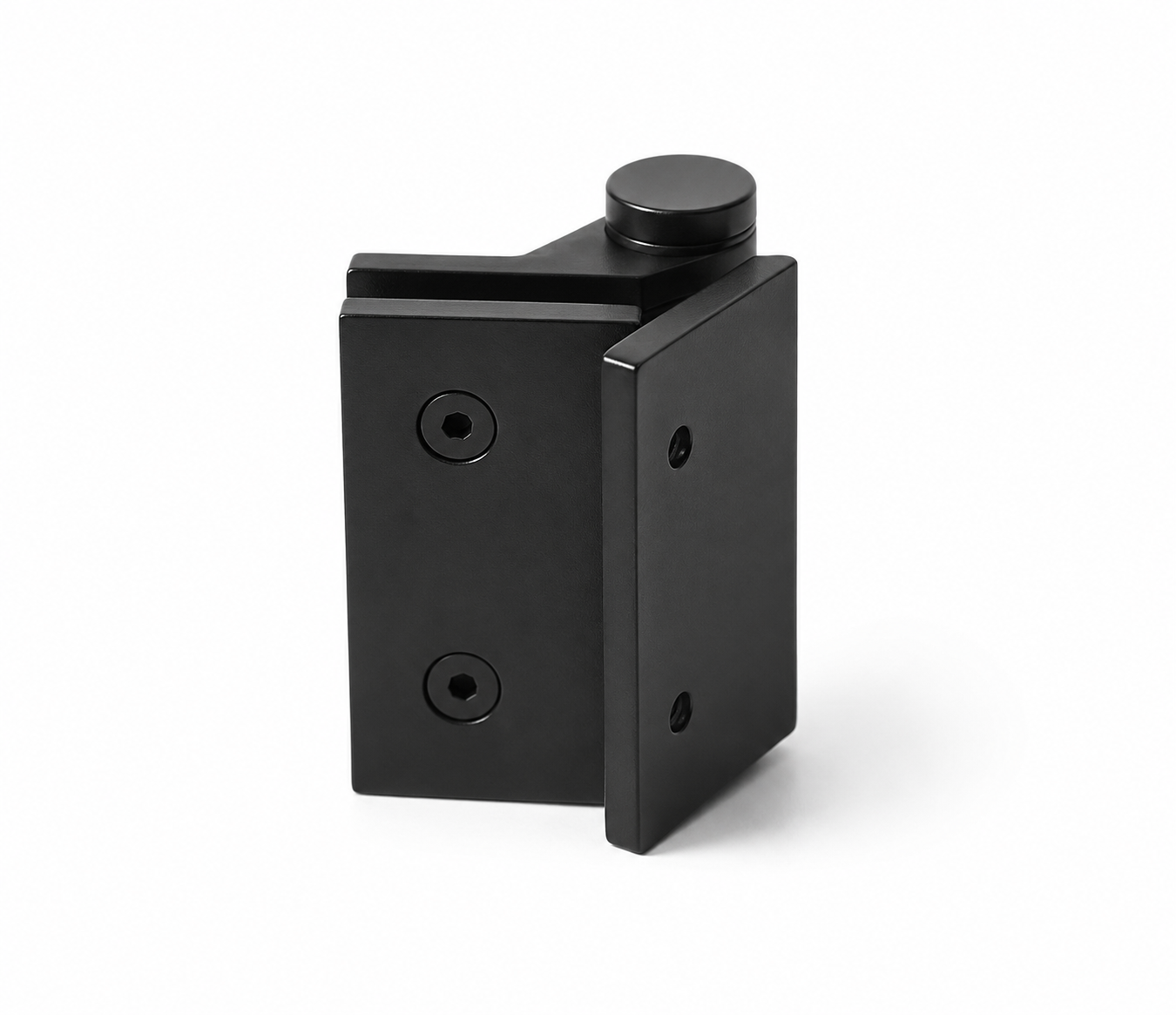

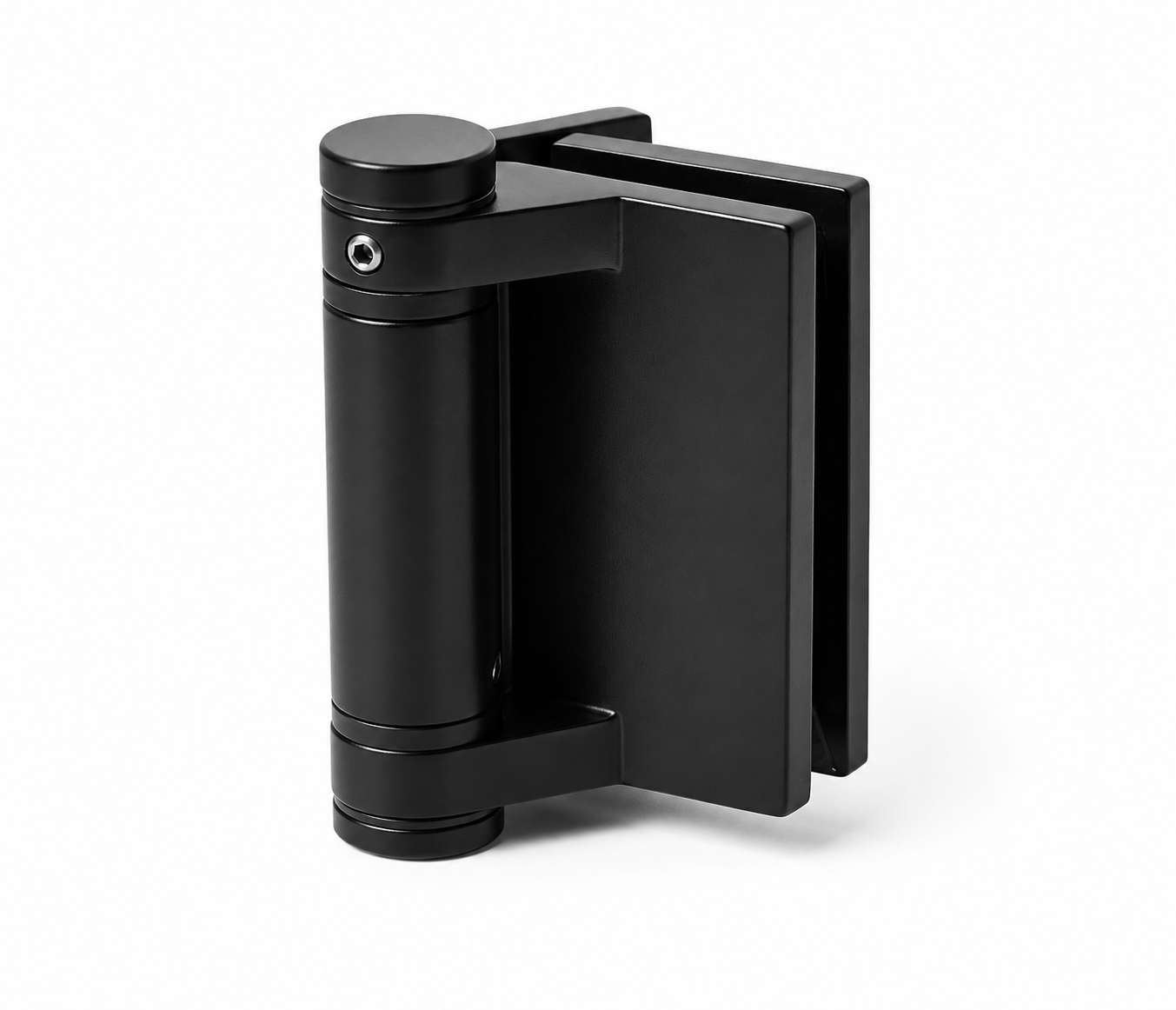

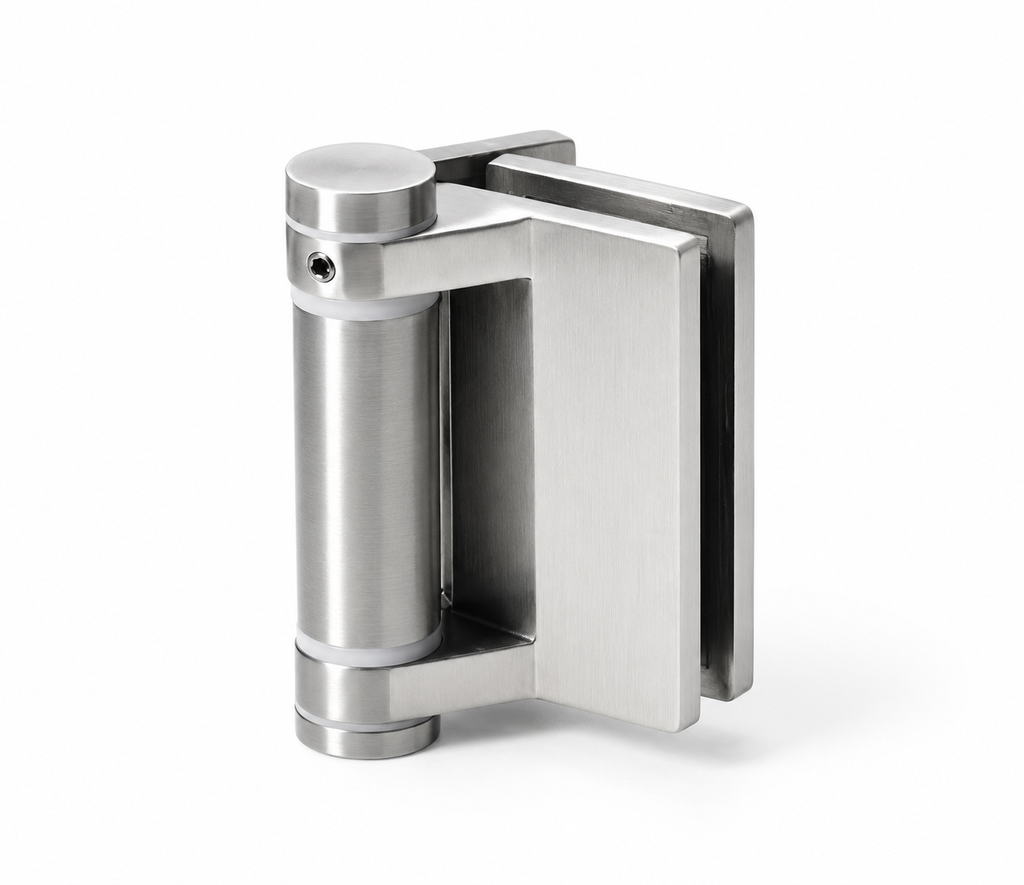

Hang a frameless glass pool gate from a wall or a 40 x 40 mm square post with this pair of Apex self-closing hinges. They swing the gate shut on their own after every use, carry gates up to 45 kg, and suit 8–12 mm tempered glass. Made of 316 stainless steel in brushed or matte black, they're the mid-range choice between our Core and Elite pool gate hinges.

Key Features

  • Glass-to-wall – mounts to a wall or a 40 x 40 mm square railing post
  • Self-closing – returns the gate to the latch after every use
  • Fits 8–12 mm tempered glass; gates up to 45 kg
  • 316 stainless steel for poolside and outdoor use
  • Screws, bolts and gaskets included
  • Brushed Stainless or Matte Black, sold as a pair

Specifications

  • Model: POLG-200
  • Configuration: Glass-to-wall (gate to wall or 40 x 40 mm square post)
  • Material: 316 stainless steel
  • Finishes: Brushed Stainless (.SS), Matte Black (.BL)
  • Closing action: Self-closing
  • Glass: 8–12 mm tempered glass
  • Max gate weight: 45 kg (99 lb)
  • Sold as: Pair (2 hinges per gate)
  • In the box: 2 hinges, screws, bolts and gaskets
  • Use: Interior and exterior

Installation Notes

  • Fasten into solid masonry, concrete, blocking or a 40 x 40 mm square post.
  • Glass cut-outs must be made before the glass is tempered – see the Glass Fabrication drawing under Technical References.
  • Pool gates must also be self-latching: pair these hinges with a glass fence lock.
  • Check your local pool-enclosure bylaw for gate height, swing direction and latch height.

Pairs well with: Glass fence locks, Apex Glass-to-Glass Self-Closing Pool Gate Hinge (POLG-203) for glass-side gates, or the Elite Glass-to-Wall Soft-Close hinge for a soft-close upgrade.
