Hydraulic Patch Fitting kit Light Duty- 80kg

The Light Duty Hydraulic Glass Hinge Kit is an all-in-one solution for smooth, controlled glass door installations in interior spaces. Designed for 10–12mm tempered glass, this kit includes everything needed for a streamlined setup: a hydraulic hinge, a top patch fitting, and a pivot pin. With a surface-mounted design and no digging required, it’s ideal for residential and light commercial projects.

Key Features:
- Adjustable Speed: Customize the door’s closing speed to match user preferences.
- Self-Closing with Hold Open Function: Keeps the door open at 90° or returns it smoothly to the closed position.
- No Digging Required: Easy surface-mounted installation.
- Top Patch Mounted to Ceiling: Ensures stable pivot support for overhead applications.
- Interior Use Only: Built specifically for indoor glass door setups.

Specifications:
- Applicable Glass Thickness: 10–12mm tempered glass
- Construction: Aluminum body with 304-grade stainless steel cover plate
- Maximum Door Weight: 175 lbs (80 kg)
- Maximum Door Width: Up to 32 inches
- Shipping Weight: 6 lbs
- Cut-Out Required: Refer to the attached fabrication diagram

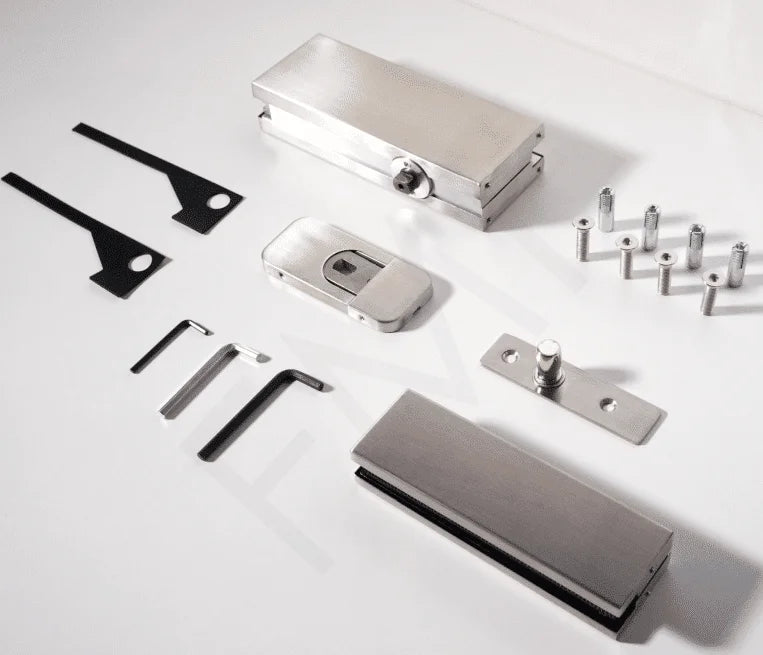

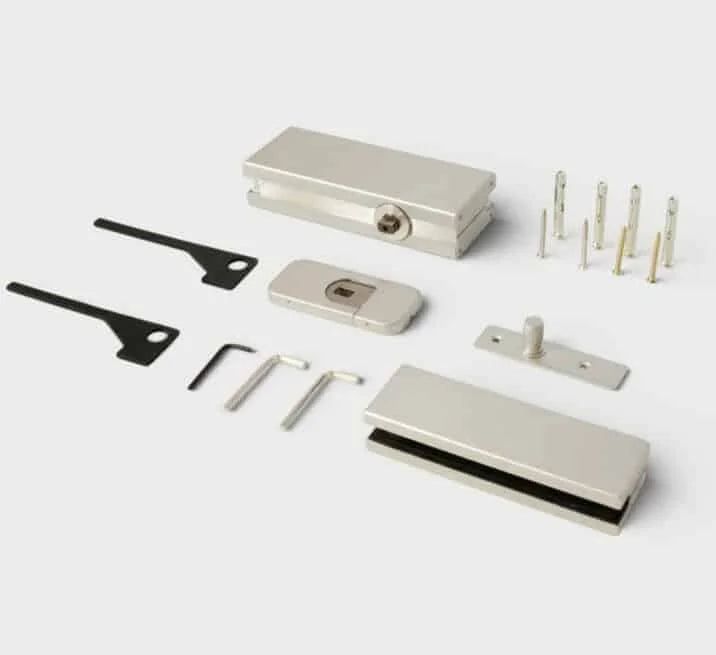

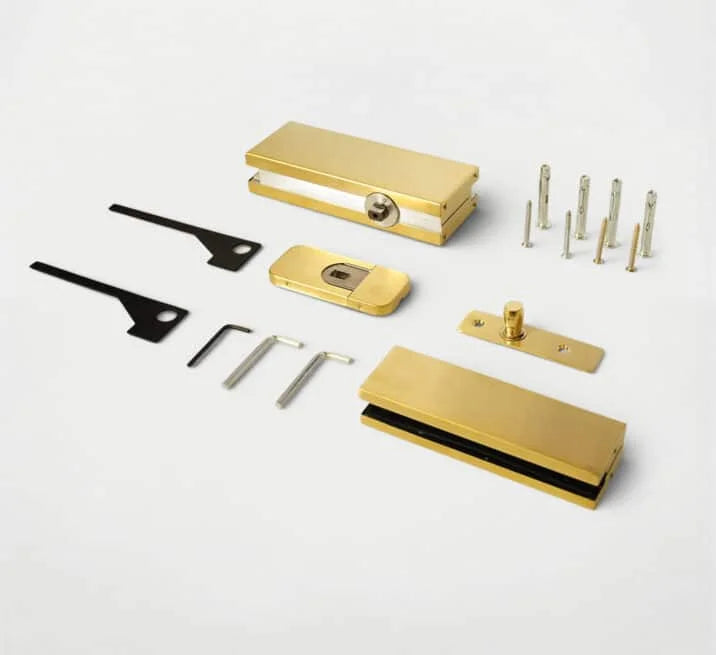

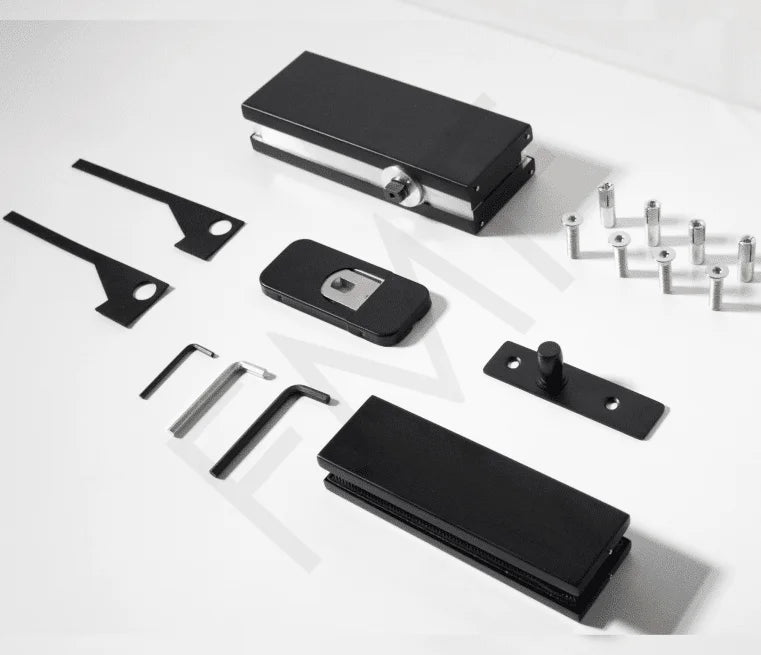

Kit Includes:
- 1 × HYP-80 Hydraulic Hinge
- 1 × PAT-02 Top Patch Fitting
- 1 × PAT-PIN Pivot Pin

Included Accessories:
- Screws and bolts
- Gaskets (for 10mm tempered glass)
- Allen wrench
- Fabrication diagram
- Installation instructions

Additional Details:
- Function: Opens and holds glass doors at 90°, with adjustable self-closing speed
- Warranty: Limited 1-year warranty
- Shipping: Ships via third-party courier service
