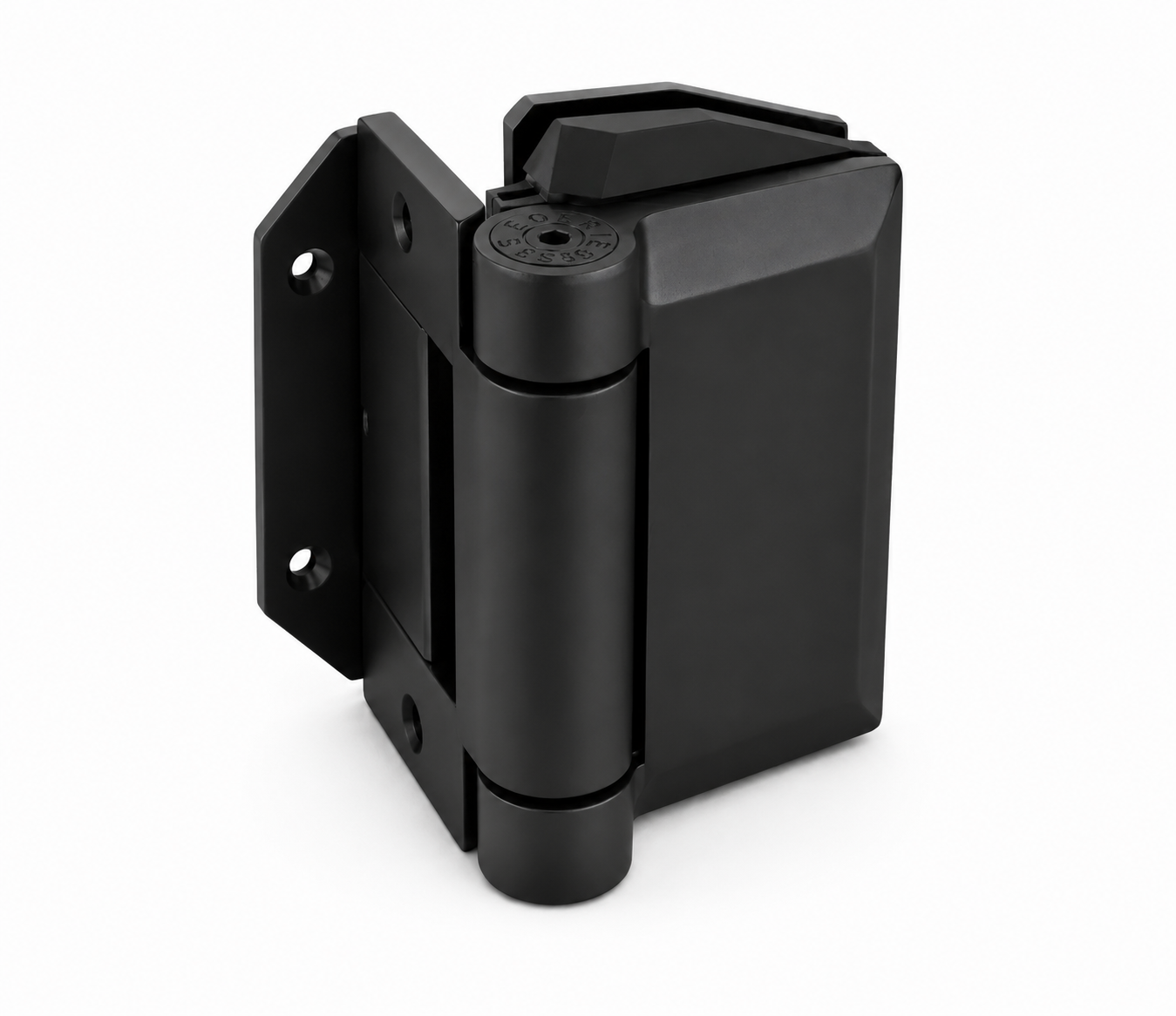

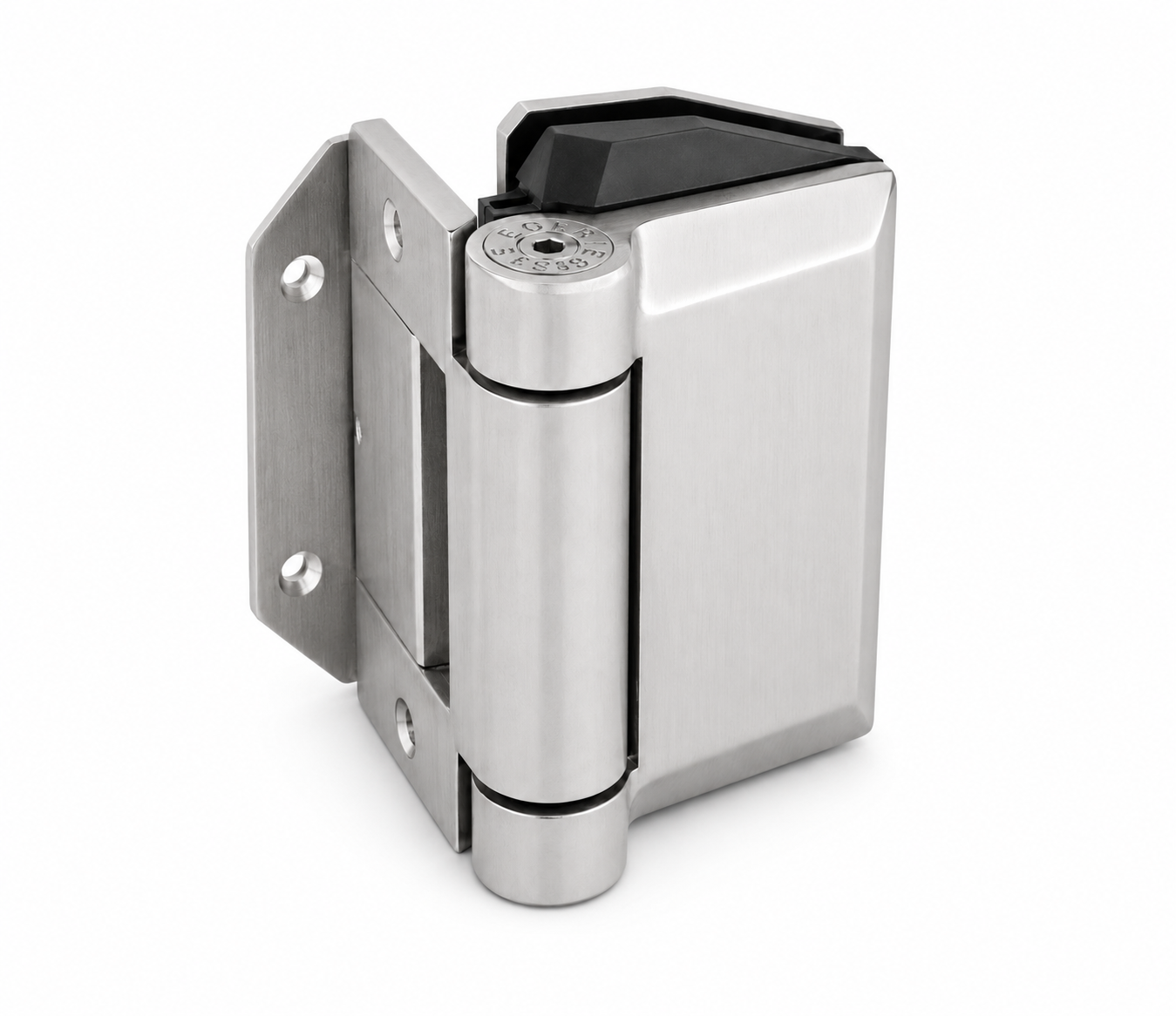

Elite Glass-to-Wall Soft-Close Pool Gate Hinge (Pair)

Hang a frameless glass pool gate from a wall or solid post with this pair of Elite self-closing hinges. They close the gate on its own from any open position, and the soft-close action stops it slamming into the latch. Made from 2205 duplex stainless steel, which is stronger and more corrosion-resistant than 316, they're built for chlorinated and saltwater pools and coastal sites.

Key Features

• Glass-to-wall – the gate hangs from a wall or solid post
• Self-closing from any open position, with soft-close so the gate doesn't slam
• Adjustable closing speed – tune it to the gate's size and weight on site
• Safety caps and no-foot-hold gaskets so children can't use the hinge as a step
• 2205 duplex stainless – for poolside, saltwater and coastal installs
• Brushed Stainless or Matte Black, sold as a pair

Specifications

• Model: POLG-300
• Configuration: Glass-to-wall (gate to wall or solid post)
• Material: 2205 duplex stainless steel
• Finishes: Brushed Stainless (.SS), Matte Black (.BL)
• Closing action: Self-closing from any open position, with soft-close
• Closing speed: Adjustable
• Sold as: Pair (2 hinges per gate)
• In the box: 2 hinges, safety caps, no-foot-hold gaskets
• Use: Interior and exterior

Installation Notes

• Fasten the wall side into solid masonry, concrete or blocking.
• Glass holes/cut-outs must be made before the glass is tempered – follow the FMF glass fabrication drawing.
• Pool gates must also be self-latching: pair these hinges with a glass fence lock.
• Check your local pool-enclosure bylaw for gate height, swing direction and latch height.

Pairs well with: Glass fence locks, Elite Glass-to-Glass Soft-Close Pool Gate Hinge (POLG-303) for glass-side gates.
