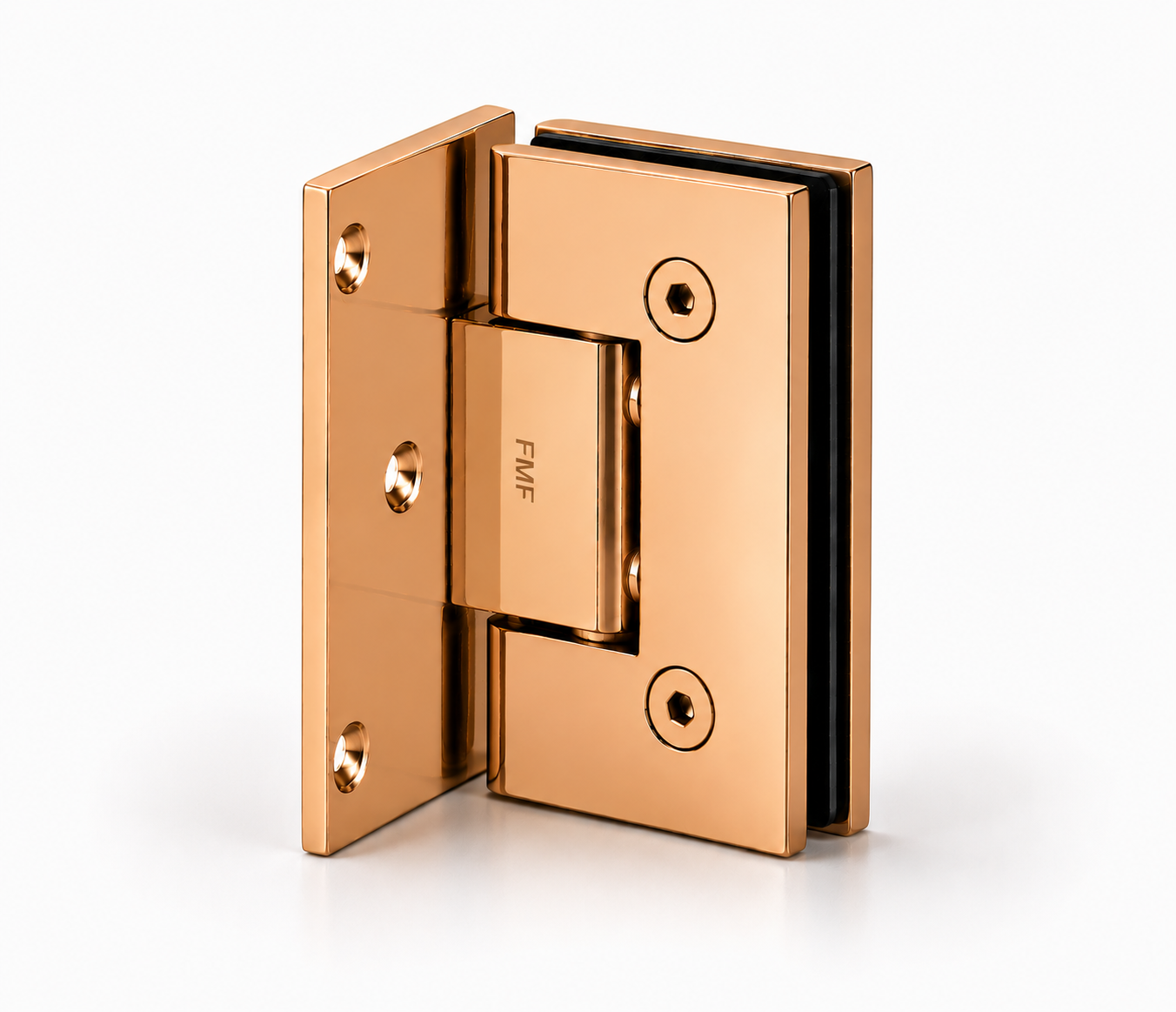

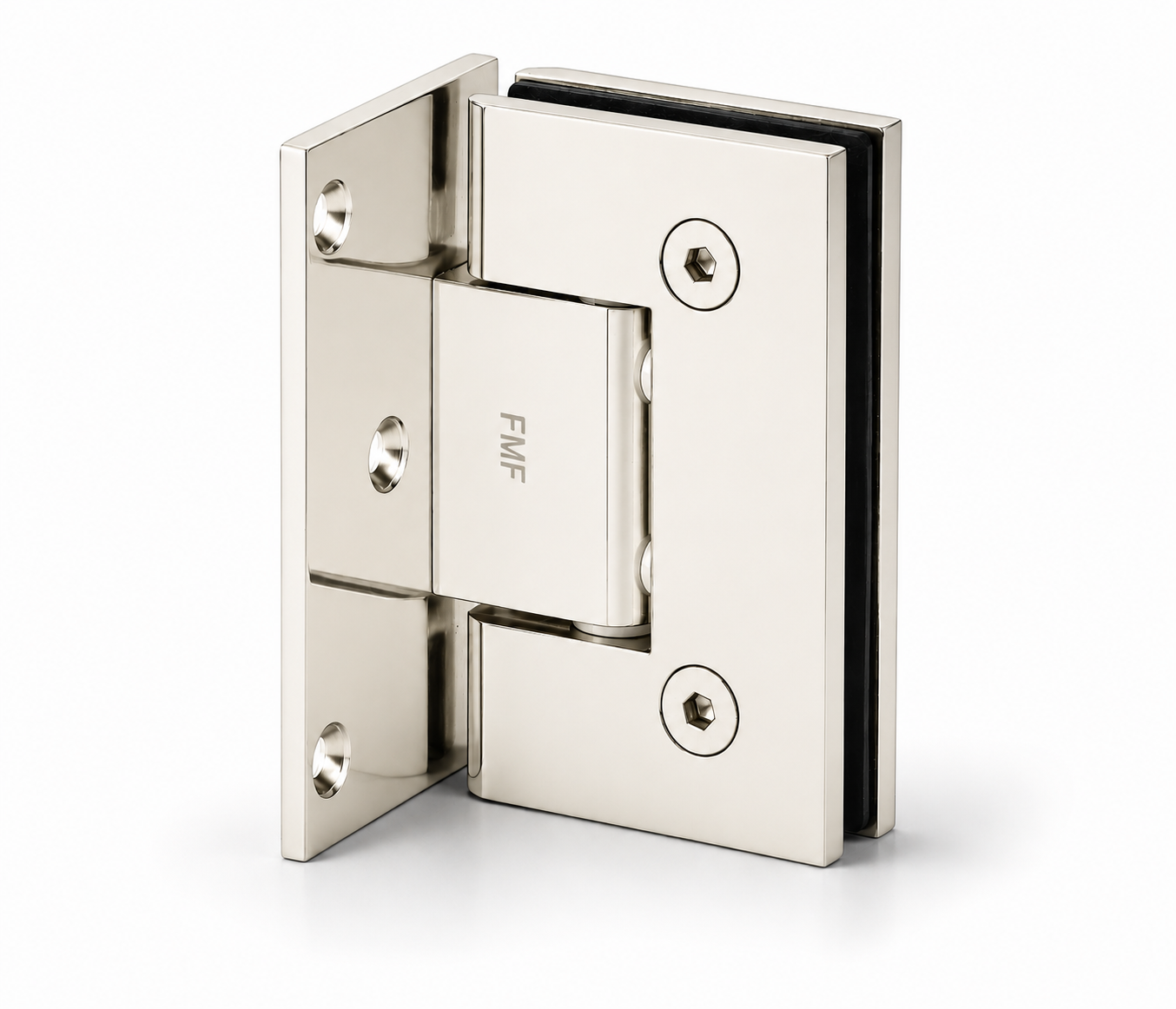

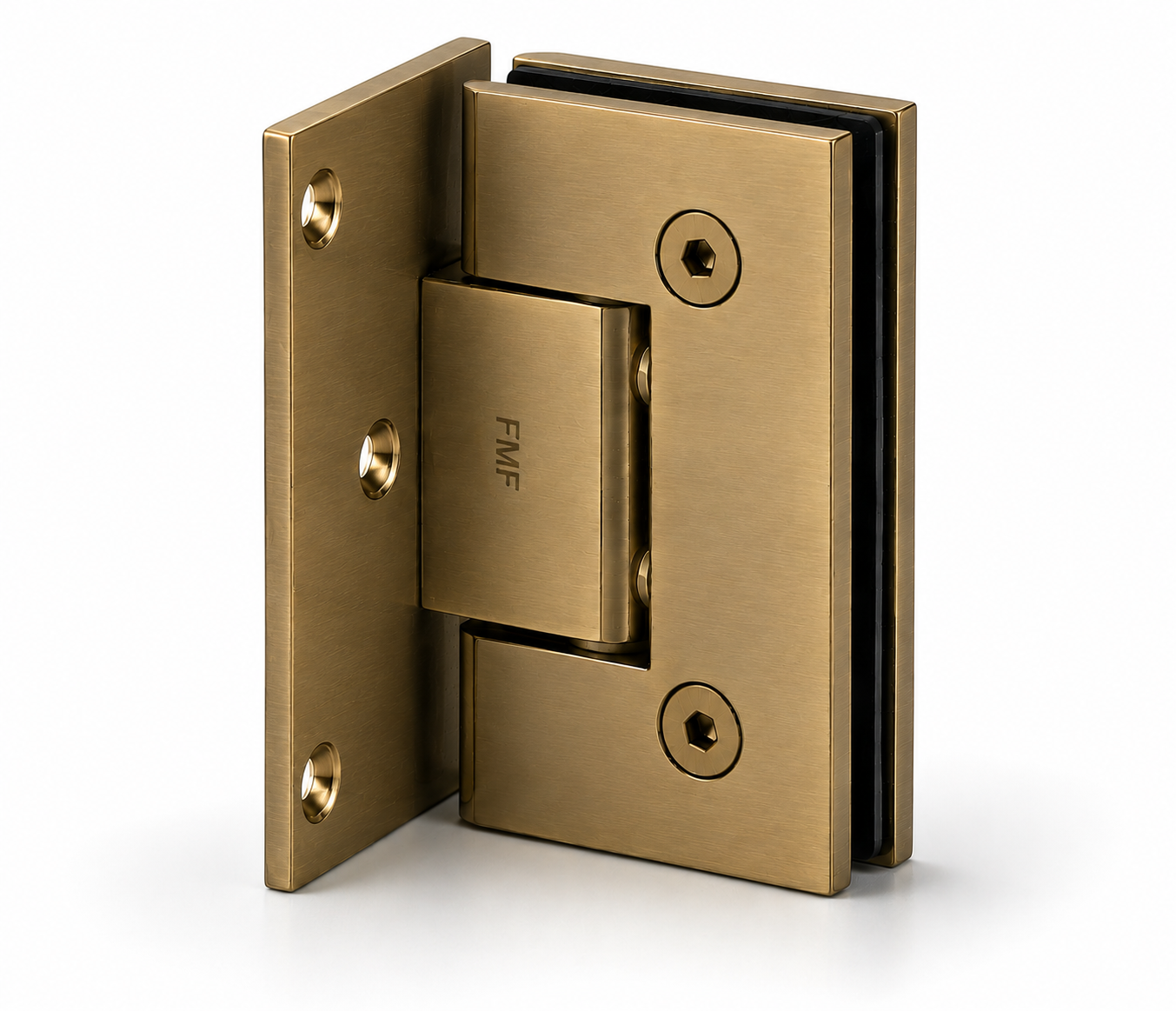

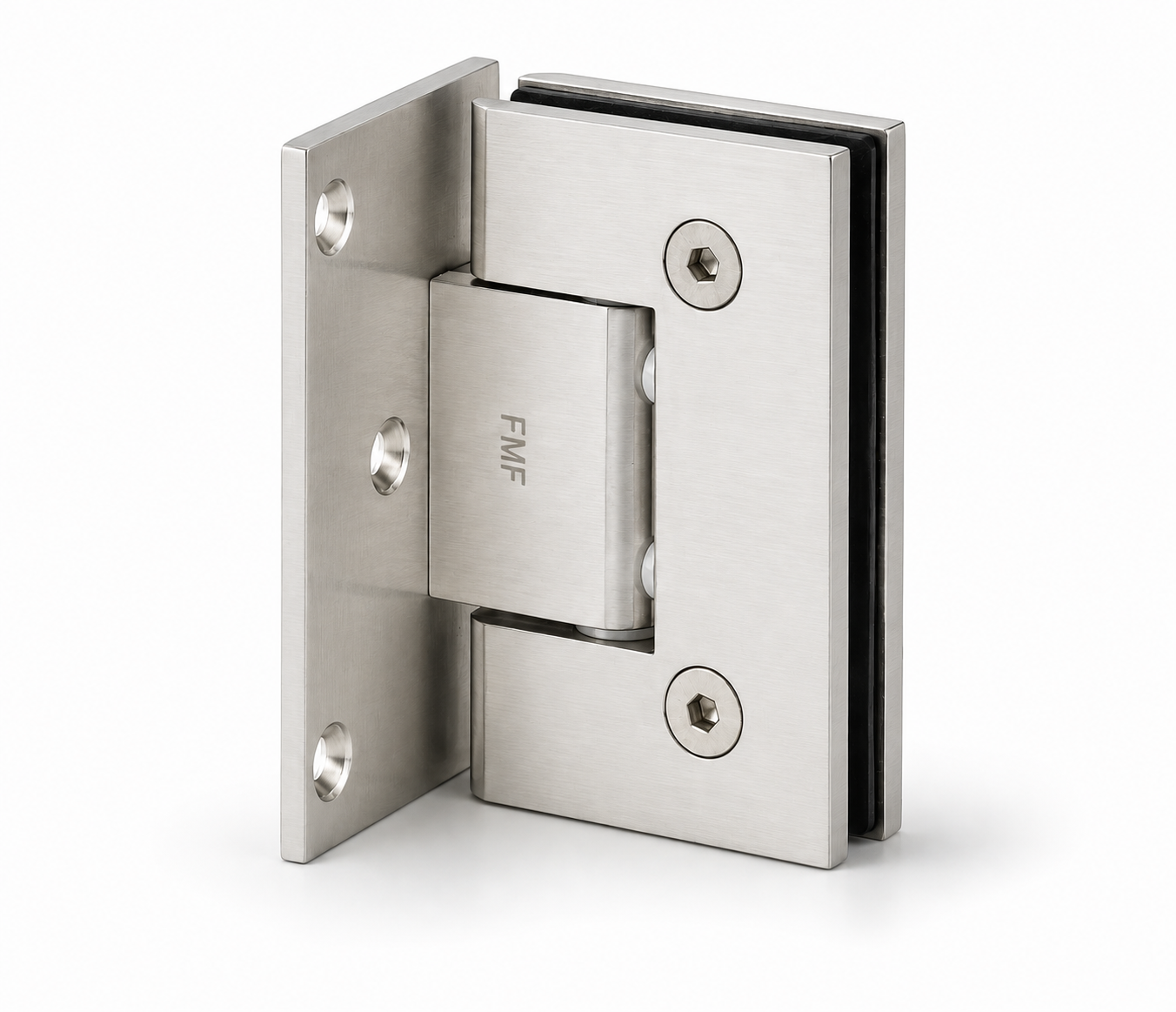

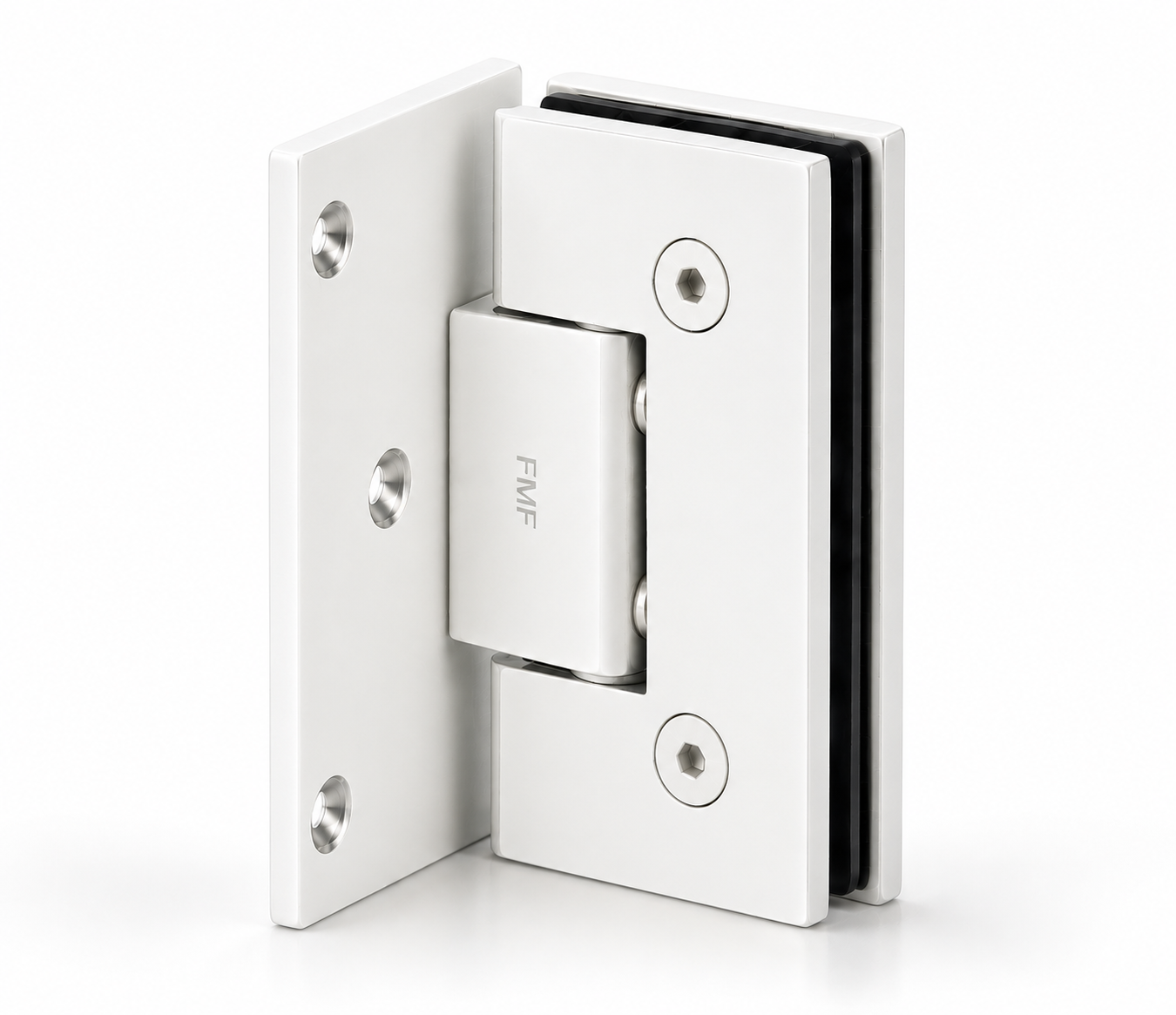

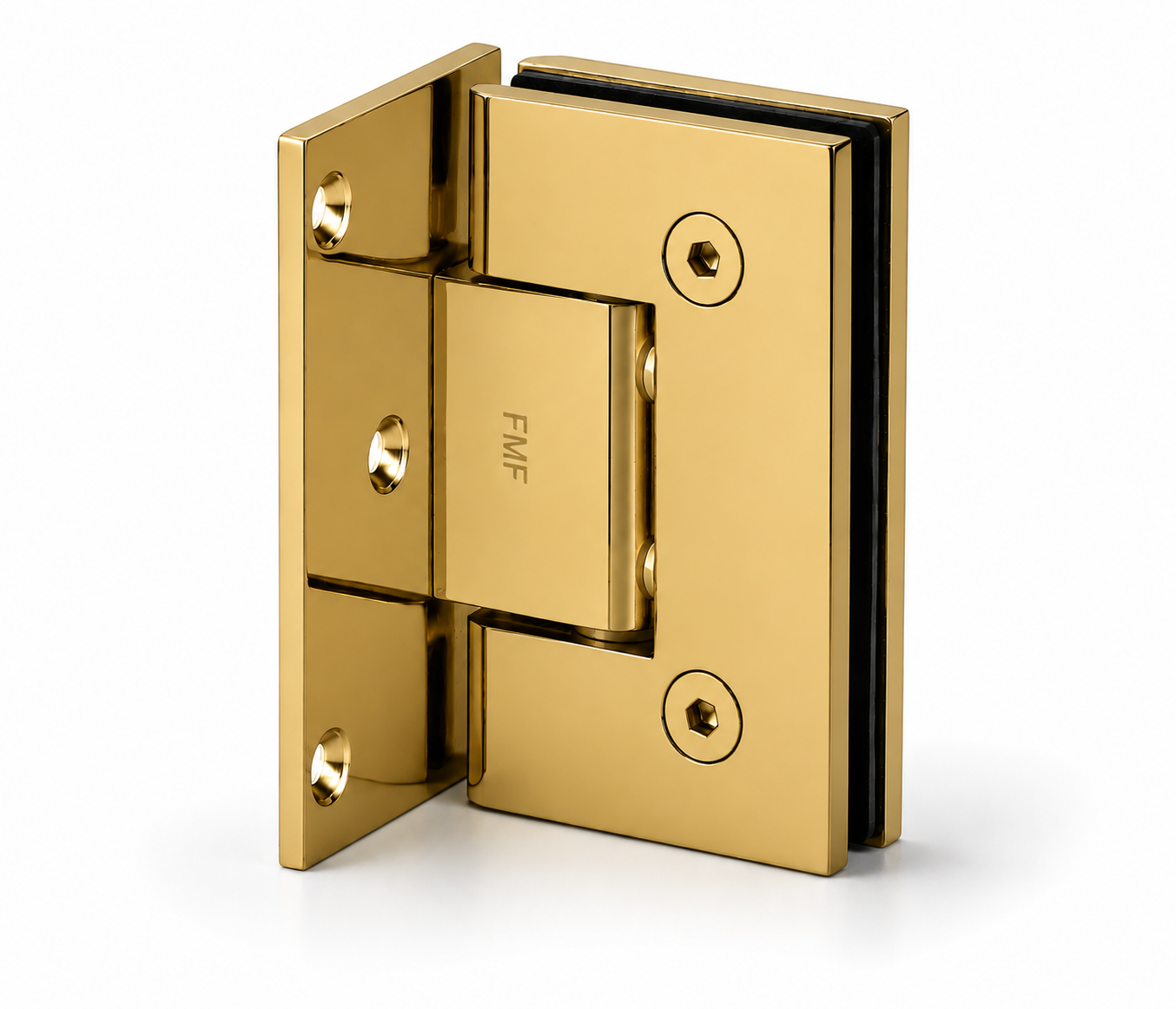

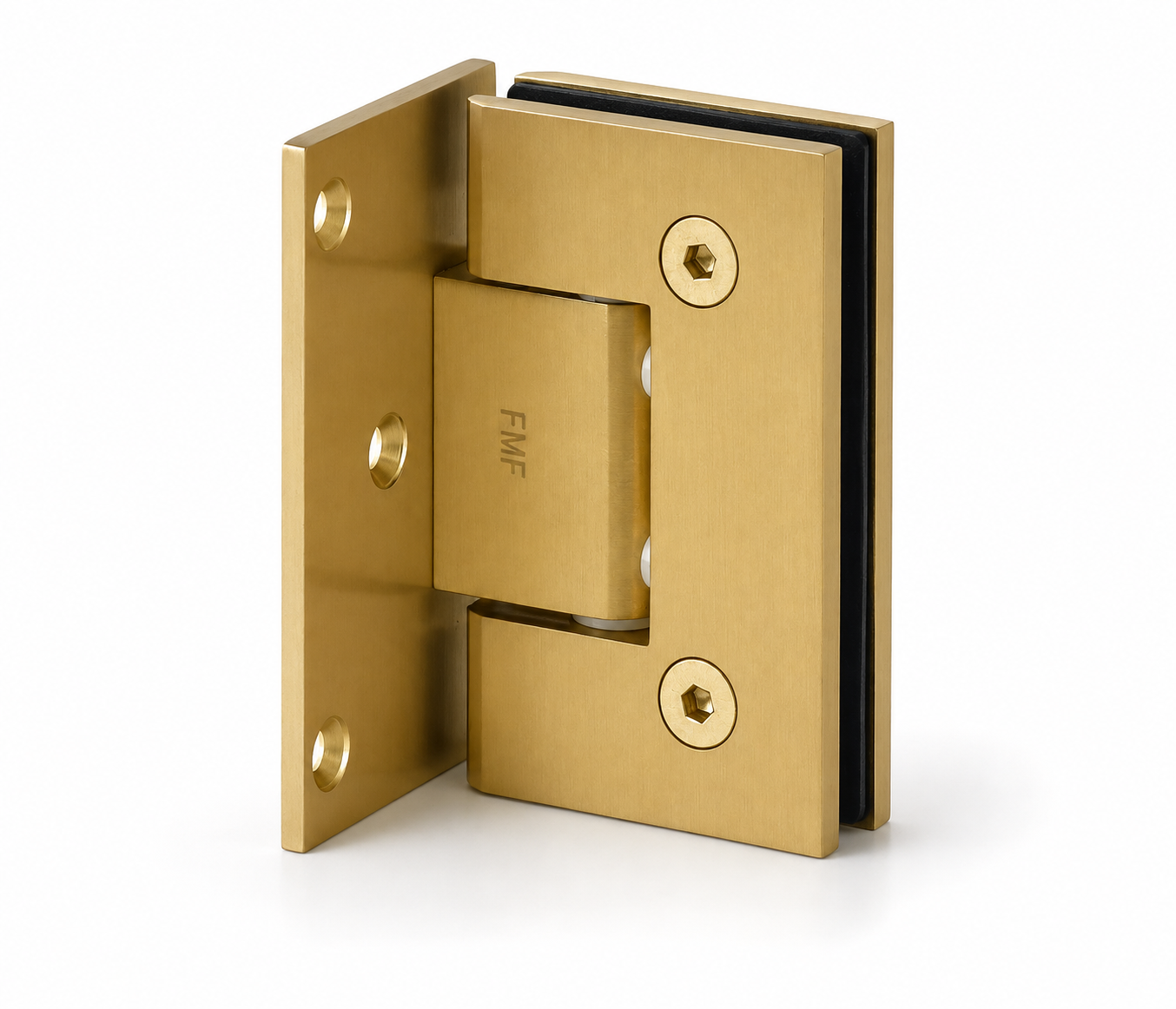

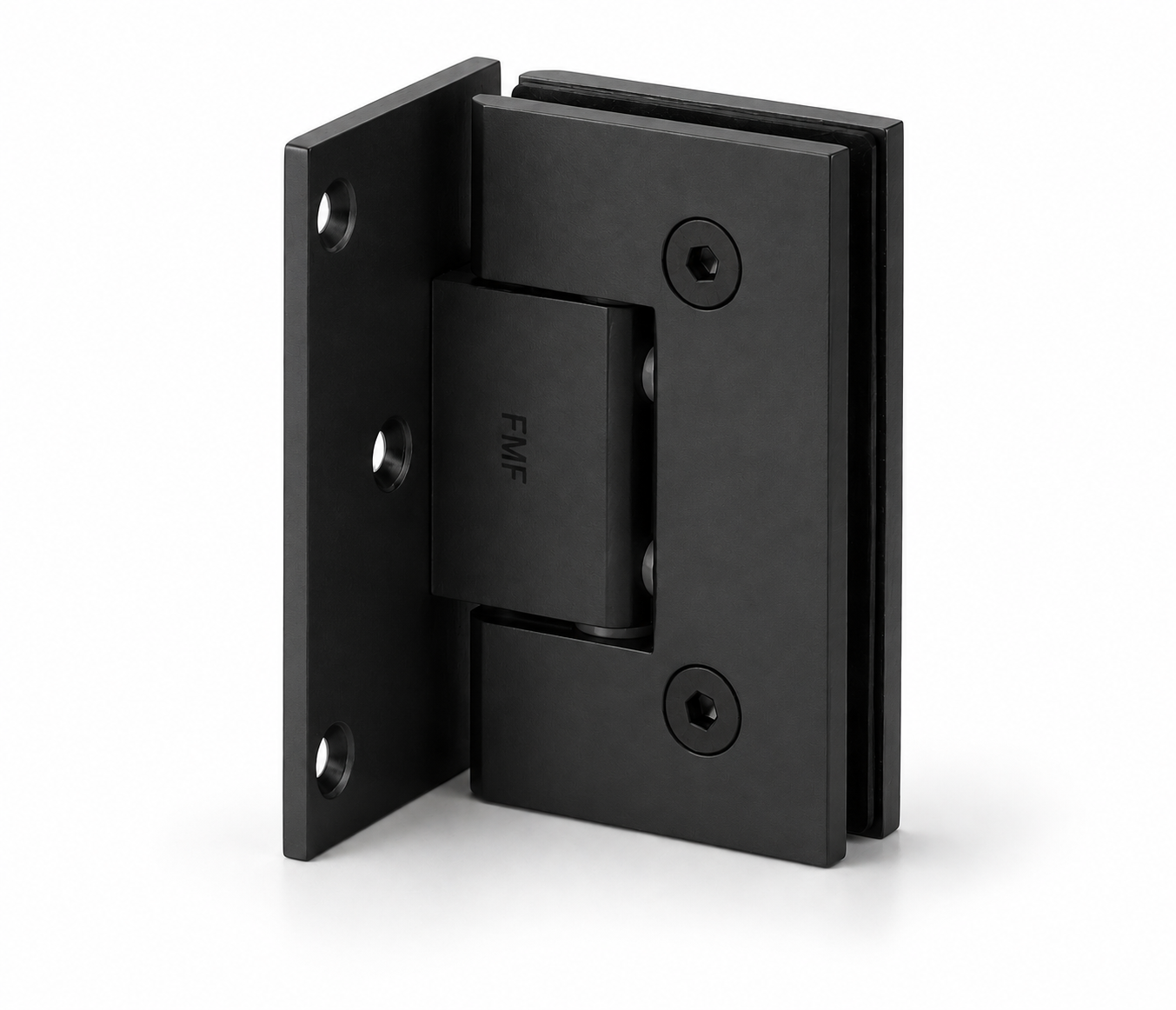

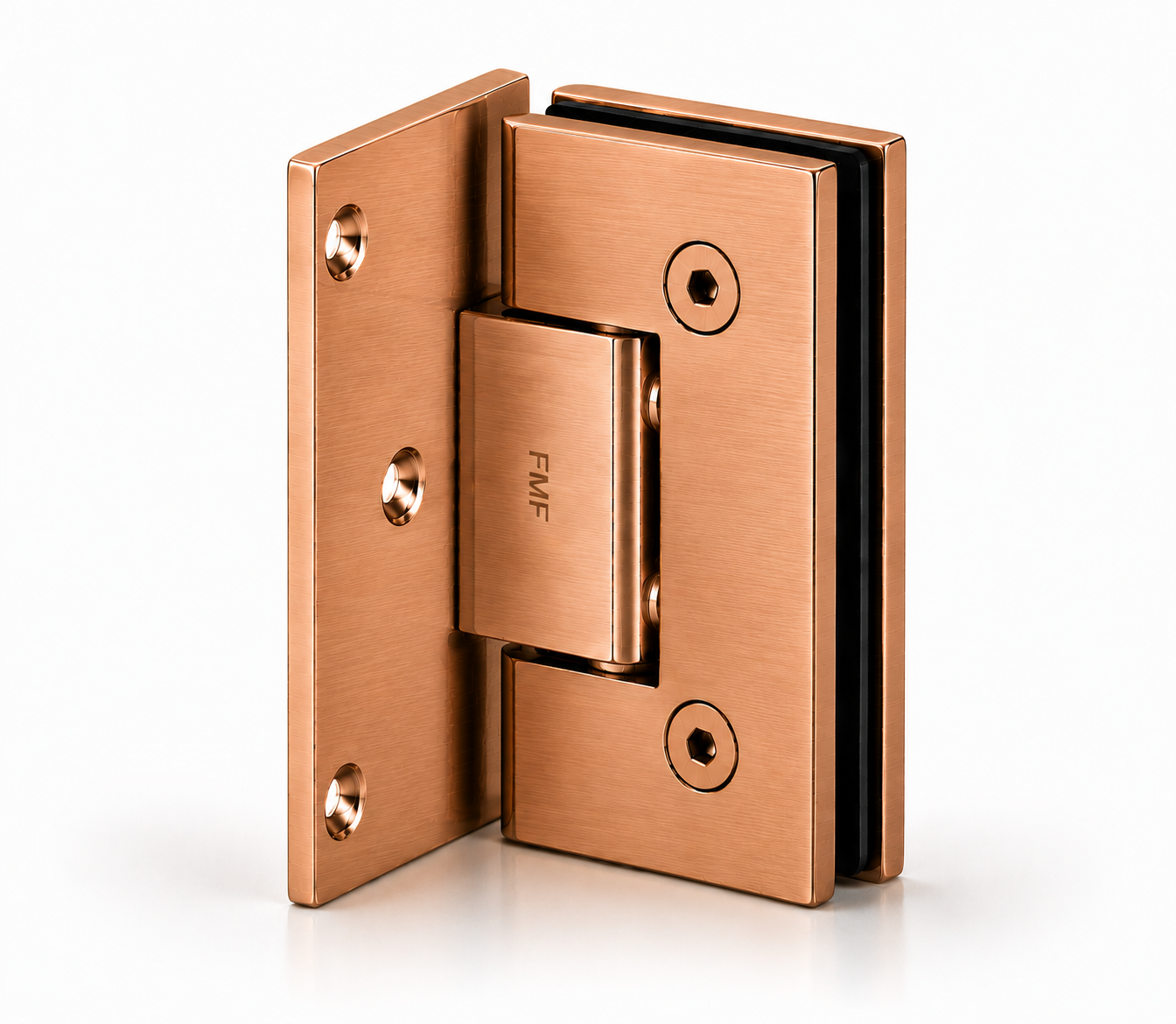

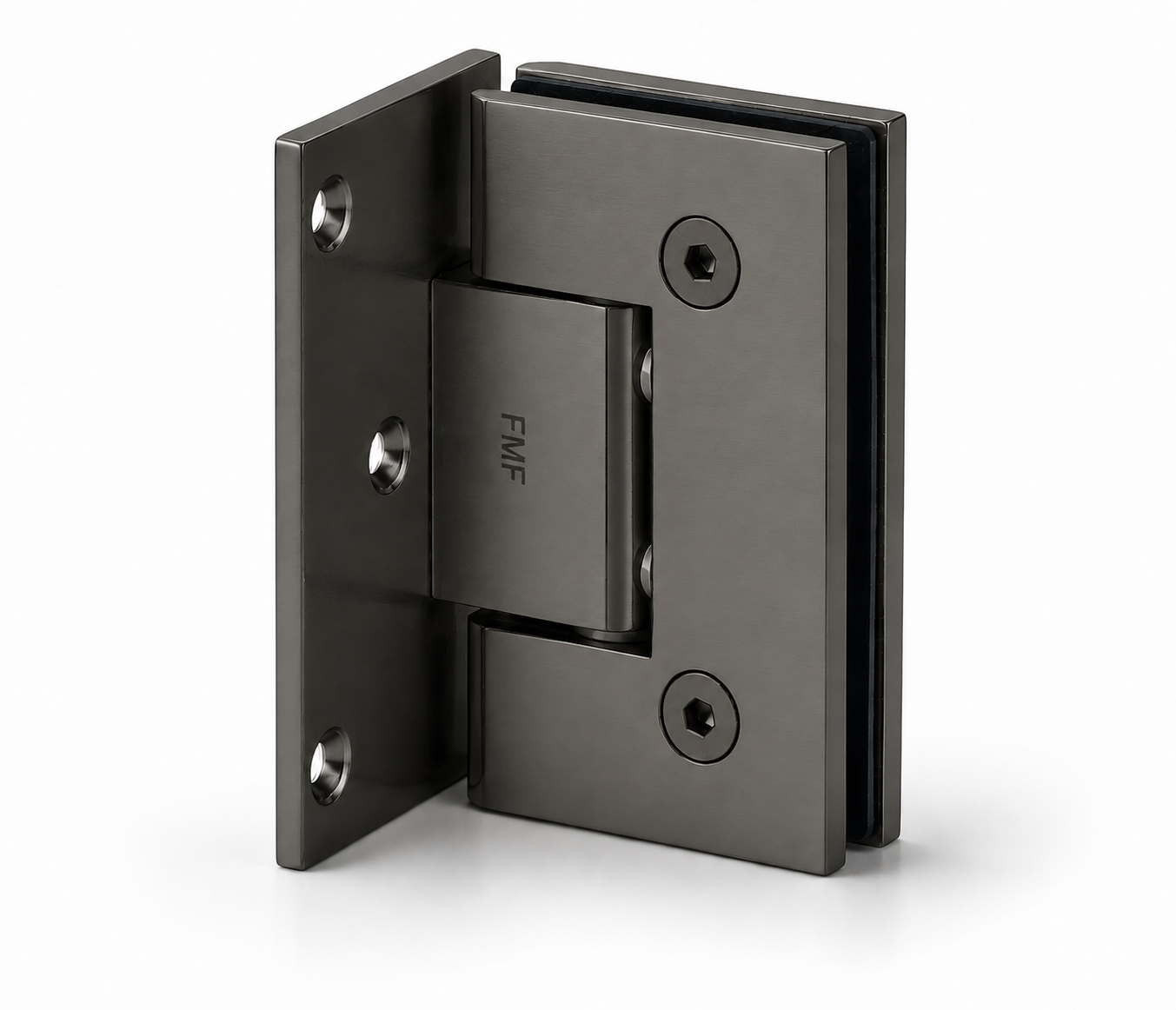

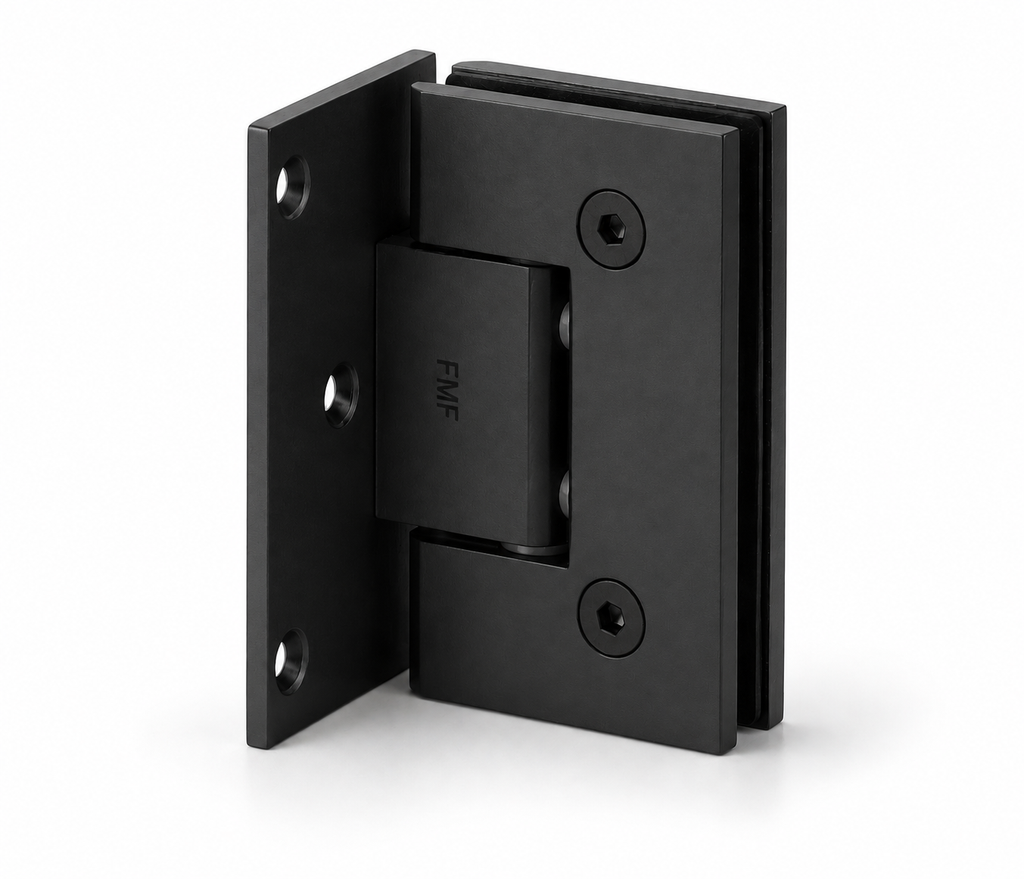

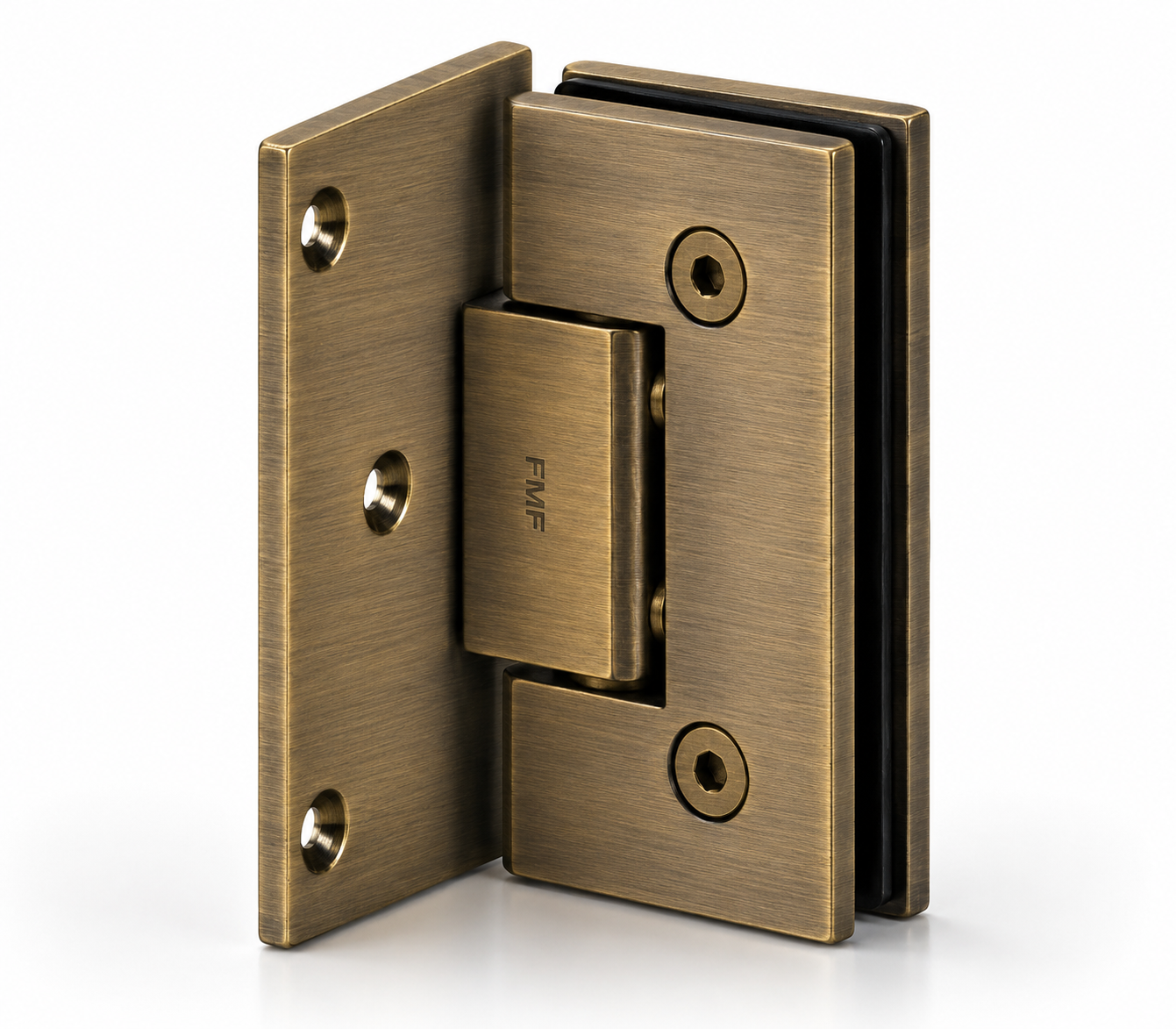

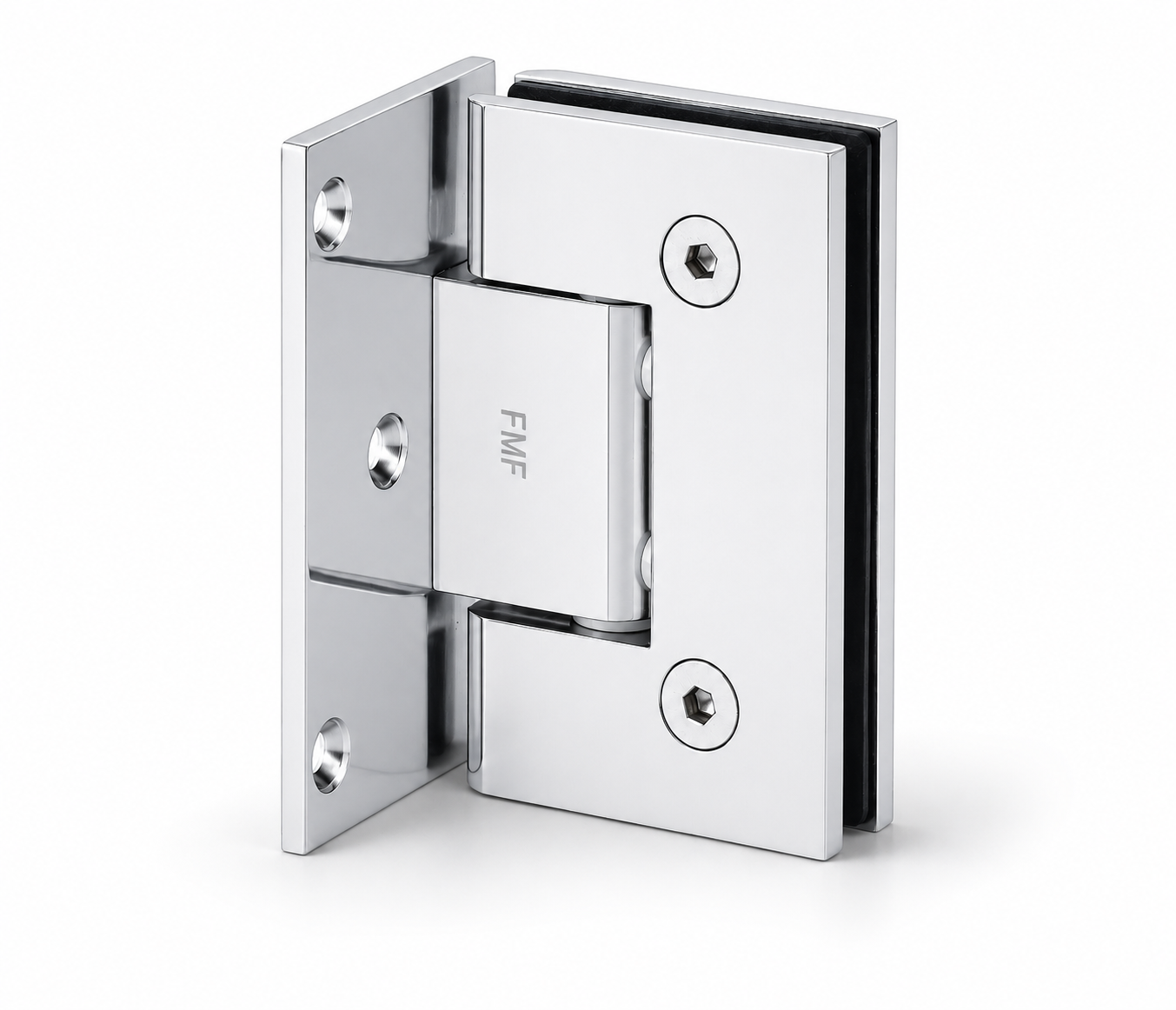

90° Offset Wall Mount Hinge

The Offset Wall Mount Hinge is designed for frameless shower door installations where adjustability, strength, and clean design are essential. Made from solid brass and engineered for tempered safety glass.

Key Features:

• Designed for 5/16" to 1/2" (8 to 12 mm) tempered safety glass
• Suitable for frameless glass-to-wall shower door applications
• Constructed from solid brass for strength and durability
• Available in multiple elegant finishes
• Cut-out required for installation
• Includes gaskets, screws, and glass fabrication dimensions
• Backed by a 3-year warranty

Strength and Durability:

• Maximum Door Weight - 2 Hinges: Supports up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm).
• Maximum Door Weight - 3 Hinges: Handles up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

Applications:

Ideal for frameless shower doors that mount directly to the wall.

FMF Glass Hardware ships shower door hinges and glass hardware across Canada and North America.
