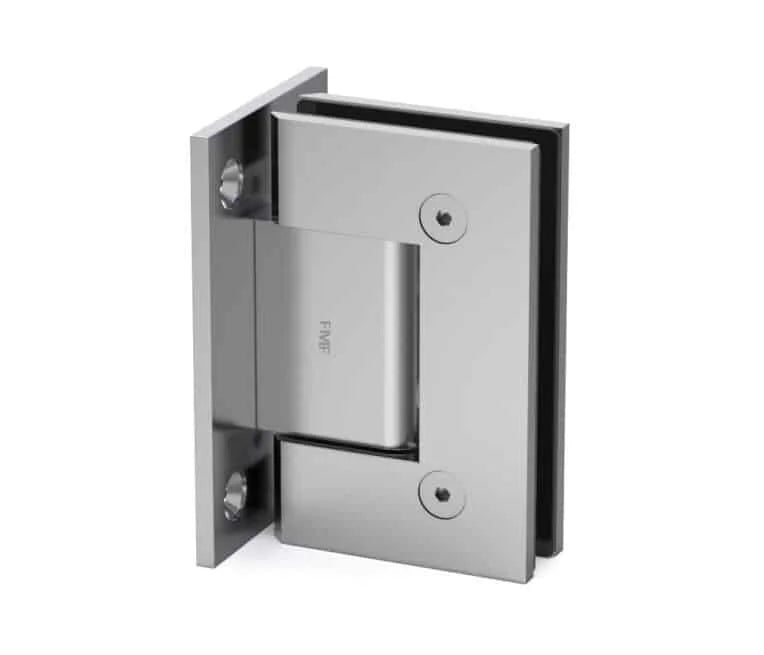

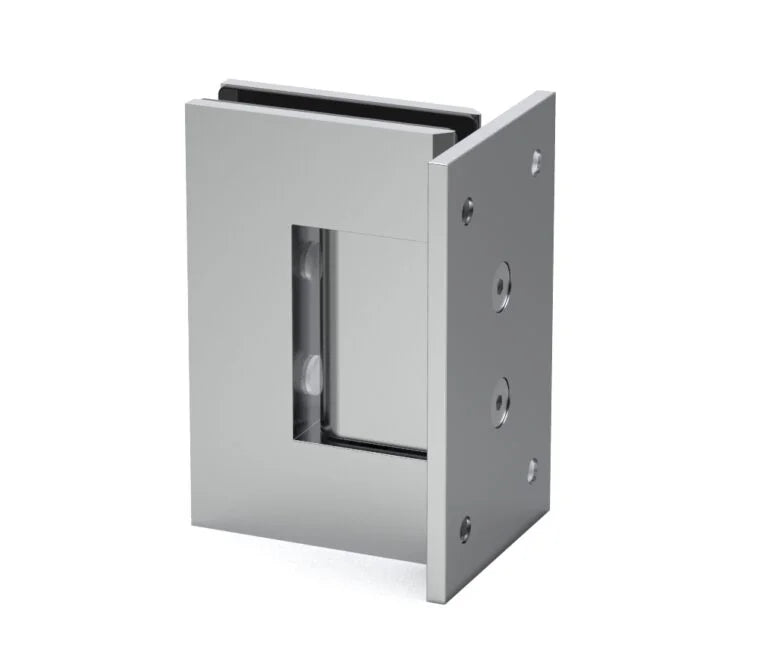

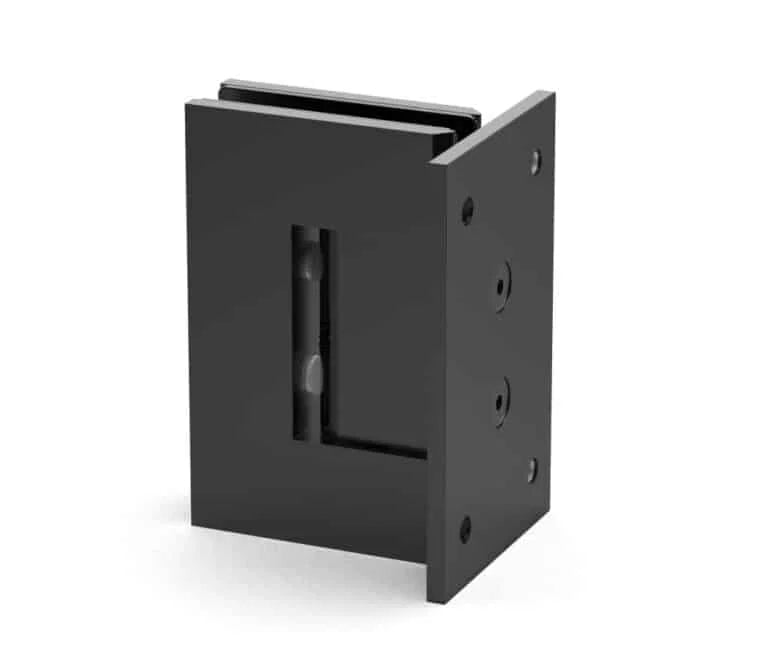

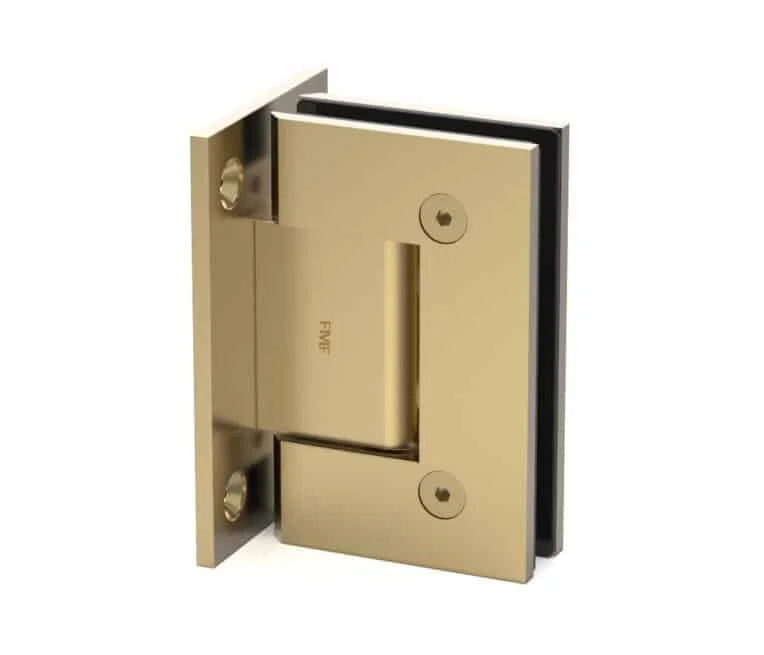

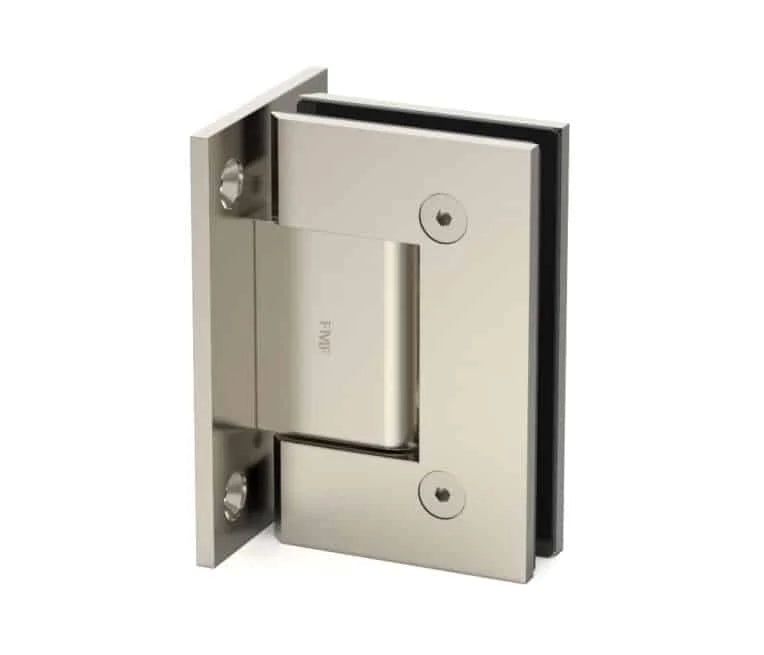

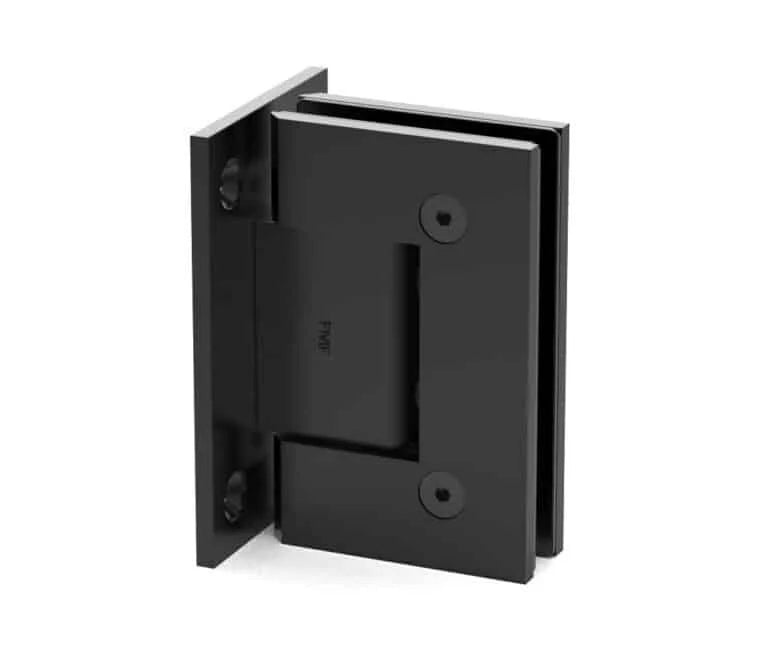

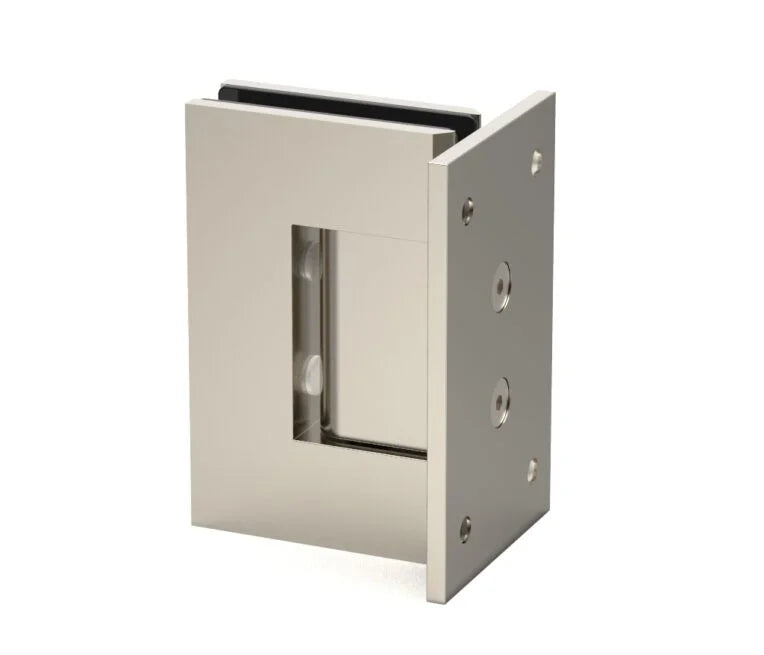

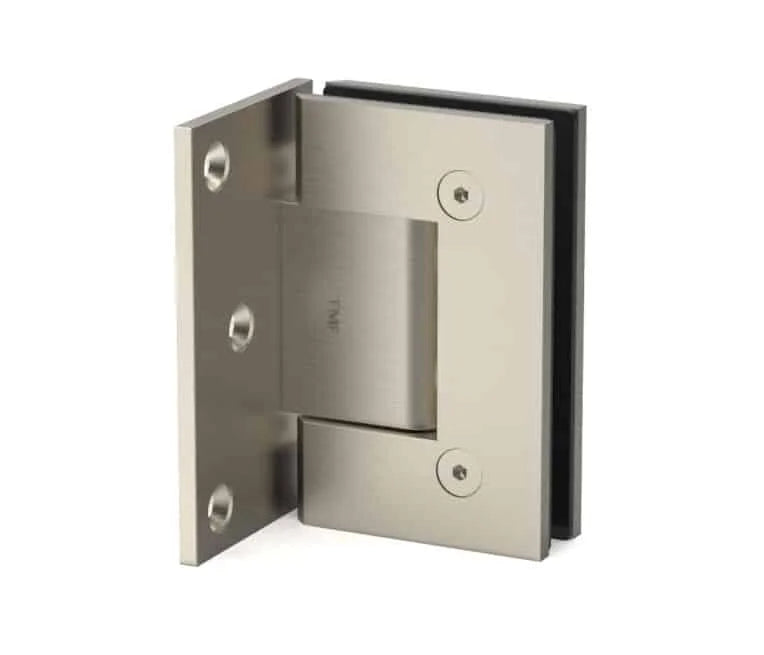

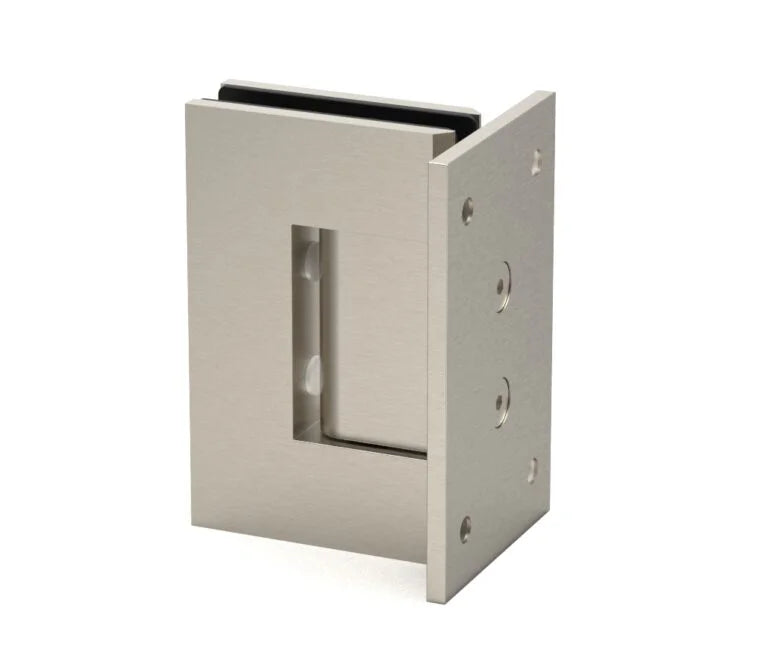

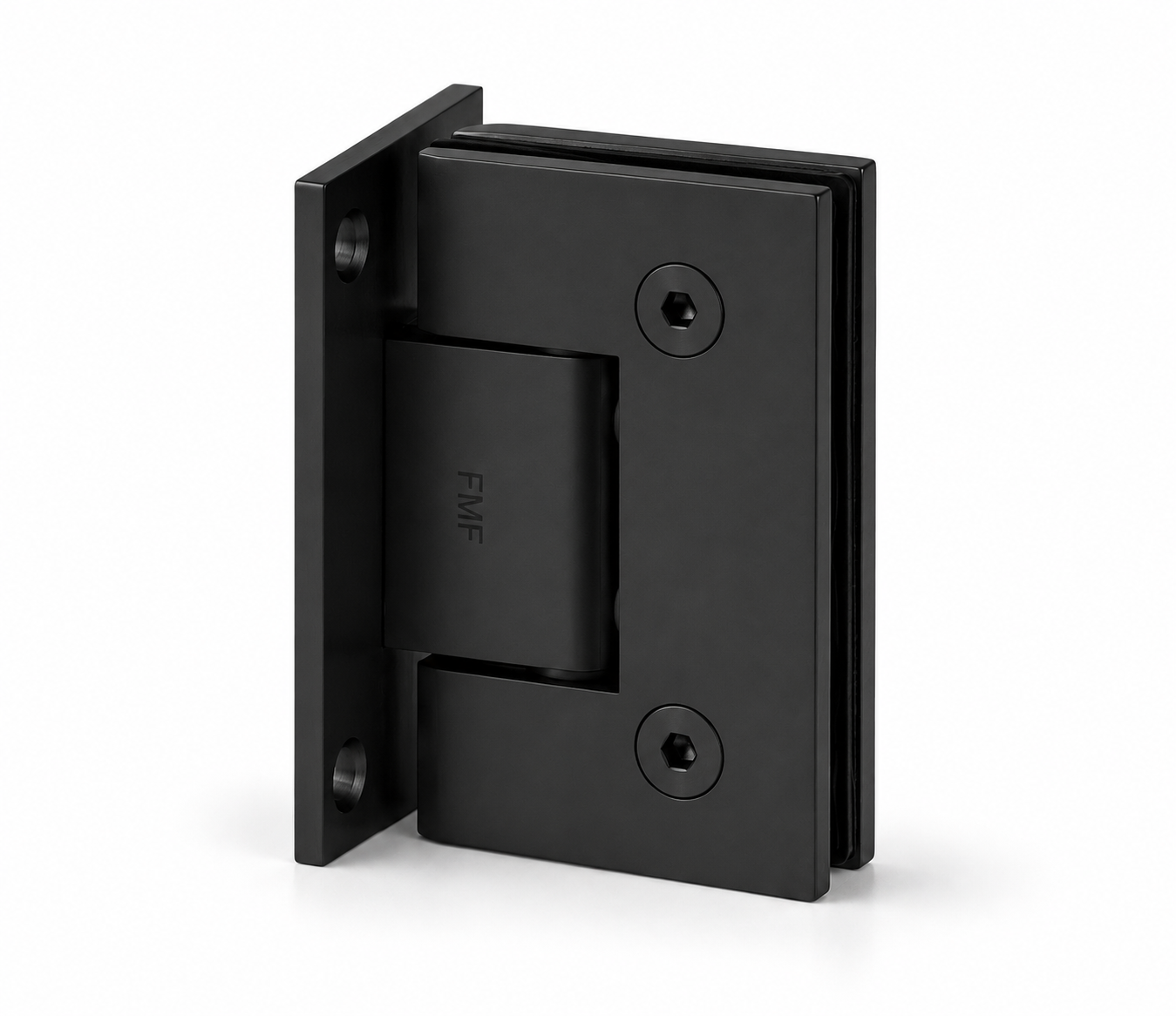

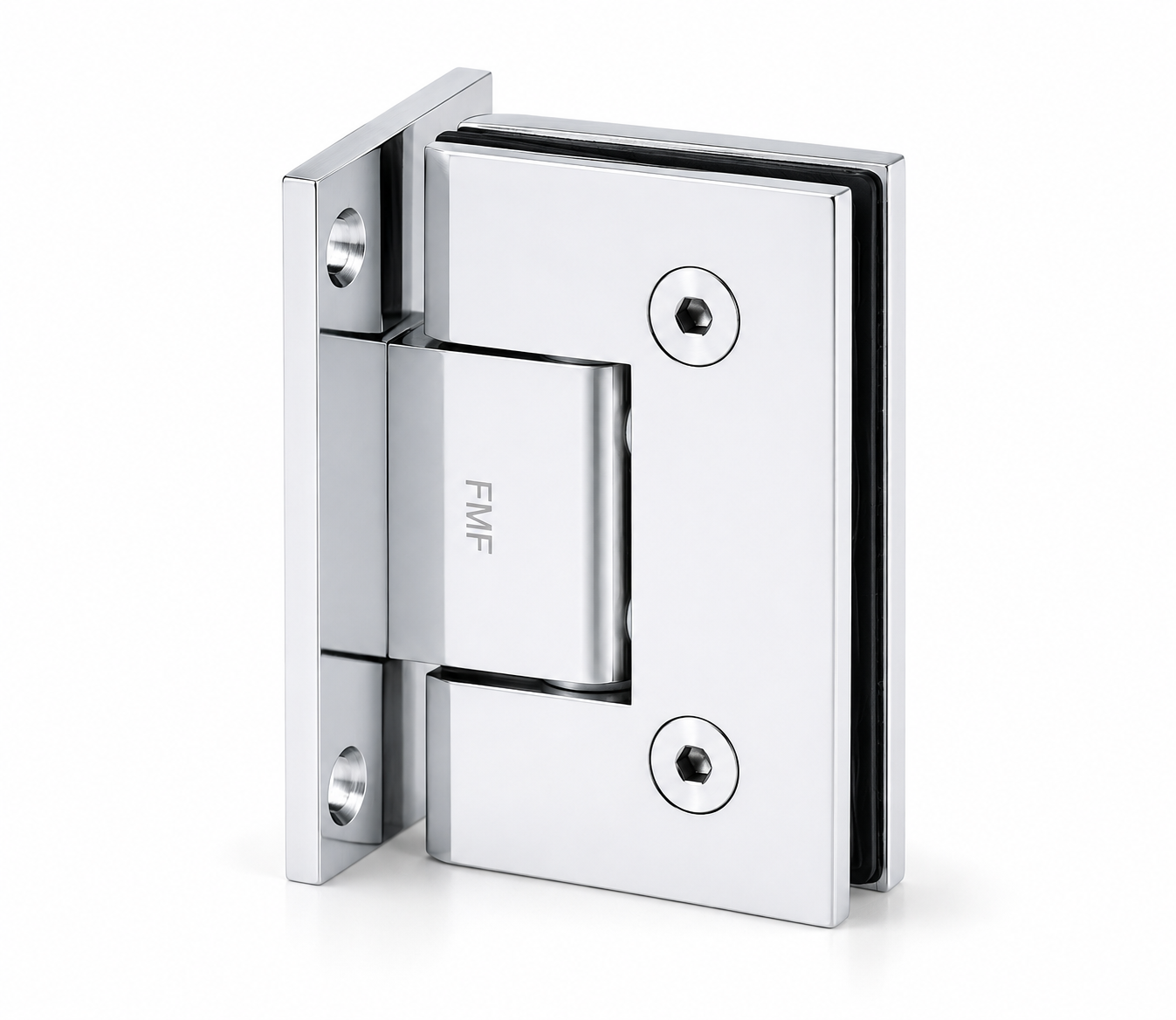

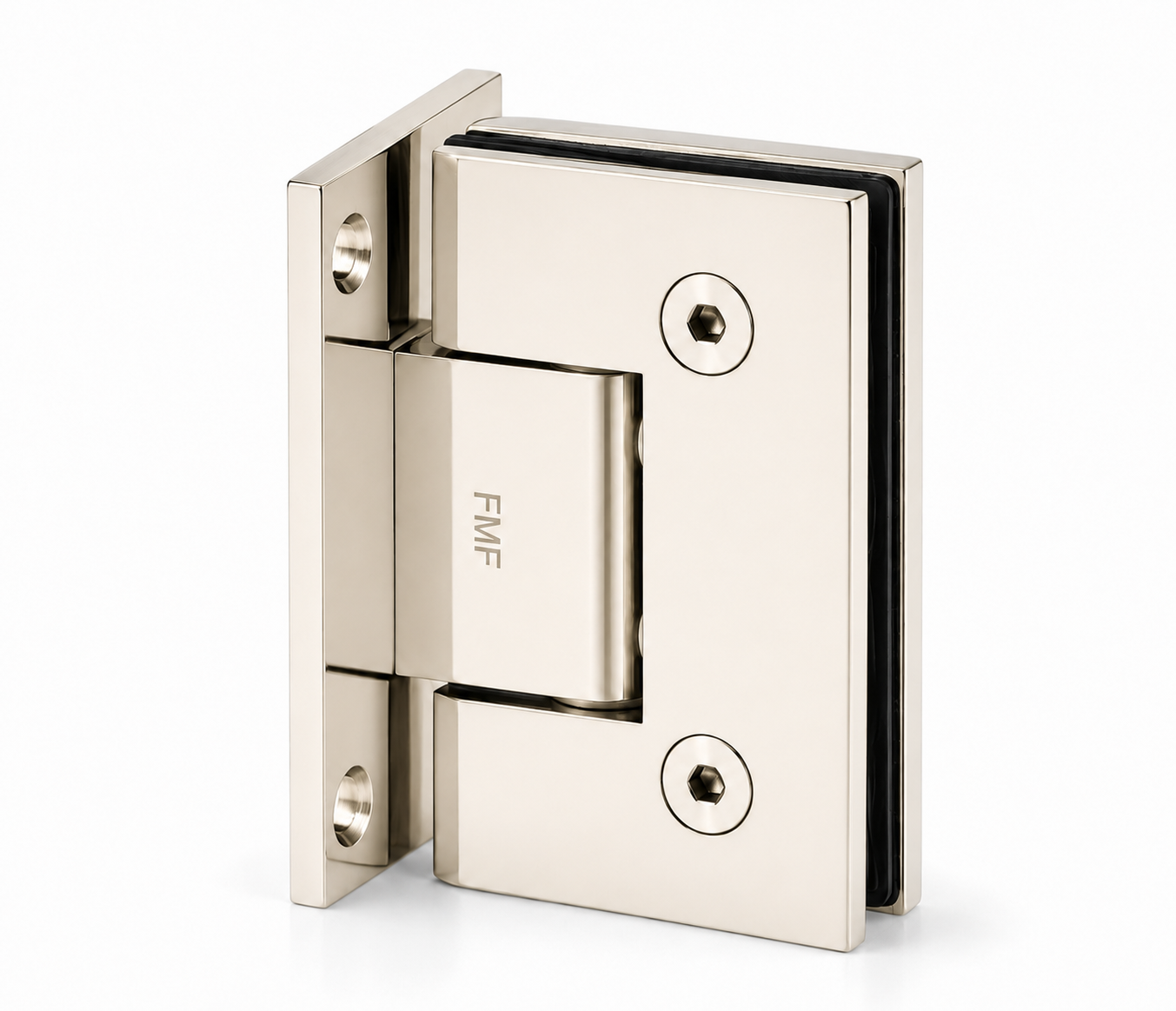

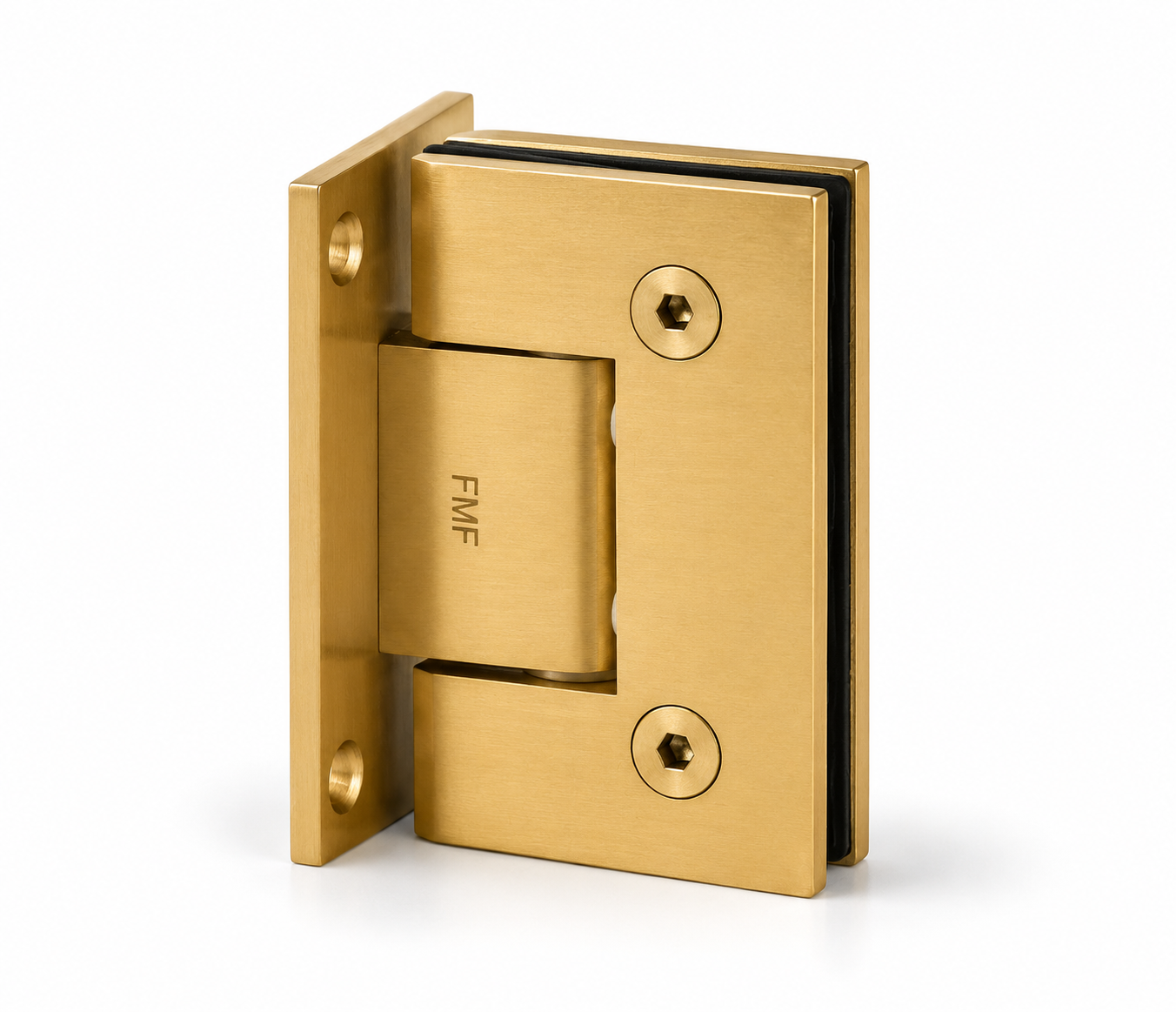

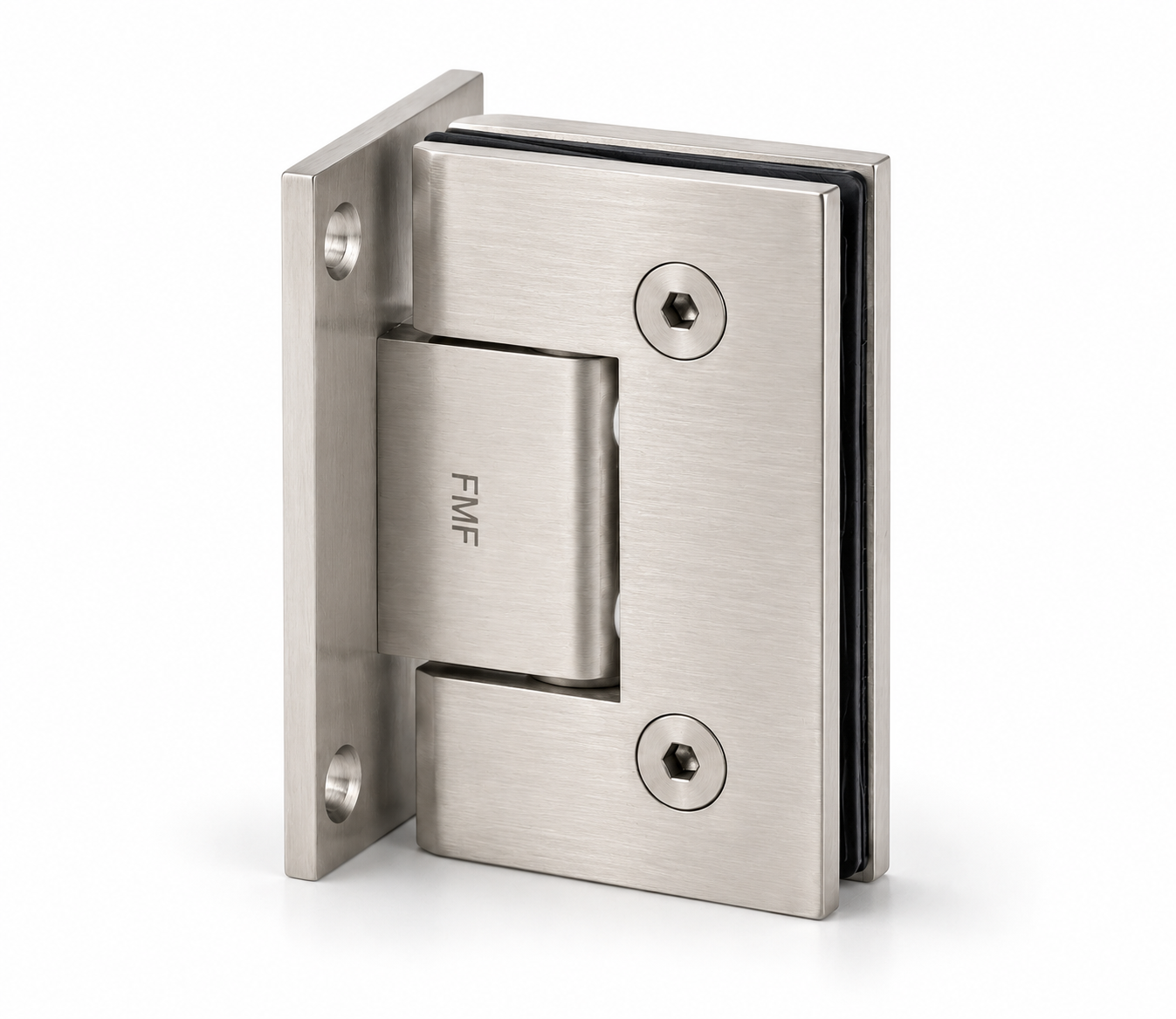

90° Full-Plate Wall Mount Hinge

The 90° Glass-to-Wall Hinge with Full Back-Plate is designed for frameless shower door installations where strength, stability, and clean alignment are required. Built from solid brass, this hinge is suitable for 10 to 12 mm tempered glass and provides smooth door movement with reliable self-centering action.

Key Features:

• Designed for 10 to 12 mm tempered glass
• Suitable for 90° glass-to-wall shower door applications
• Full back-plate design provides strong wall mounting support
• Constructed from solid brass for durability and long-lasting performance
• Swings 90° in and 90° out
• Self-centering within 15° of the closed position
• Cut-out required for installation
• Includes screws, anchors, Allen wrench, fabrication diagram, rubber gaskets, and PVC gaskets
• Backed by a limited 1-year warranty

Strength and Durability:

• Maximum Door Weight - 2 Hinges: Supports up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm).
• Maximum Door Weight - 3 Hinges: Handles up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

Applications:

Ideal for frameless shower doors mounted directly to a wall at a 90° angle. The full back-plate design offers added mounting support, making it a dependable choice for residential and commercial shower enclosure projects.
