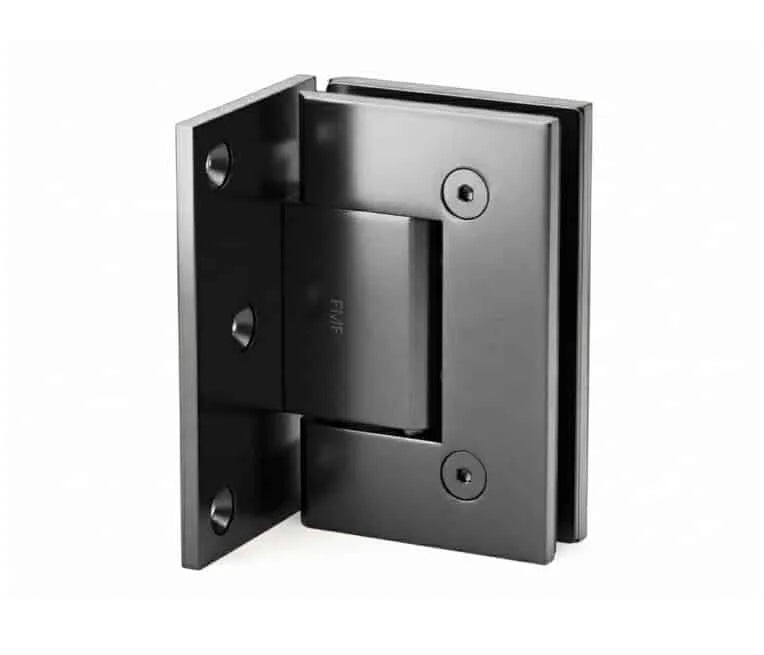

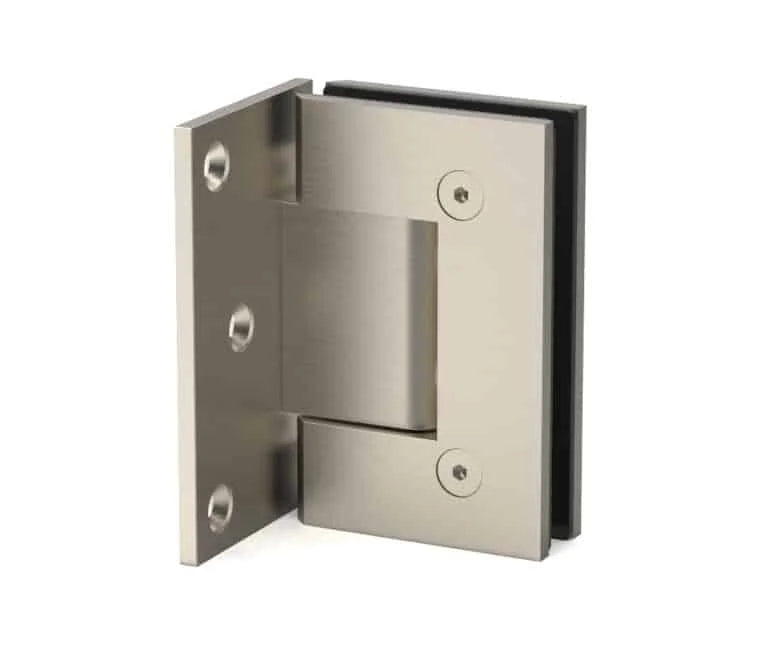

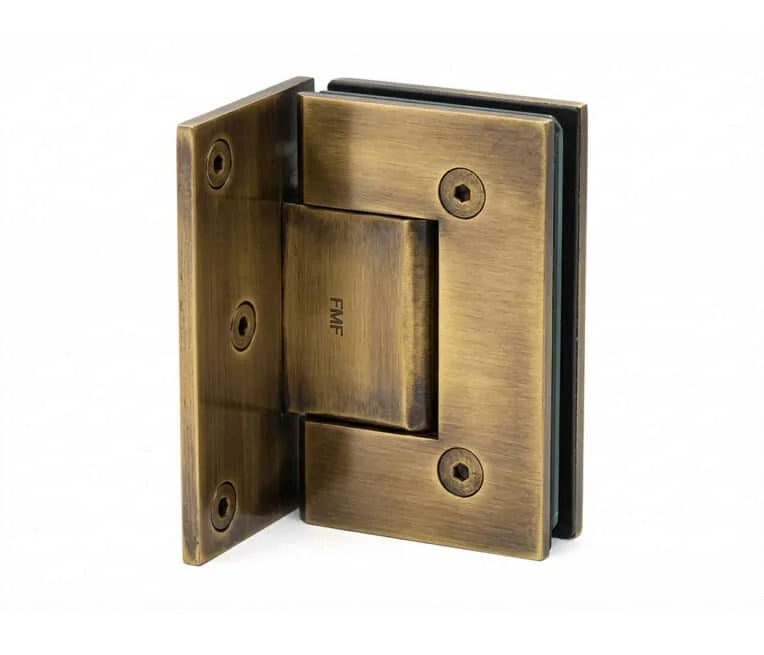

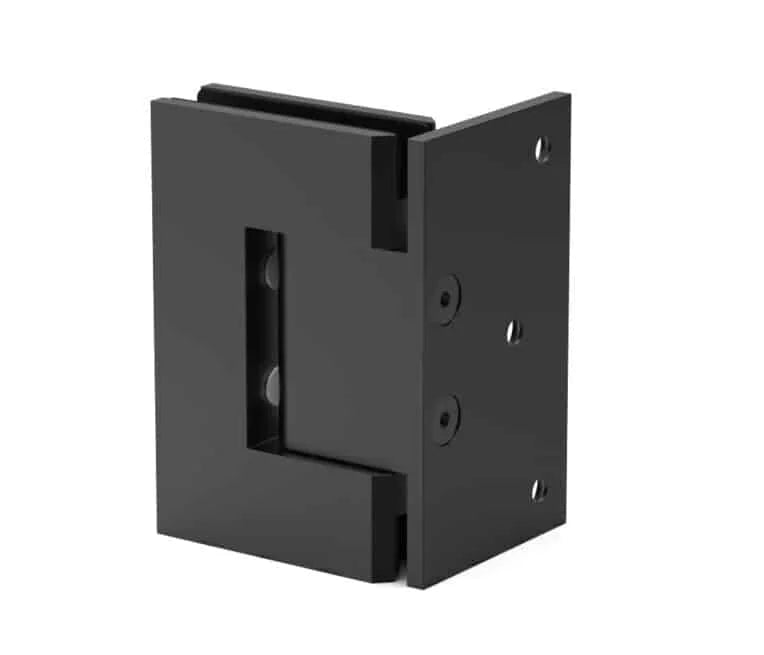

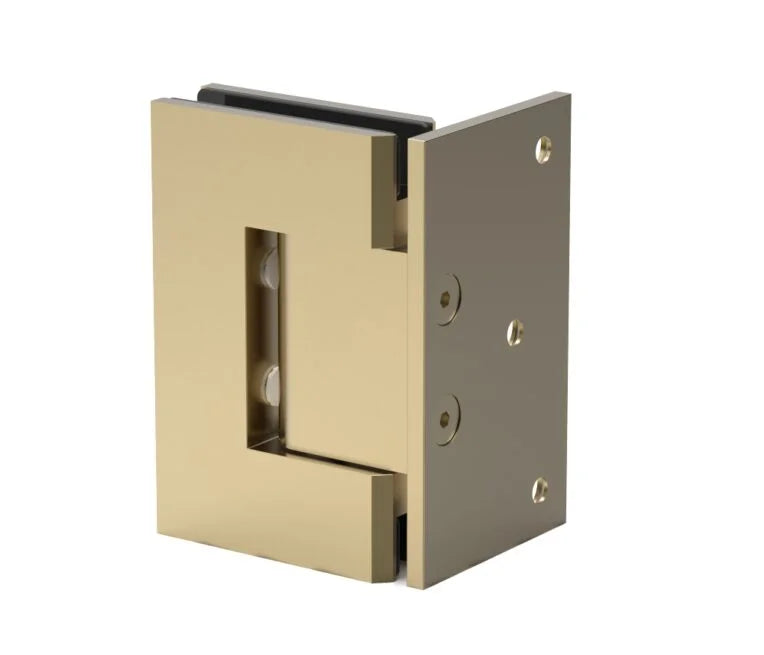

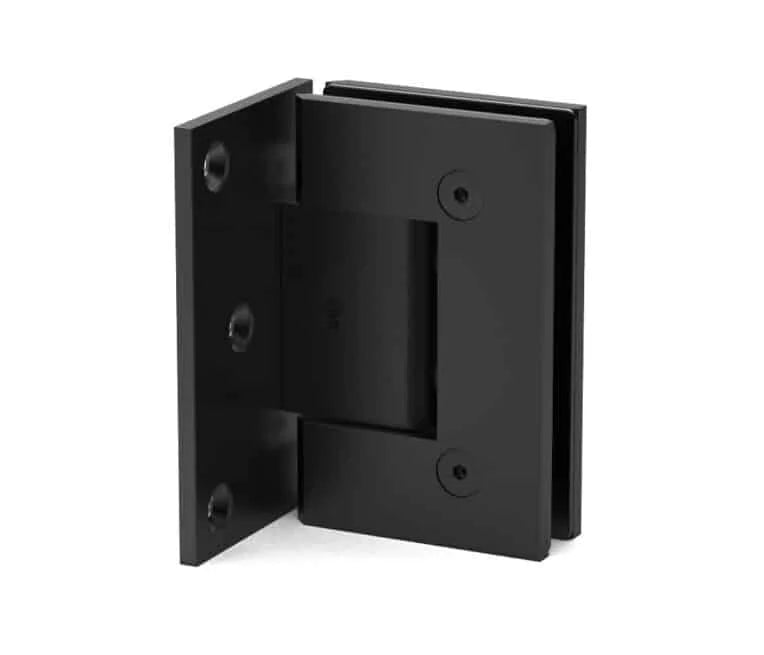

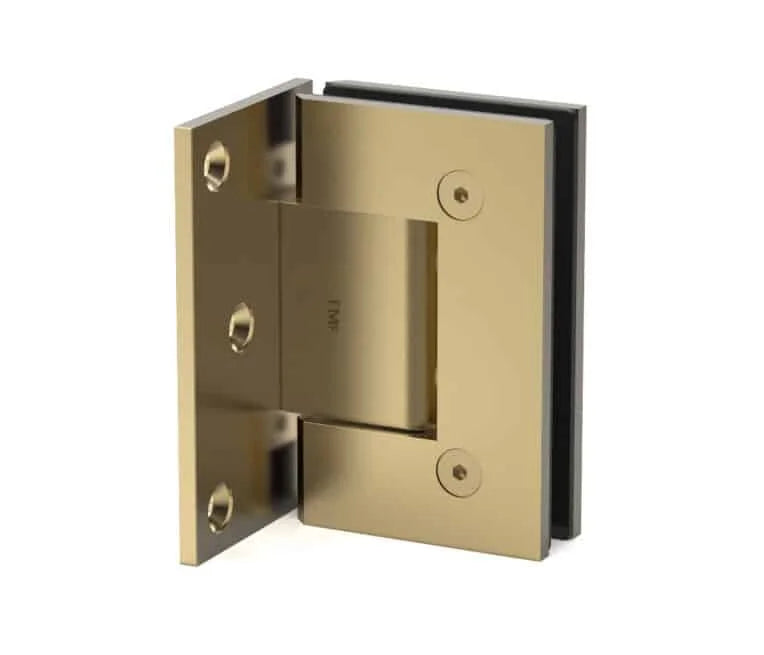

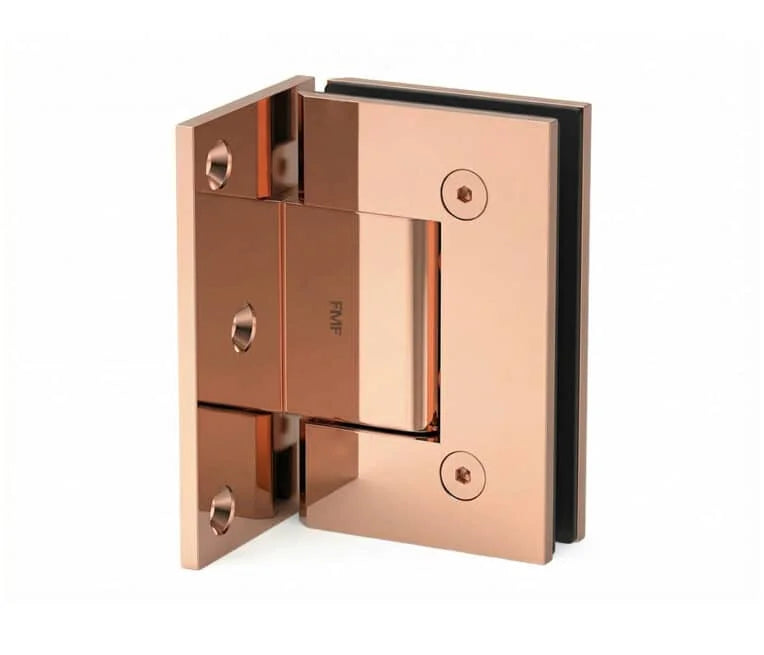

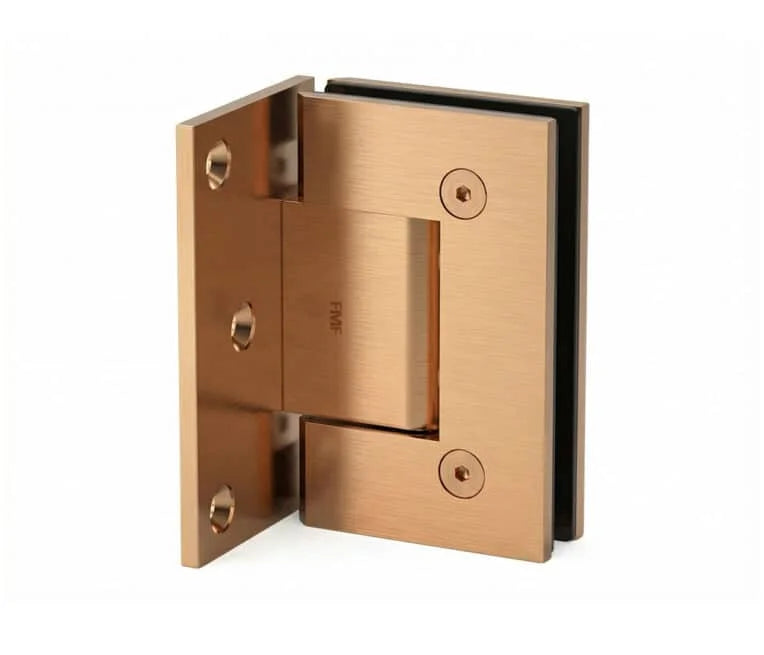

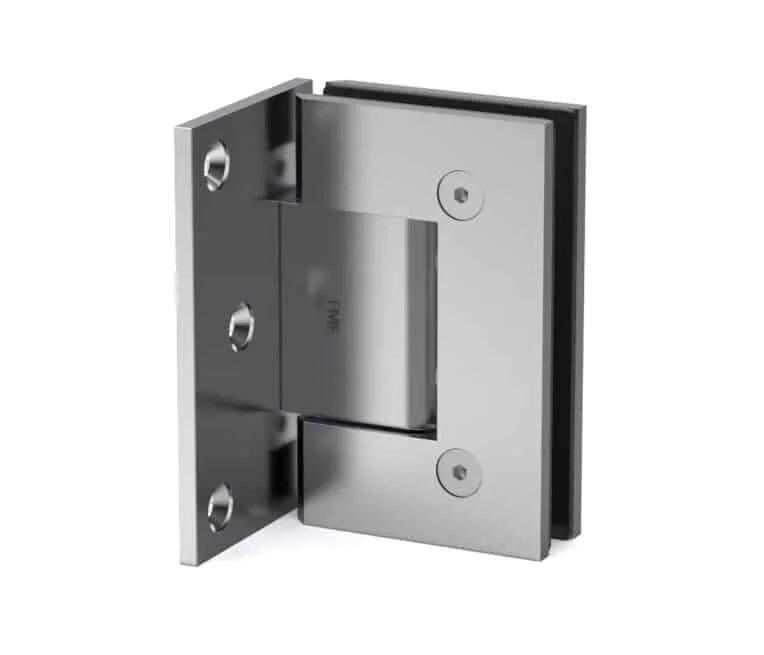

Offset Wall Mount Hinge

- Adjustable to Any Angle up to 90 Degrees Without Removing the Door
- Available in Multiple Elegant Finishes
- 3-Year Warranty
- Designed for Tempered Glass

The hinge allows the door to swing 90 degrees in both directions, although adjusting the angle from its factory-set position may reduce the swing in one direction. For doors that open outward (with a clear door jamb), you can fine-tune the hinge to close 5 degrees inside the shower area, ensuring a snug fit against the jamb.

Specifications:
- Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
- Construction: Solid brass
- Hinge Swing: 90 degrees in and 90 degrees out (at the factory-set position)
- Cut-Out Required
- Includes: Gaskets, screws, and glass fabrication dimensions

Strength and Durability:
- With two hinges, the Vienna Hinge can support glass doors up to 100lbs/45kgs and a maximum width of 36" (914 mm).
