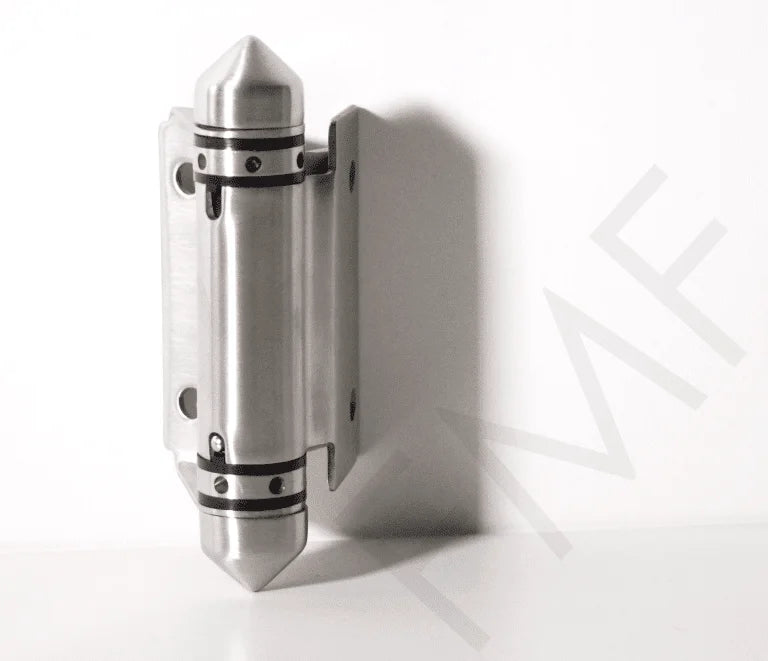

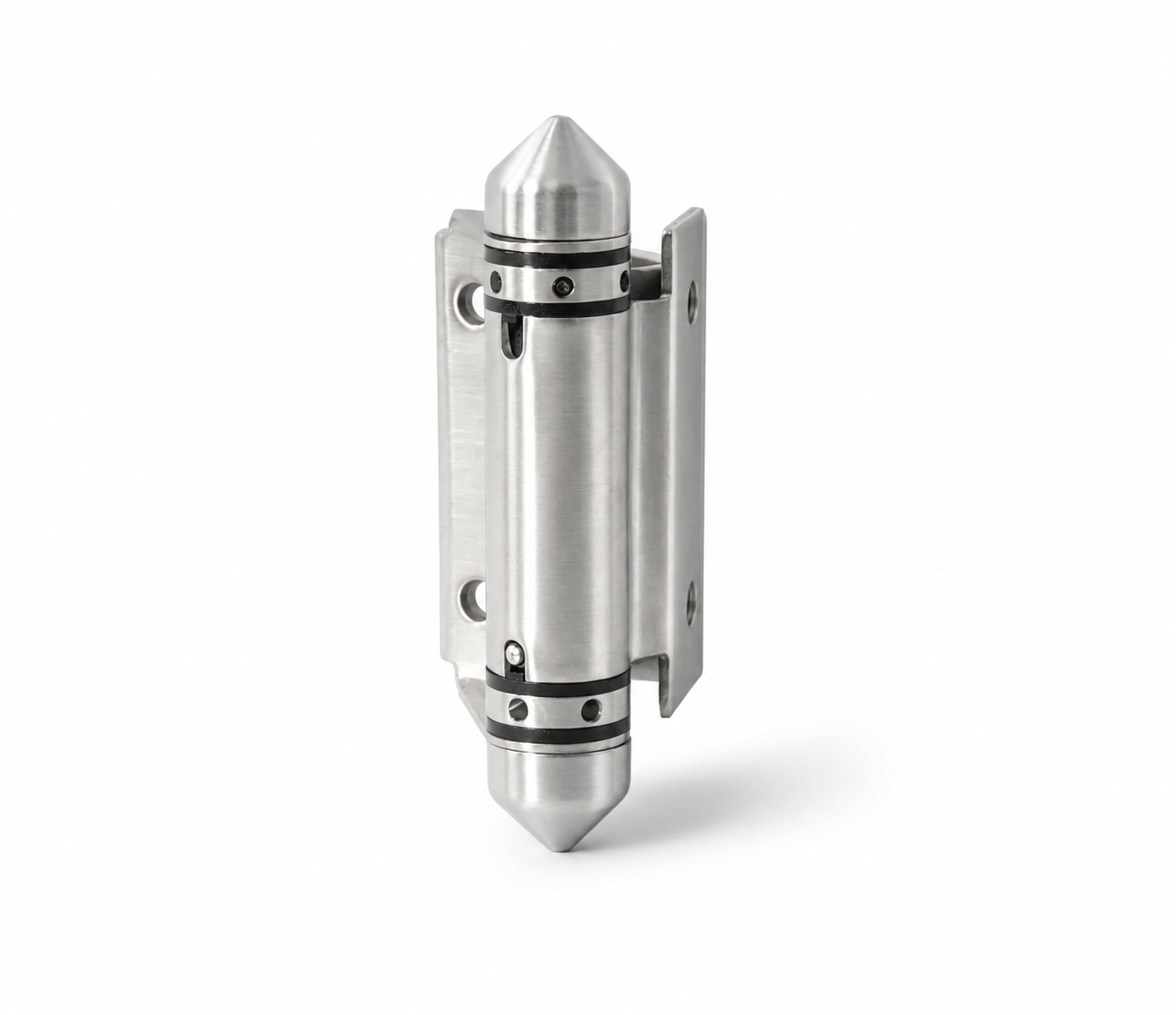

Core Glass-to-S-Post Self-Closing Gate Hinge

Core Glass-to-Square Post Self-Closing Gate Hinge
Post Compatibility: 40 × 40 mm FMF Square Railing Posts
Material: HYP-90S.SS

The Core Glass-to-Square Post Self-Closing Gate Hinge is designed for mounting glass doors directly to 40 × 40 mm FMF square railing posts. Built from 316 grade stainless steel, this hinge provides strong support, excellent corrosion resistance, and reliable performance for indoor and outdoor glass gate applications.

With its post-mount design, the hinge integrates cleanly with modern glass railing systems without the need for additional adapters. It is ideal for frameless glass doors where a secure post connection, clean appearance, and automatic hydraulic closing function are required.

Key Features

• Post-Mount Design: Designed to mount directly onto 40 × 40 mm FMF square railing posts. Or on a wall.
• Hold-Open Function: Allows the glass door to open and hold in position when required.
• 316 Stainless Steel Construction: provides excellent strength and corrosion resistance.
• Glass Compatibility: Suitable for standard frameless glass doors with required cut-out preparation.
• Indoor & Outdoor Use: Designed for interior and exterior glass gate applications.
• Minimalist Appearance: Streamlined design blends neatly with modern glass railing systems.

Specifications

• Product Type: Glass-to-square post self-closing gate hinge
• Material: 316 Grade Stainless Steel
• Post Compatibility: 40 × 40 mm FMF Square Railing Posts
• Glass Compatibility: Frameless glass doors
• Glass Cut-Out: Required; refer to included diagram
• Function: Open outward
• Application: Glass railing gates, pool gates.
• Use: Indoor and outdoor applications

Installation & Support

• Ease of Installation: Designed for direct installation onto compatible 40 × 40 mm FMF square posts.
• Glass Fabrication Required: Glass cut-out is required; refer to the included diagram for accurate preparation.
• Application: Suitable for residential and commercial glass gate installations.
• Warranty: Backed by a limited 1-year warranty.
• Shipping: Ships via trusted third-party courier services across North America.
