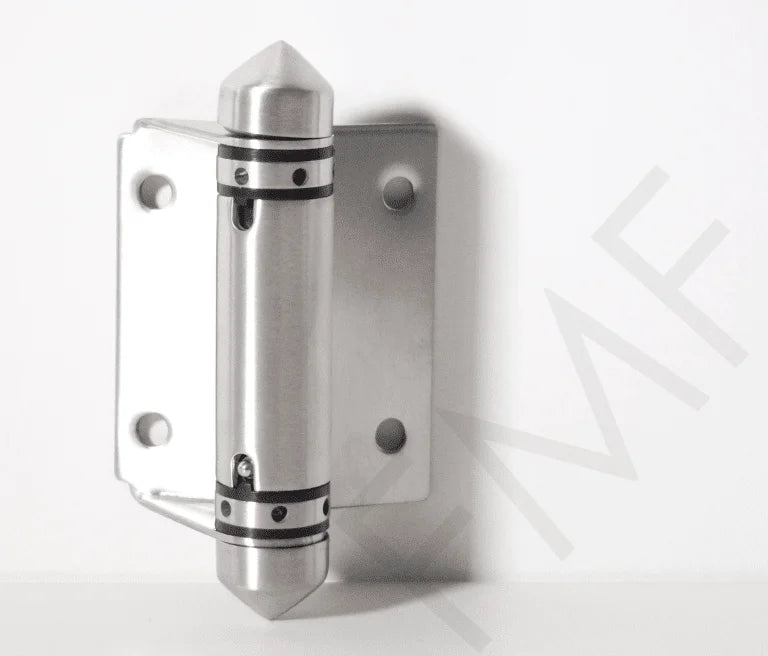

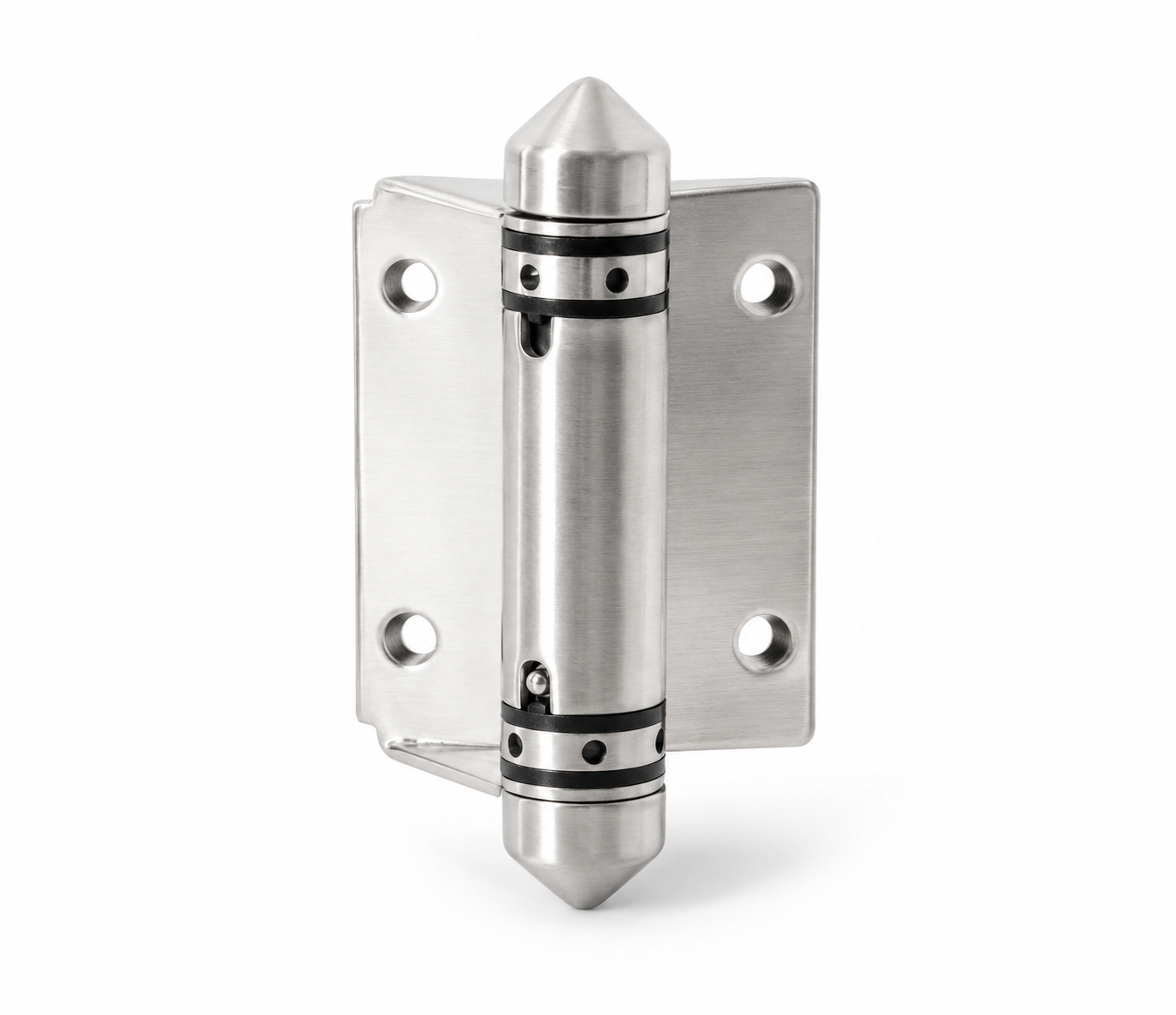

Core Glass-to-Glass Self-Closing Pool Gate Hinge

Hang a frameless glass pool gate from a fixed glass panel with the Core glass-to-glass hinge. It swings the gate shut on its own after every use and clamps 10–12 mm tempered glass. Made of 316 stainless steel in a brushed finish, it's the value option in our pool gate hinge range, below the Apex and Elite series.

Key Features

• Glass-to-glass – the gate hangs from a fixed glass panel; no posts needed
• Self-closing – returns the gate to the latch after every use
• Fits 10–12 mm tempered glass
• 316 stainless steel for poolside and outdoor use
• Screws, bolts and gaskets included

Specifications

• Model: HYP-180
• Configuration: Glass-to-glass, 180° (gate to fixed glass panel)
• Glass: 10–12 mm tempered
• Finish: Brushed Stainless (.SS)
• Material: 316 stainless steel
• Closing action: Self-closing
• Sold as: Each (single hinge)
• In the box: 1 hinge with screws, bolts and gaskets
• Size (L x W x H): 5.5 x 3.1 x 2.8 in
• Use: Interior and exterior
• Warranty: Limited 1-year

Installation Notes

• Glass cut-outs must be made before the glass is tempered – see the Glass Fabrication drawing under Technical References.
• Pool gates must also be self-latching: pair these hinges with a glass fence lock.
• Check your local pool-enclosure bylaw for gate height, swing direction and latch height.

Pairs well with: Glass fence locks, adjustable spigots for the fixed panel, or the Apex Glass-to-Glass hinge (sold in pairs, gates up to 45 kg).
