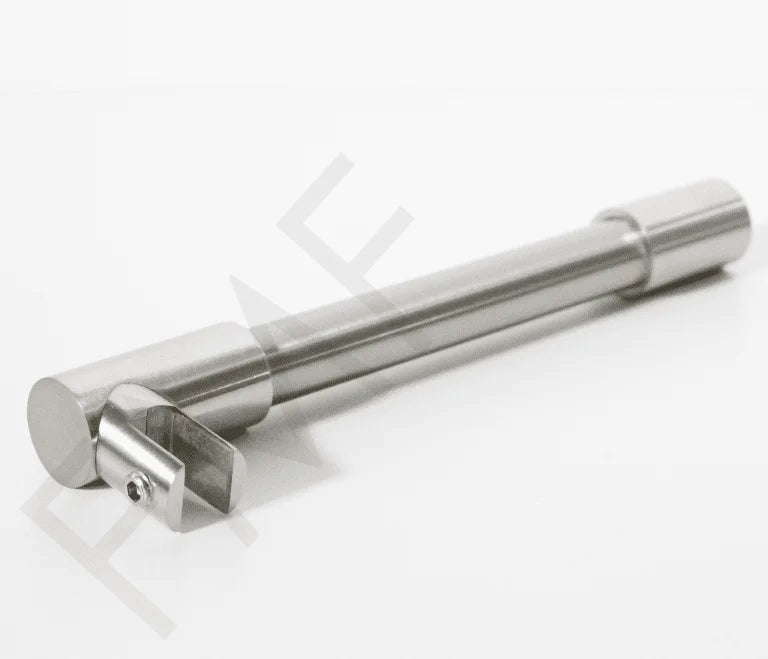

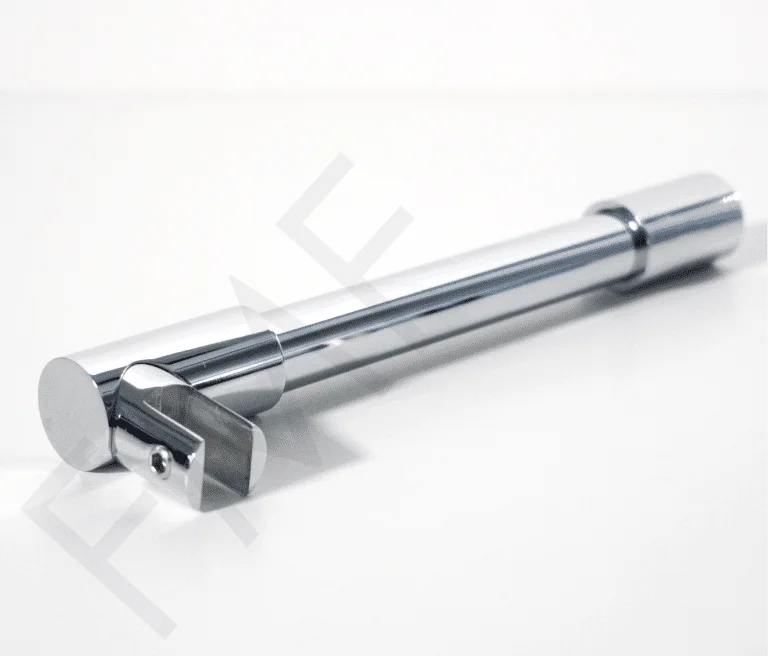

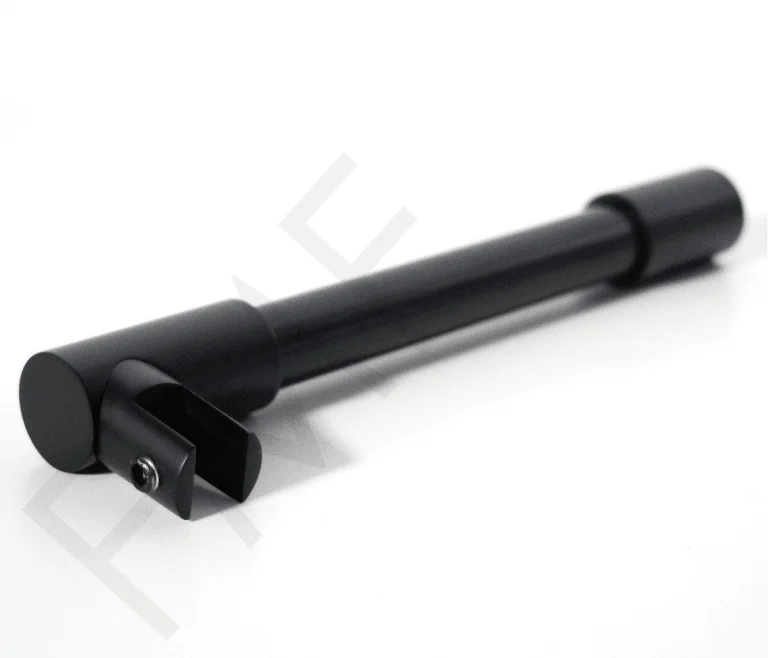

Round Glass-to-Wall Support Bar Kit

FMF Round Glass-to-Wall Support Bar Kit are a sleek and practical alternative to traditional header kits, designed to stabilize fixed glass panels in frameless shower enclosures that do not extend to the ceiling. These support bars enhance structural integrity while maintaining a clean, minimal appearance.

Available in Wall-to-Glass and Glass-to-Glass configurations, each bar features solid brass fittings with swiveling U-shaped receptacles for a secure grip on the glass. Nylon-tipped set screws prevent metal-to-glass contact, and the bars can be cut to size on-site without requiring any holes or cut-outs in the glass. Compatible with 1/4" to 1/2" (6–12 mm) monolithic tempered glass.

Key Features
- Alternative to Header Kits – Provides support without full headers.
- Two Configurations – Choose from Wall-to-Glass or Glass-to-Glass models.
- No Glass Fabrication Required – Installs without drilling or cut-outs.
- Adjustable Length – Can be cut on-site to fit custom layouts.
- Glass Protection – Nylon-tipped set screws prevent damage during tightening.
- Multiple Finishes – Coordinates with common shower hardware.
- Optional Lengths – Available in 39" (1 m) and 51" (1.3 m) options.

Kit Contents
- 1 × Tubular Brass Support Bar (48")
- 1 × Set of Solid Brass Fittings (per selected configuration)
- Nylon-Tipped Set Screws
- All Required Mounting Hardware

Material Specifications
- Bar Material: 3/4" (19 mm) Diameter Tubular Brass
- Fittings Material: Solid Brass
- Glass Compatibility: 1/4", 3/8", and 1/2" (6–12 mm) Monolithic Tempered Glass
- Available Lengths: 48" (1 m)

Installation Notes
- No hole drilling or cut-outs required.
- Can be trimmed to desired length during installation.
- Use with monolithic tempered glass panels only.
- Finishes available to match hinges, knobs, and pull handles.
