Premium S-SERIES Sliding Door System

Premium S-SERIES Sliding Door System
Model: SSK-02

The Premium S-SERIES Sliding Door System is designed for frameless glass shower enclosures where quiet operation, minimal hardware, and a clean modern appearance are required. This system features one sliding door and one fixed panel, creating a practical and elegant layout with an almost floating glass appearance. Specially designed roller bearings allow the door to open and close smoothly and quietly, making it ideal for modern residential and commercial shower installations.

Key Features

• One Sliding Door + One Fixed Panel: Designed with one sliding panel and one fixed panel for a clean and functional enclosure layout.
• Minimal Hardware Design: Provides a frameless look with an almost floating glass appearance.
• Quiet Door Movement: Specially designed roller bearings allow smooth and quiet opening and closing.
• Glass Compatibility: Designed for 10-12mm tempered glass.
• Architectural Finish Options: Available in several architectural finishes to match modern shower hardware.

Specifications

• Material: Stainless Steel
• Glass Thickness Range: 10-12mm tempered safety glass
• Maximum Door Width: 30" / 762 mm
• Maximum Door Weight: 100 lbs / 50 kg
• Header Bar Length: 78"
• Fabrication Required: Holes required in both the door and fixed panel
• Glass Included: No
• Application: Frameless sliding shower enclosure system

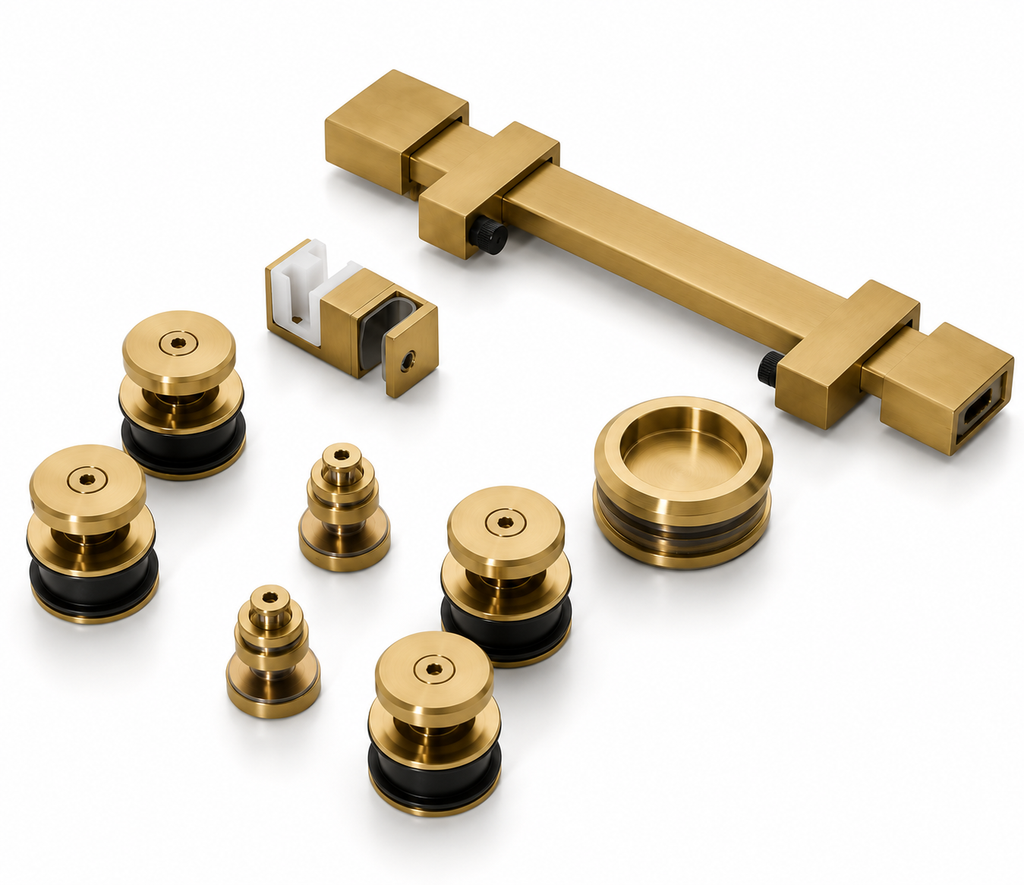

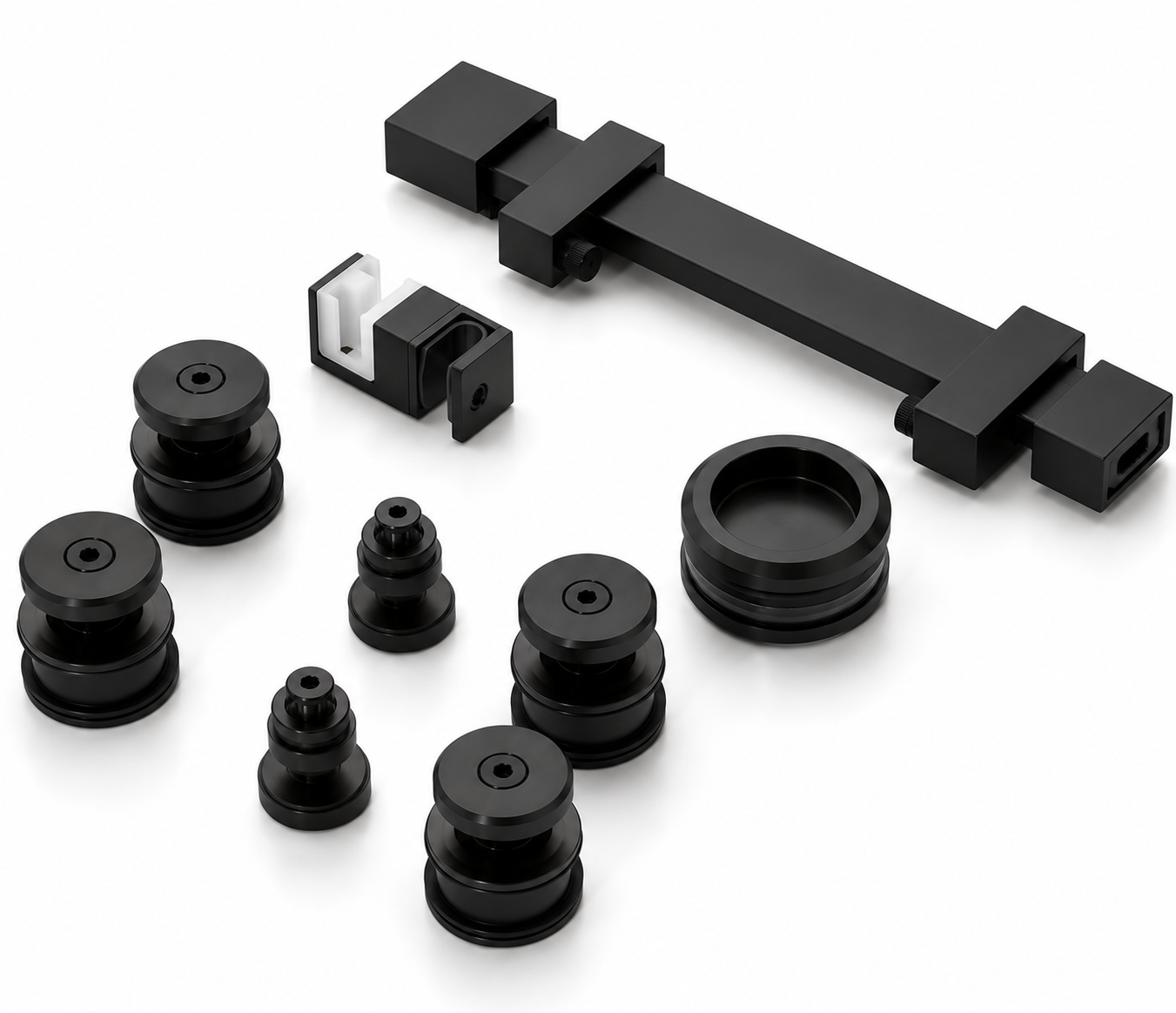

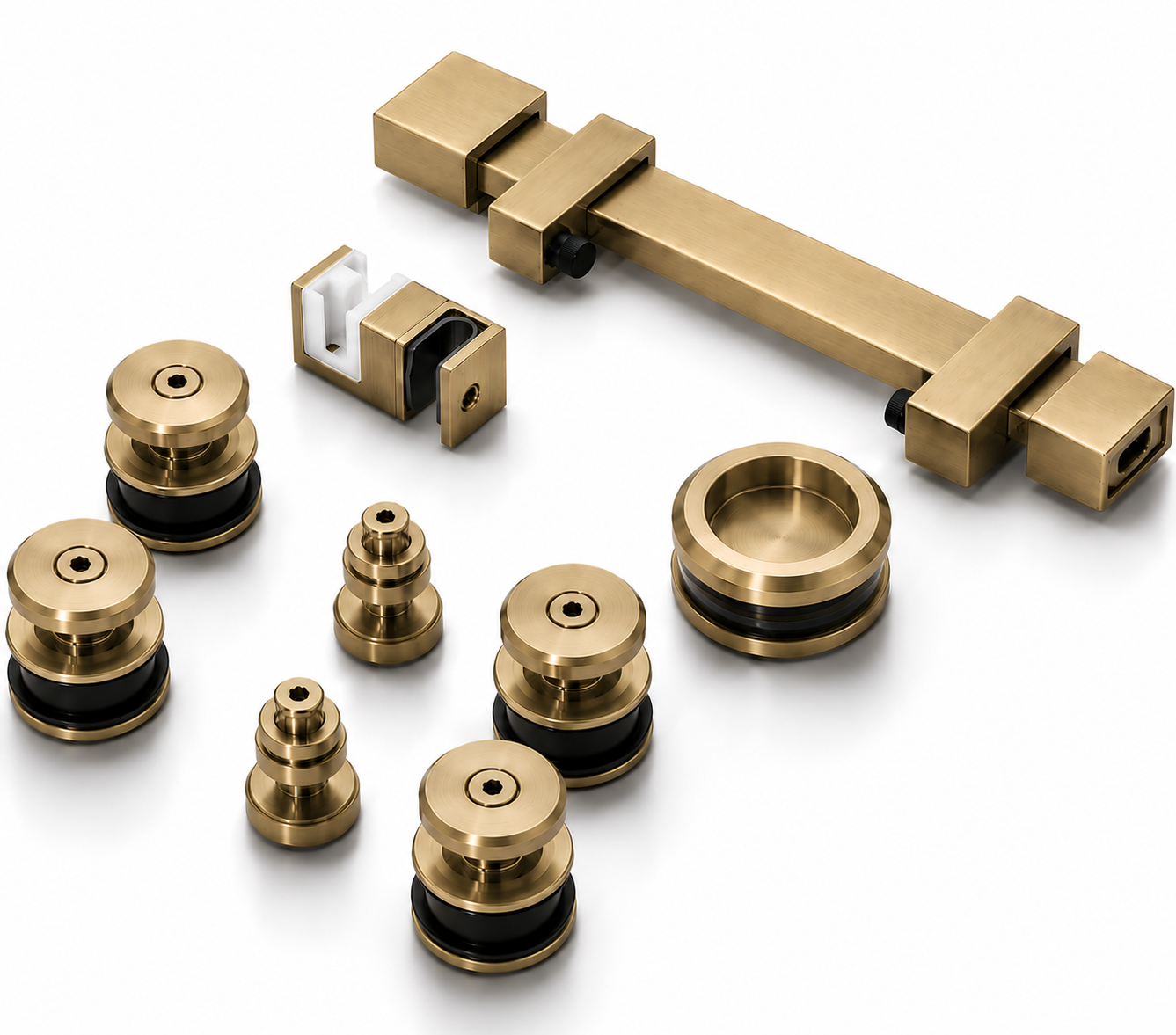

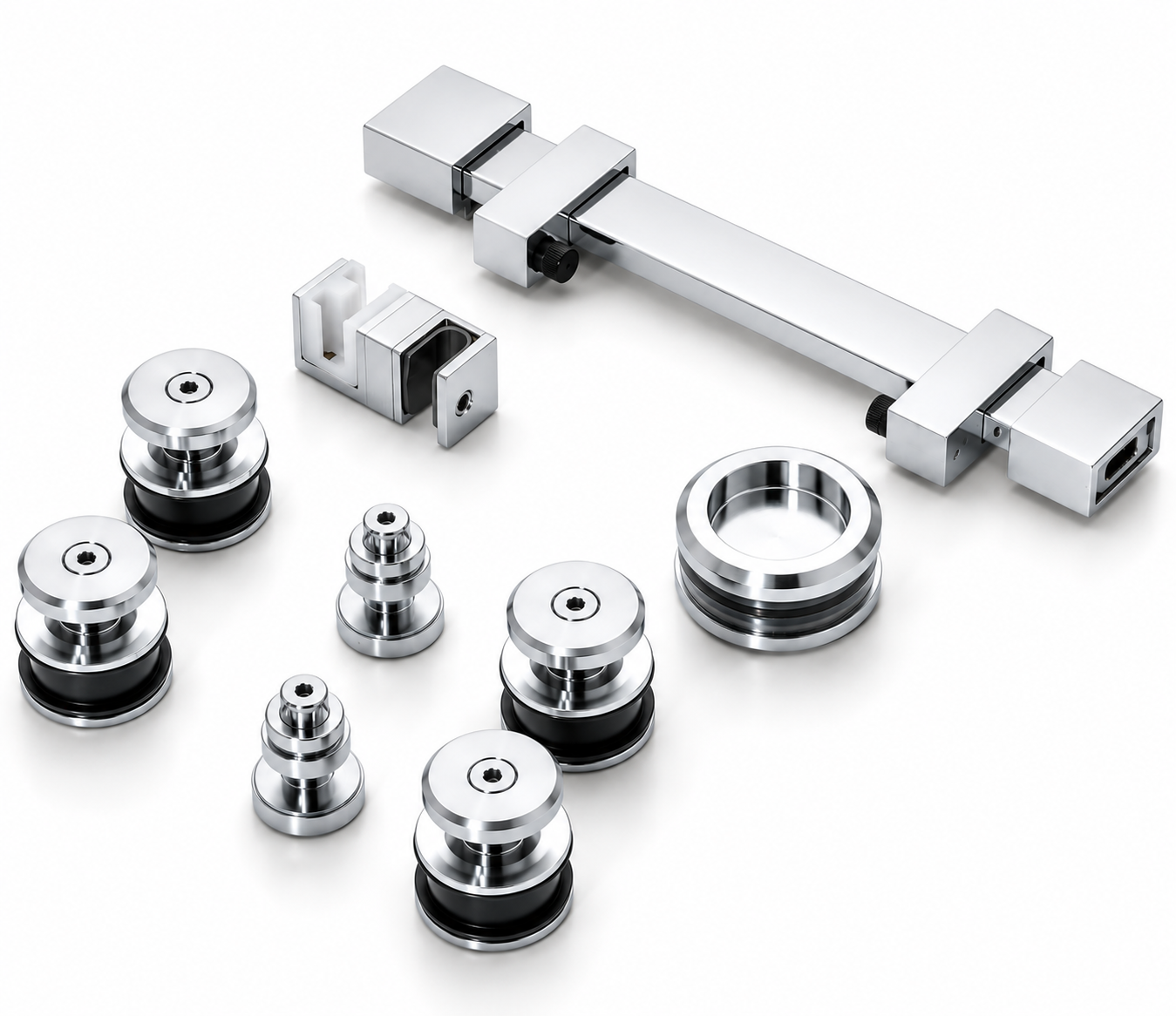

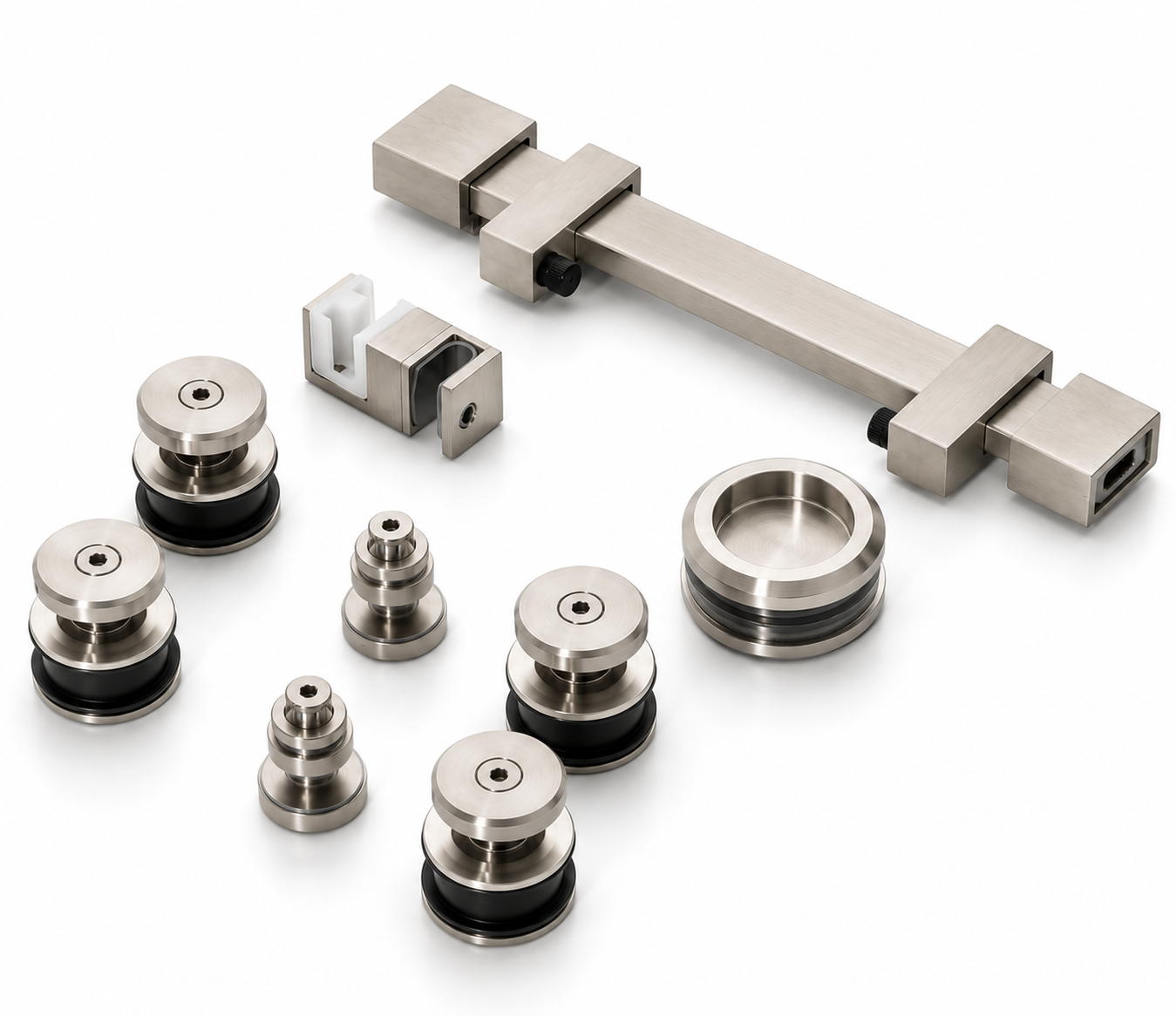

Kit Contents

• 1 × 78" header bar
• 4 × Rollers
• 2 × Stopper
• 2 × Track holder fittings for wall
• 2 × Glass-to-Bar Mount
• 1 × Sliding Door Pull Knob
• 1 × Door guide

Installation & Support

• Ease of Installation: Designed for installation with included system components and proper glass fabrication.
• Glass Fabrication Required: Holes are required in both the sliding door and fixed glass panel.
• Additional Components: U-channel or glass clamps for the fixed panel must be ordered separately.
• Application: Suitable for frameless shower enclosures using monolithic tempered glass.
• Shipping: Delivered via reliable third-party courier services across North America.
