R-SERIES Sliding Door Kit

R-Series Sliding Door Kit
Model: RSK-02

The R-Series Sliding Door System blends soft aesthetics with reliable performance, making it an excellent choice for modern shower enclosures. Featuring a circular header and matching round rollers, the system delivers quiet movement and a sleek, symmetrical look. Designed to highlight more glass and less hardware, the R-Series fits perfectly into minimalist and high-end bathroom designs.

Key Features:
- One Sliding Door + One Fixed Panel – Minimal hardware layout ideal for frameless glass enclosures
- Quiet Operation – Premium roller bearings ensure smooth, silent door movement
- Modern Finishes – Available in Polished Stainless, Brushed Stainless, and Matte Black
- Modular Setup – Handle/knob and glass clamps or U-channel sold separately for full customization
- Reversible Installation – Sliding and fixed panels can be positioned to suit your layout

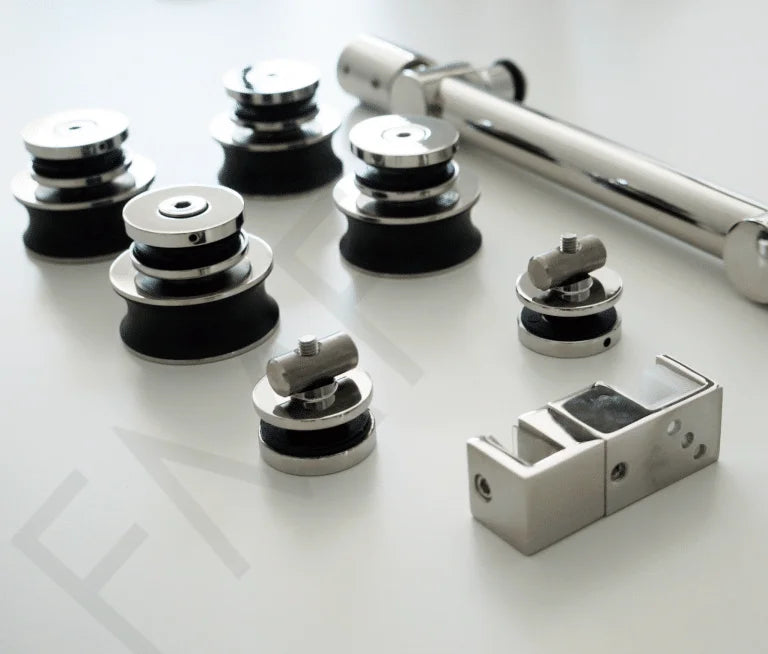

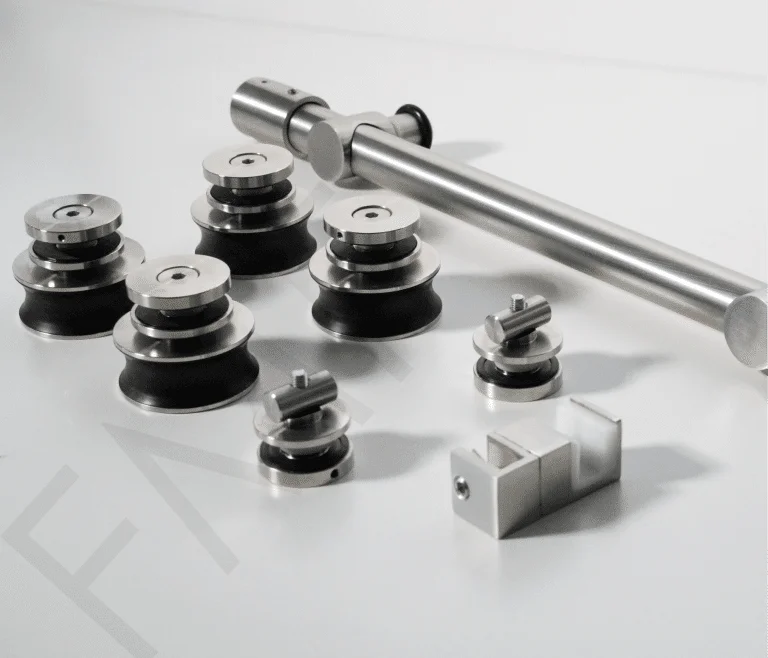

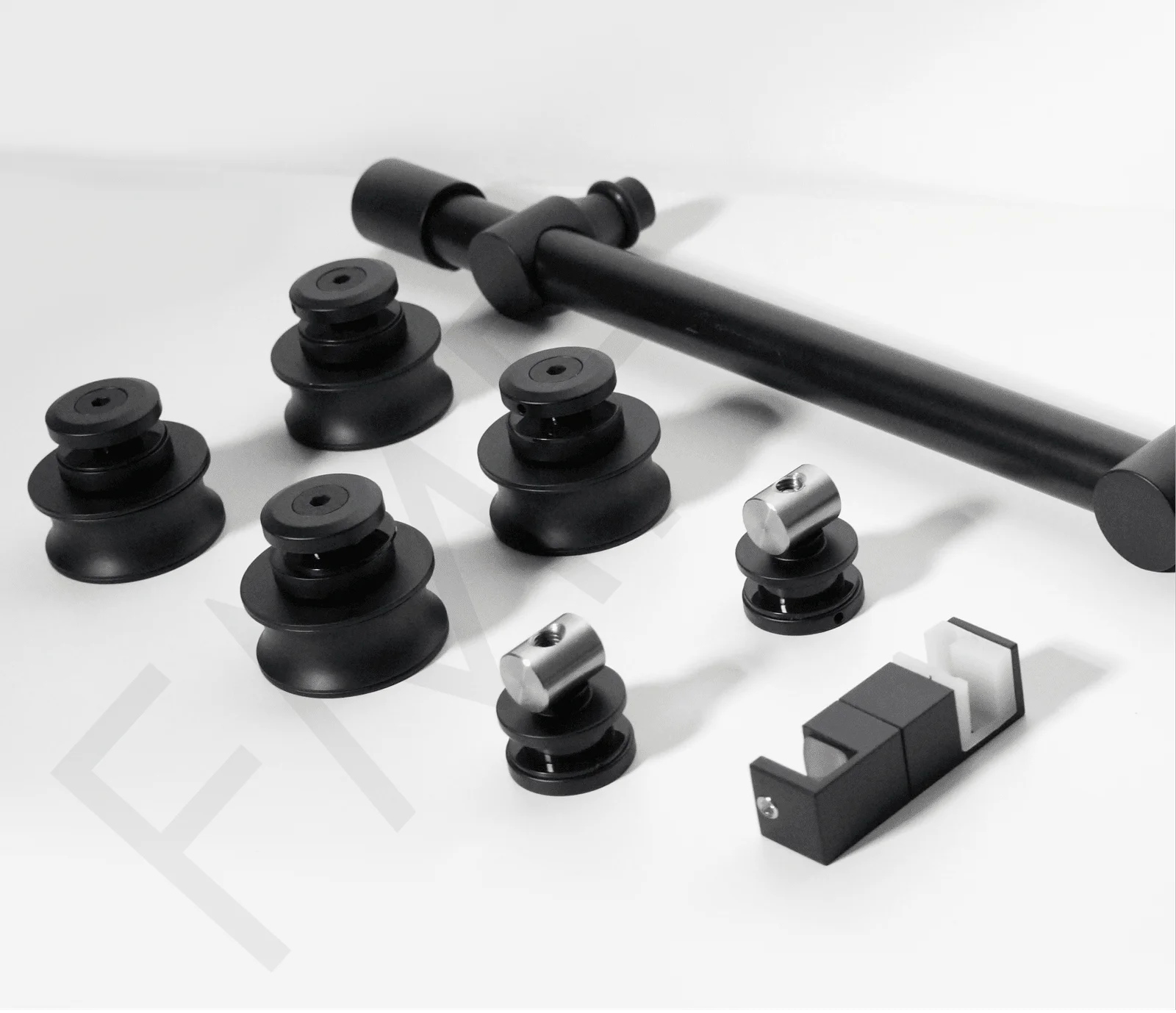

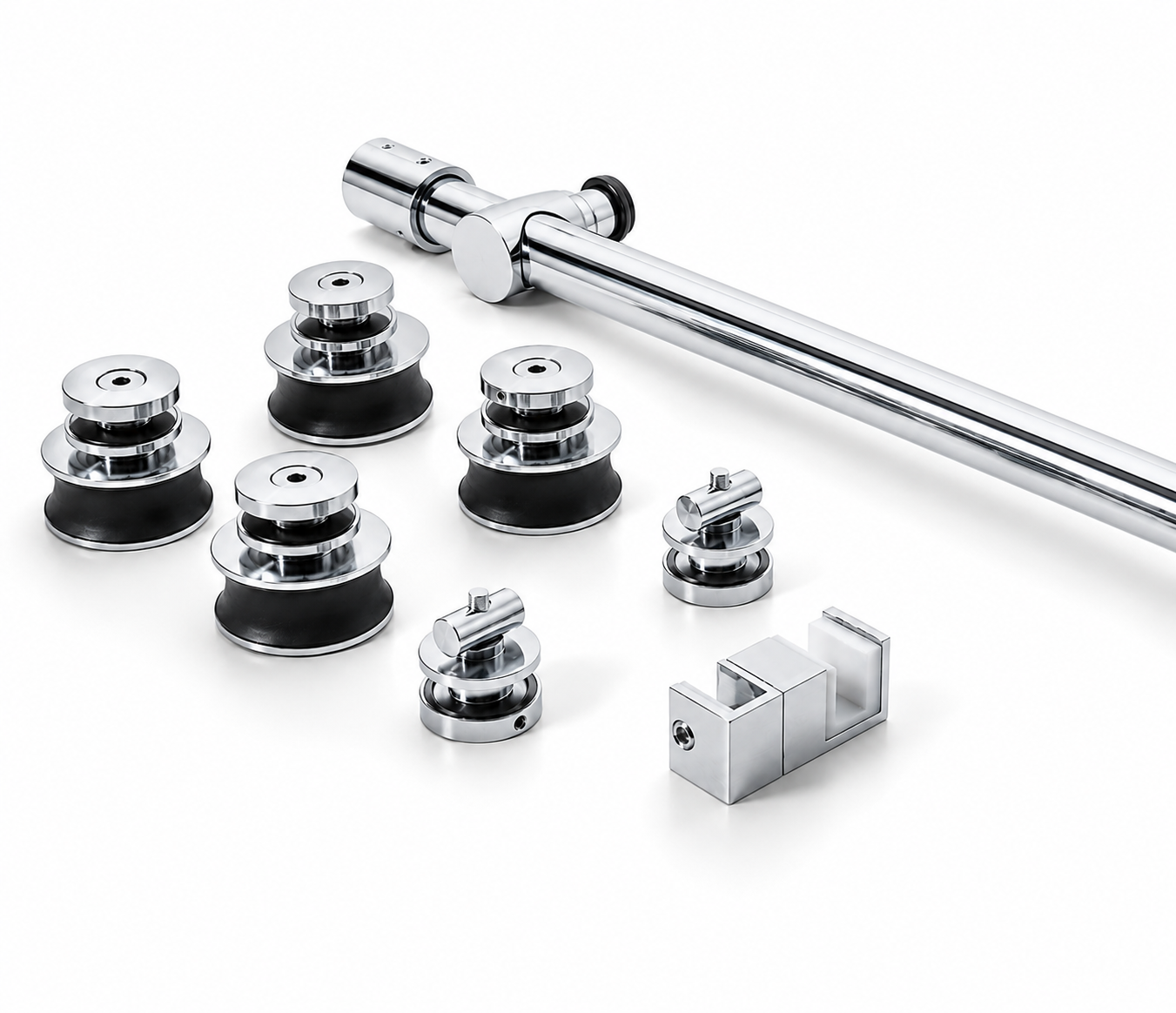

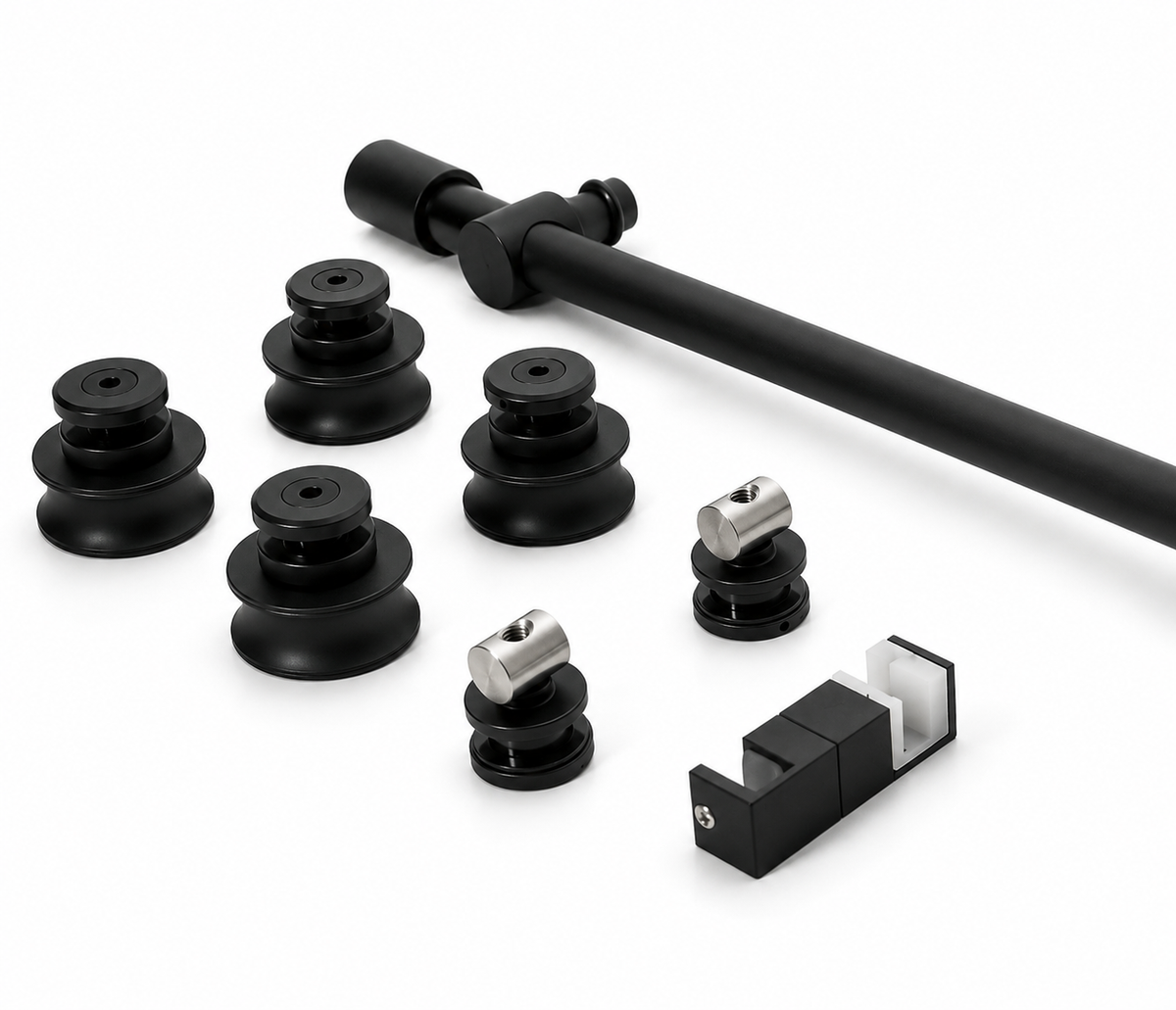

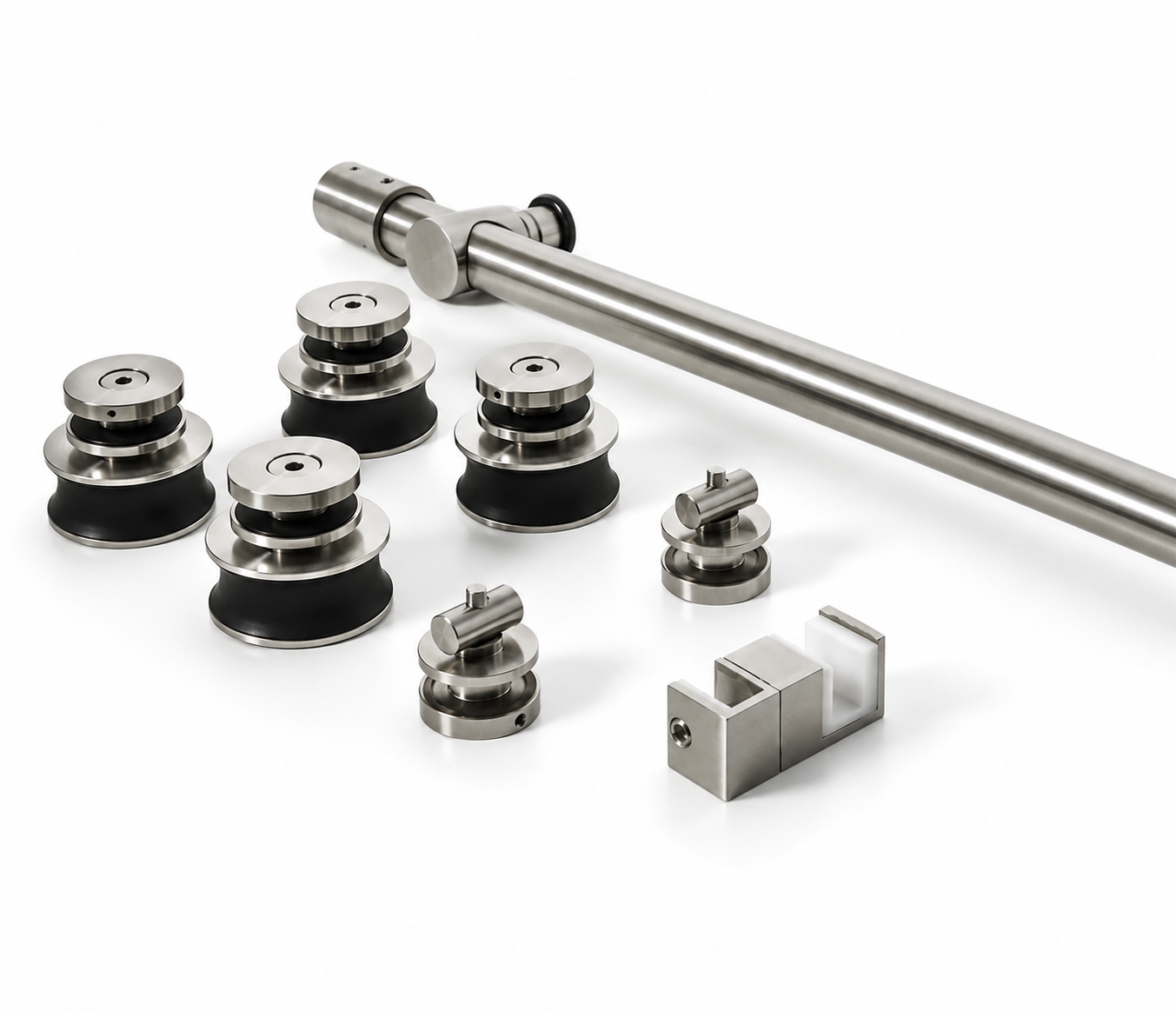

Kit Contents (Standard 180° Kit):
- 1 × 78" Header Bar
- 4 × Rollers
- 1 × Door Stopper
- 2 × Wall Mount Fittings
- 2 × Track Holder Fittings (for Fixed Panel)
- 1 × Bottom Guide (with inserts for 3/8" and 1/2" glass)

Specifications
- Material: Stainless Steel
- Glass Thickness: 3/8" or 1/2" (10 or 12 mm) Tempered Safety Glass
- Max Door Size: 36" wide or 100 lbs (whichever comes first)
- Glass Fabrication: Required for both sliding and fixed panels
