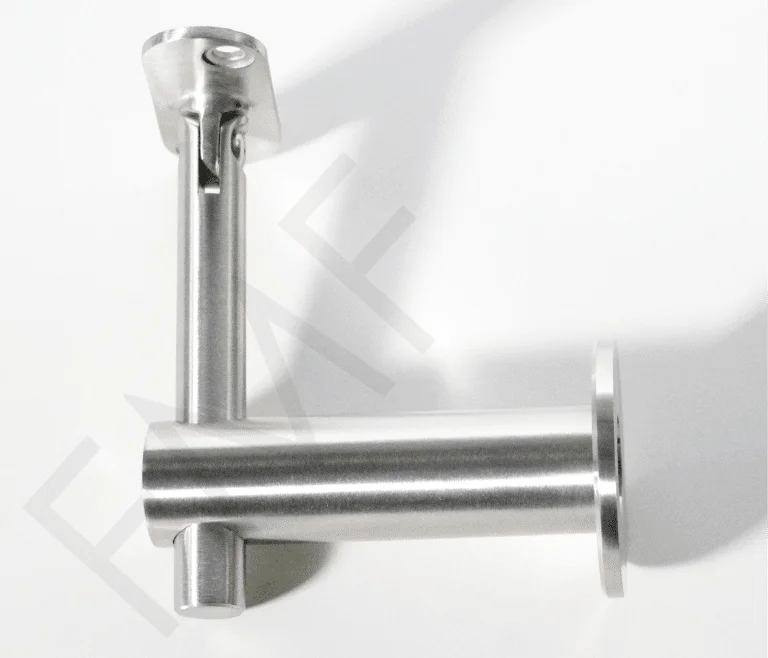

Height-Adjustable Wall Mount Handrail Bracket – Movable Saddle – HRB-02AW – Brushed Stainless

Height-Adjustable Wall Mount Handrail Bracket – Movable Saddle

Brushed Stainless
Skip to product information
Height-Adjustable Wall Mount Handrail Bracket – Movable Saddle – HRB-02AW – Brushed Stainless
Model:
HRB-02AW.SS

Height-Adjustable Wall Mount Handrail Bracket – Movable Saddle

Height Adjustable Wall Mount Handrail Bracket w/ Swivel Saddle-SS
FinishBrushed Stainless
PICKUP LOCATION IN STOCK
FMF Hardware Supply | Concord …
FMF Glass Hardware | Mississauga …
FMF Hardware Solutions | Woodbridge …
Product Details −
Shipping Dimensions: Length: 5.8 in , Width: 3 in , Height: 2 in Finish/Color: Brushed Stainless
Applicable: Round & Square Handrails Shipping Weight: 1
Material: 316 Grade Stainless Steel Warranty: Limited 1-year warranty
Shipping Method: Via third-party courier service
Product Overview +

Run a handrail along a wall on stairs and ramps with this 316 stainless steel bracket. It adjusts two ways: the height adjusts so the rail lines up across every bracket, and the movable saddle pivots to match the pitch of the rail so it sits flat in the saddle on sloped runs. One bracket covers stairs, ramps and landings, which simplifies ordering on mixed projects.

Key Features

  • Height-adjustable – fine-tune rail height on site
  • Movable saddle – pivots to follow stair and ramp angles
  • Wall mount – fastens to wall blocking, masonry or concrete
  • Works with square or round handrail – flat saddle as supplied, swap to a curved saddle for round tubing
  • 316 marine-grade stainless – suited to exterior and coastal installs

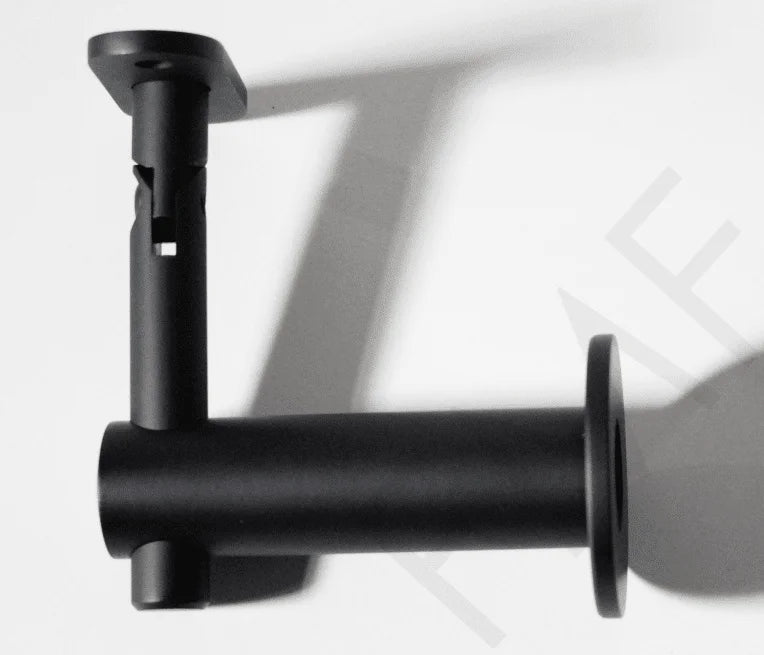

  • Two finishes – Brushed Stainless or Matte Black

Specifications

  • Model: HRB-02AW
  • Mount type: Wall mount
  • Saddle: Movable, flat (curved option for round rail)
  • Adjustment: Height (vertical)
  • Material: 316 marine-grade stainless steel
  • Finishes: Brushed Stainless (.SS), Matte Black (.BL)
  • Handrail profile: Square/flat-bottom rail as supplied; round rail with the curved saddle
  • Use: Interior and exterior
  • Sold as: Each (1 bracket)

Installation Notes

  • Fasten into solid backing (blocking, stud, masonry or concrete) – not drywall alone.
  • Set the height and saddle angle to the rail before final tightening.
  • Space brackets according to your local building code and the handrail manufacturer's guidance.

Pairs well with: Square or round handrail, adjustable handrail elbows, Height-Adjustable Glass Mount Handrail Bracket – Movable Saddle (HRB-02AG).
