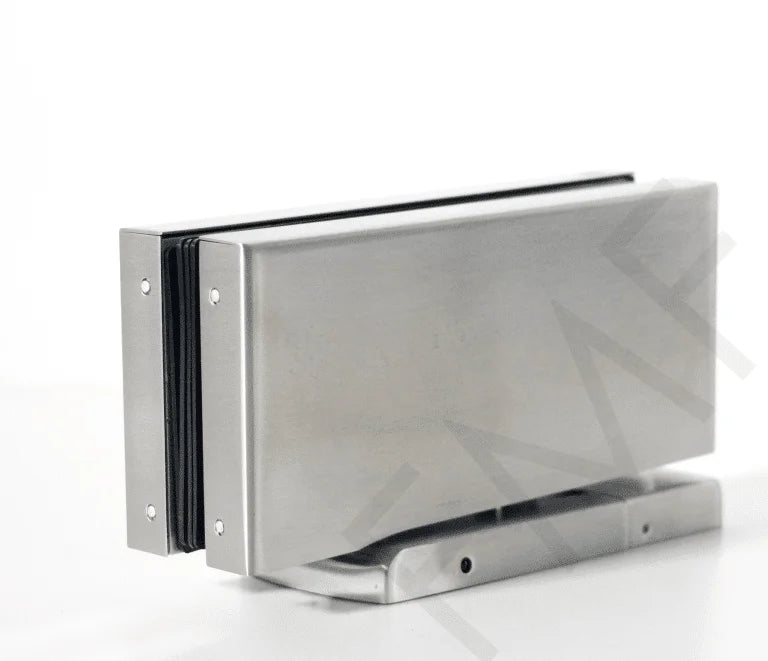

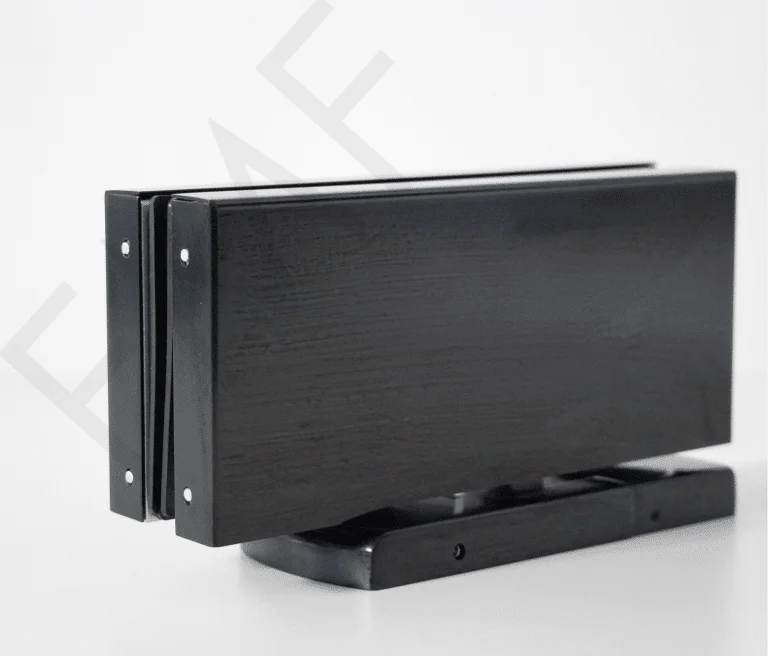

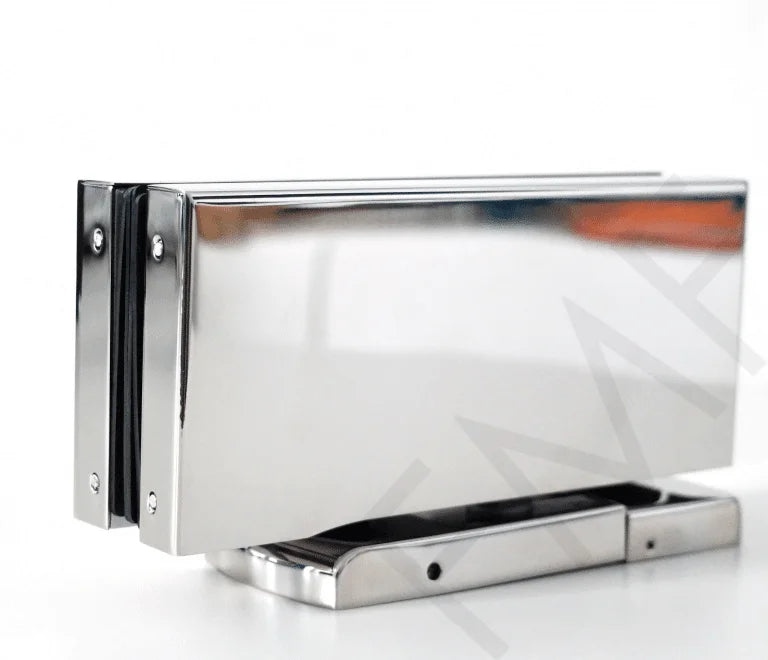

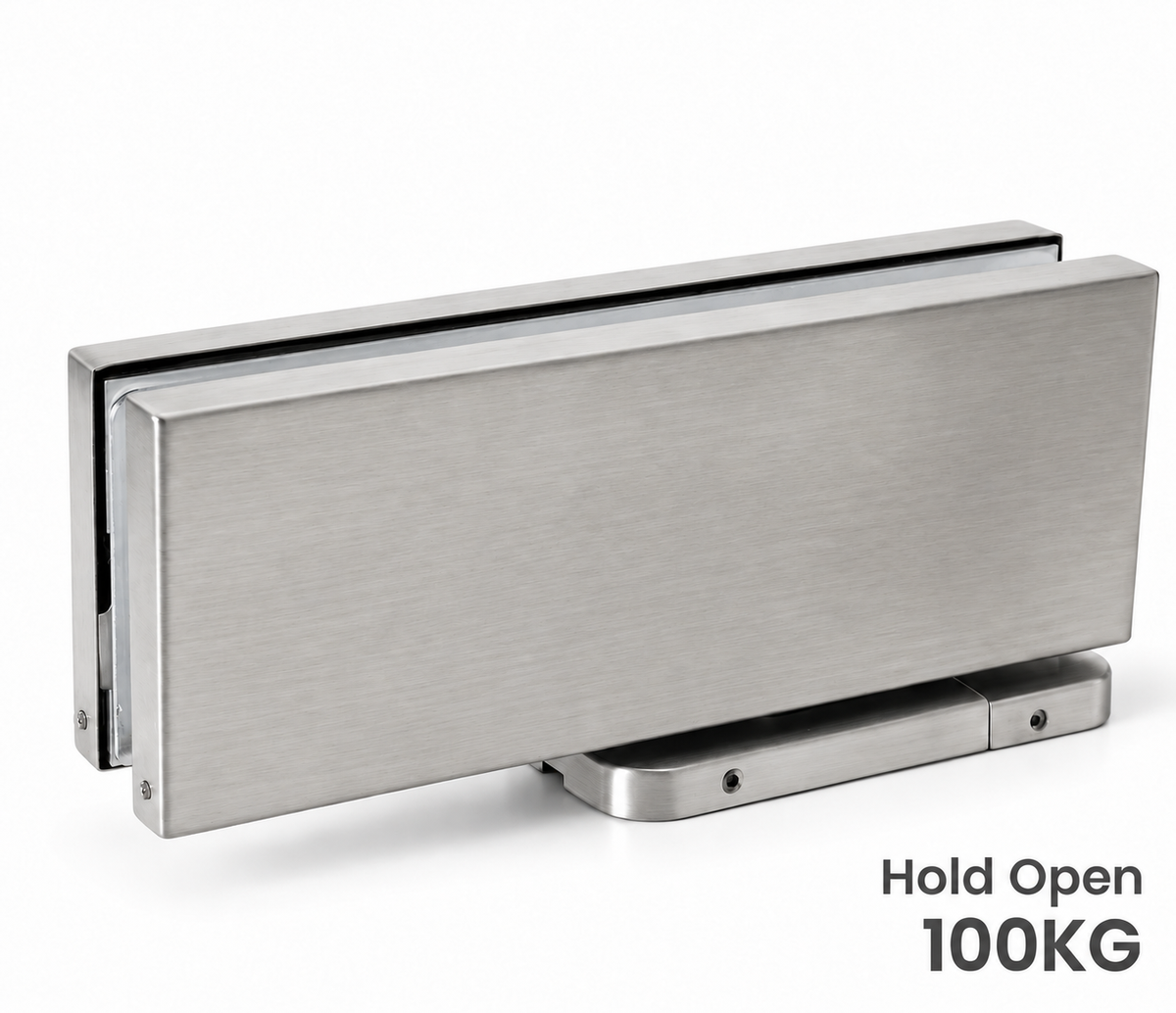

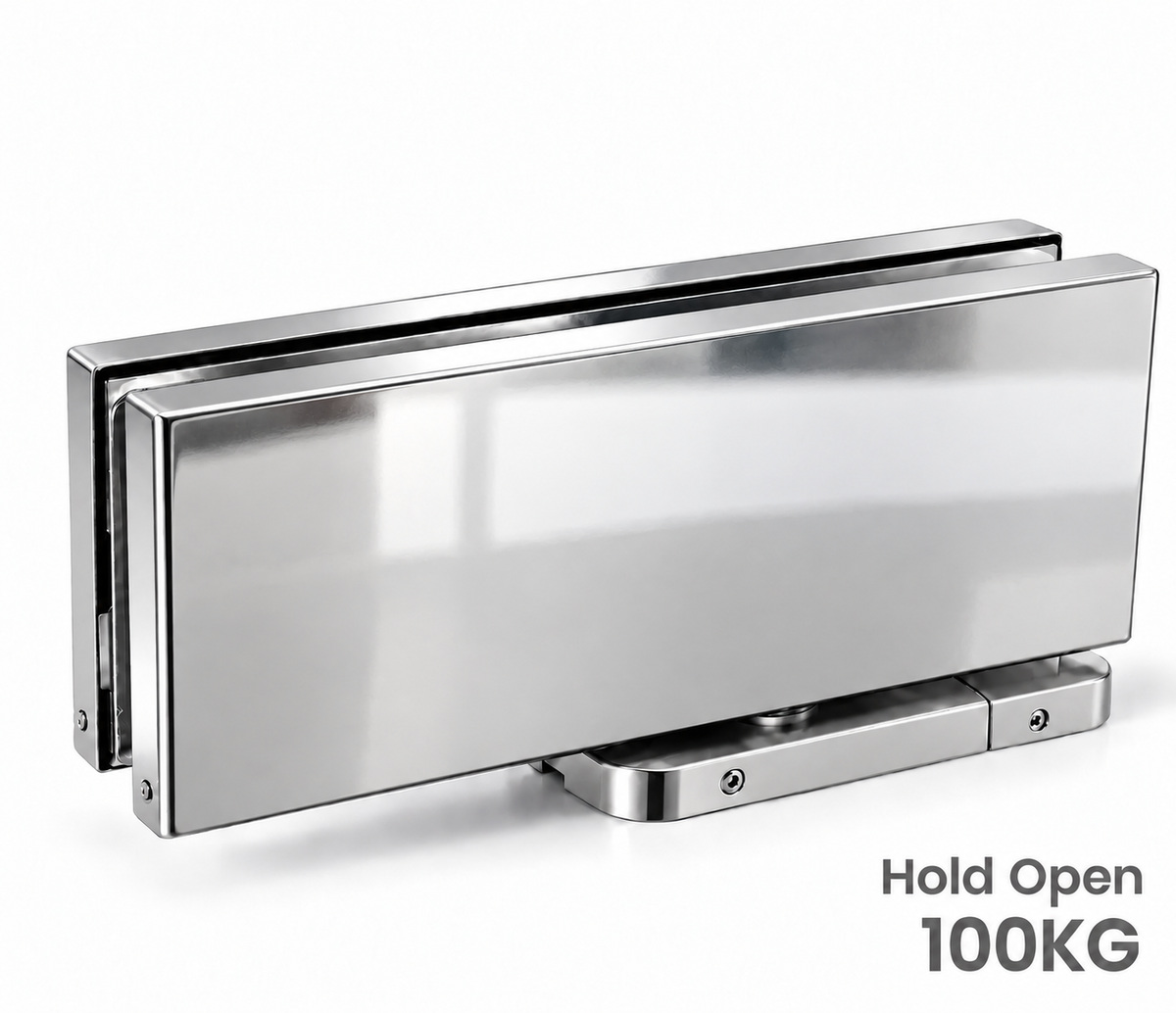

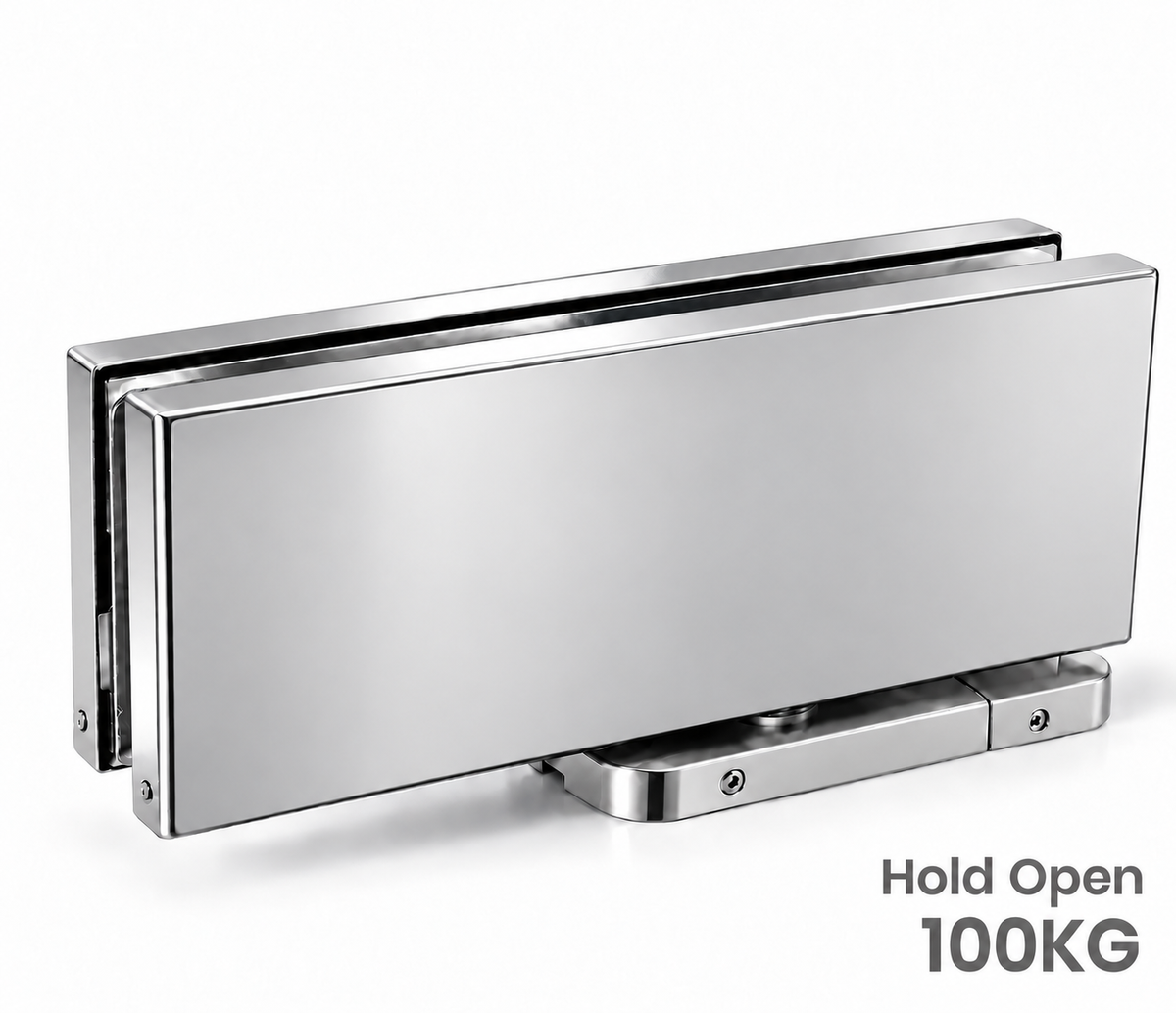

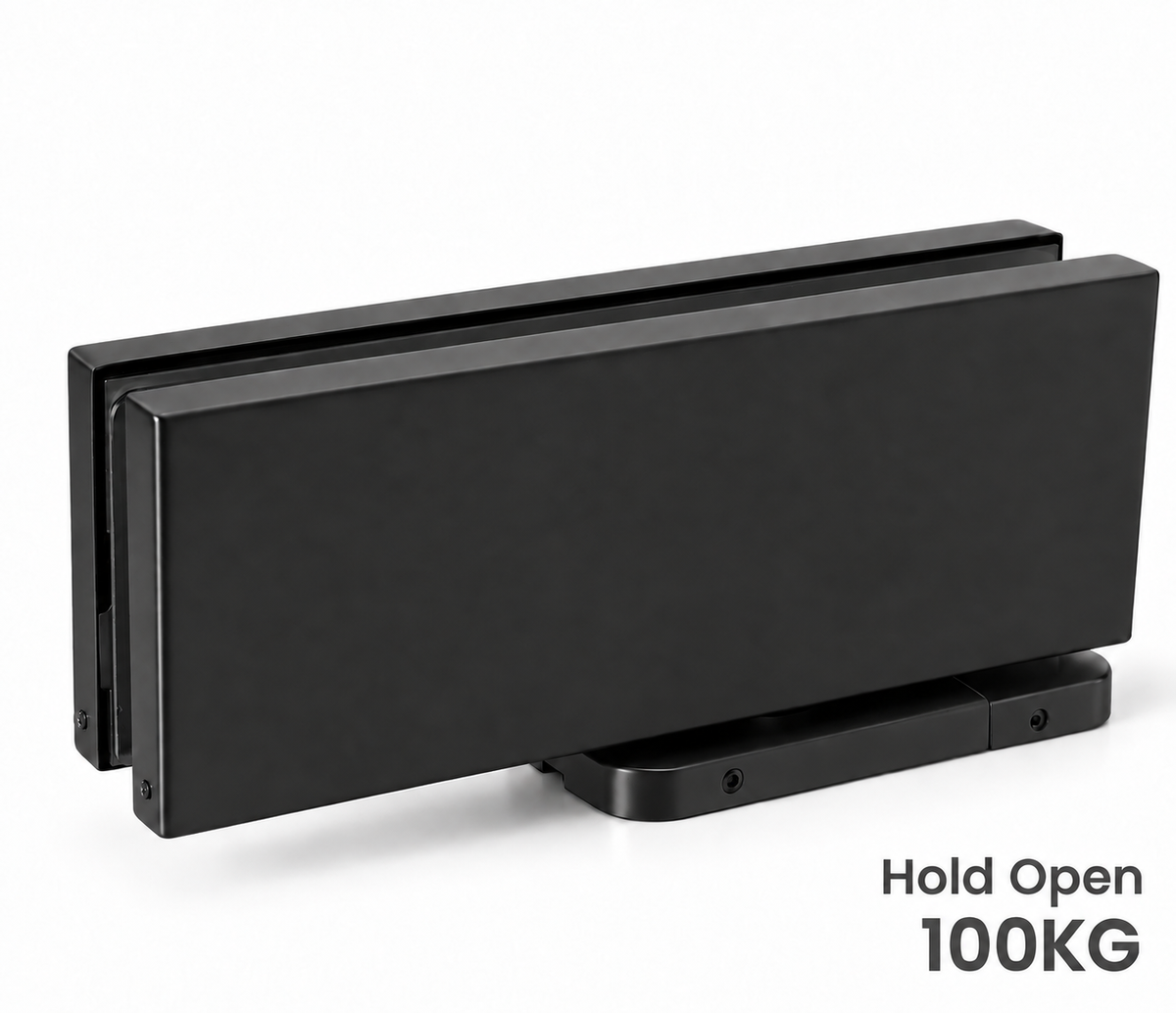

Hydraulic Hinge Standard-Duty - 100kg

The Medium Duty Hydraulic Glass Hinge is engineered for enhanced performance and stability in interior glass door applications. Designed for 10–12mm tempered glass, it offers a seamless blend of strength, adjustability, and ease of installation—ideal for both residential and light commercial use. No digging is required, making it a convenient surface-mounted solution.

Key Features:
- Adjustable Speed: Allows for smooth and controlled door closing tailored to your preference.
- Self-Closing with Hold Open Function: Automatically returns the door to the closed position or holds it open at 90°.
- Interior Use Only: Built specifically for indoor glass door installations.
- No Digging Required: Simplifies installation with a surface-mounted design.

Specifications:
- Applicable Glass Thickness: 10–12mm tempered glass
- Construction: Aluminum body with 304-grade stainless steel cover plate
- Maximum Door Weight: 225 lbs (100 kg)
- Maximum Door Width: Up to 36 inches
- Shipping Weight: 5 lbs (approx. 2.3 kg)
- Cut-Out Required: Industry standard – see attached fabrication diagram

Included Accessories:
- Screws and bolts
- Gaskets (for 10mm glass)
- Allen wrench
- Fabrication diagram
- Installation instructions

Additional Details:
- Function: Opens and holds glass doors at 90°, with adjustable closing speed
- Warranty: Limited 1-year warranty
- Shipping: Ships via third-party courier service
