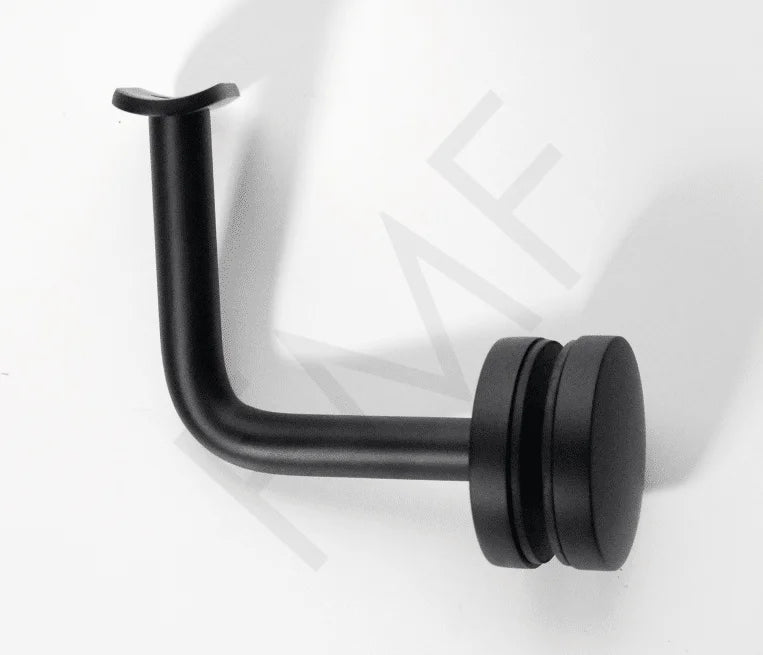

Glass Mount Round Handrail Bracket – Fixed Saddle – HRB-01G0 – Matte Black

Glass Mount Round Handrail Bracket – Fixed Saddle

Matte Black
Skip to product information
Glass Mount Round Handrail Bracket – Fixed Saddle – HRB-01G0 – Matte Black
Model:
HRB-01G0.BL

Glass Mount Round Handrail Bracket – Fixed Saddle

Glass Mount Handrail Bracket w/ Fixed Saddle-BL
FinishMatte Black
PICKUP LOCATION IN STOCK
FMF Hardware Supply | Concord …
FMF Glass Hardware | Mississauga …
FMF Hardware Solutions | Woodbridge …
Product Details −
Shipping Dimensions: Length: 2.5 in , Width: 4.5 in , Height: 2.5 in Finish/Color: Matte Black
Applicable: Round & Square Handrails Shipping Weight: 1
Material: 316 Grade Stainless Steel Warranty: Limited 1-year warranty
Shipping Method: Via third-party courier service
Product Overview +

Mount a round handrail directly to tempered glass railing panels with this 316 stainless steel bracket. The fixed round saddle holds the rail rigidly in one position, which makes it the right choice for level runs such as balconies, landings, mezzanines and pool enclosures. It installs through a single 3/4" (19 mm) hole in the glass, so no posts or framing are needed and the rail appears to float along the glass.

Key Features

  • Glass mount – installs through one 3/4" (19 mm) hole in the glass; no posts or framing
  • Fixed round saddle – rigid, no-play support for level handrail runs
  • Fits 1-1/2" to 2" (38–51 mm) round handrail, including FMF 42.4 mm handrail
  • Square-rail ready – swap the round saddle for a flat saddle
  • 316 marine-grade stainless – suited to exterior, poolside and coastal installs
  • Two finishes – Brushed Stainless or Matte Black

Specifications

  • Model: HRB-01G0
  • Mount type: Glass mount
  • Saddle: Fixed, round (flat option for square rail)
  • Glass hole required: 3/4" (19 mm)
  • Material: 316 marine-grade stainless steel
  • Finishes: Brushed Stainless (.SS), Matte Black (.BL)
  • Handrail size: 1-1/2" to 2" (38–51 mm) round tubing, incl. 42.4 mm (1.66")
  • Square / flat rail: Swap the round saddle for a flat saddle
  • Use: Interior and exterior
  • Sold as: Each (1 bracket)
  • Warranty: Limited 1-year

Installation Notes

  • The 3/4" (19 mm) hole must be drilled before the glass is tempered – include it on your glass fabrication order (see the Glass Fabrication PDF under Technical References).
  • Space brackets according to your local building code and the handrail manufacturer's guidance.
  • For stairs or ramps, use the Movable Saddle version (HRB-01AG) so the saddle follows the stair angle.

Pairs well with: 42.4 mm handrail, handrail elbows and end caps, Wall Mount Handrail Bracket – Fixed Round Saddle (HRB-01W0) for wall-side runs.

Technical References & Videos +
