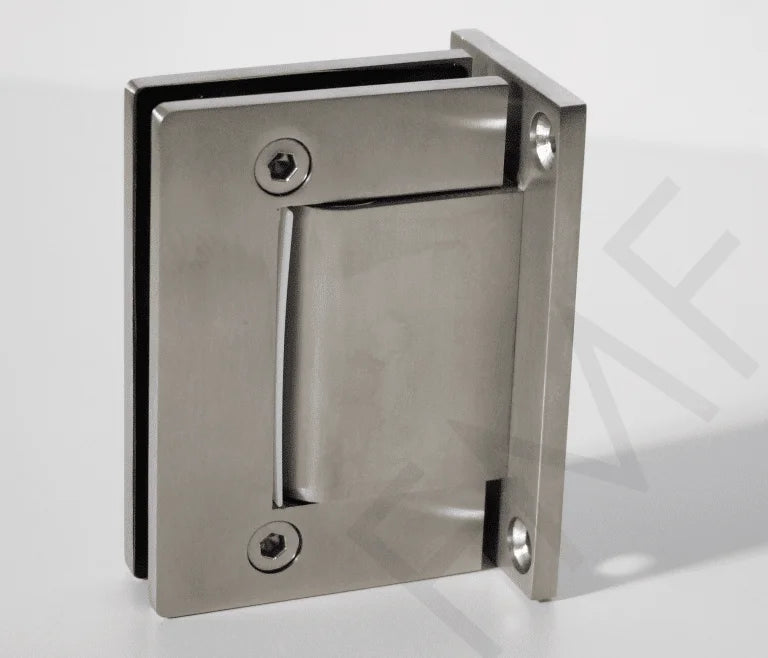

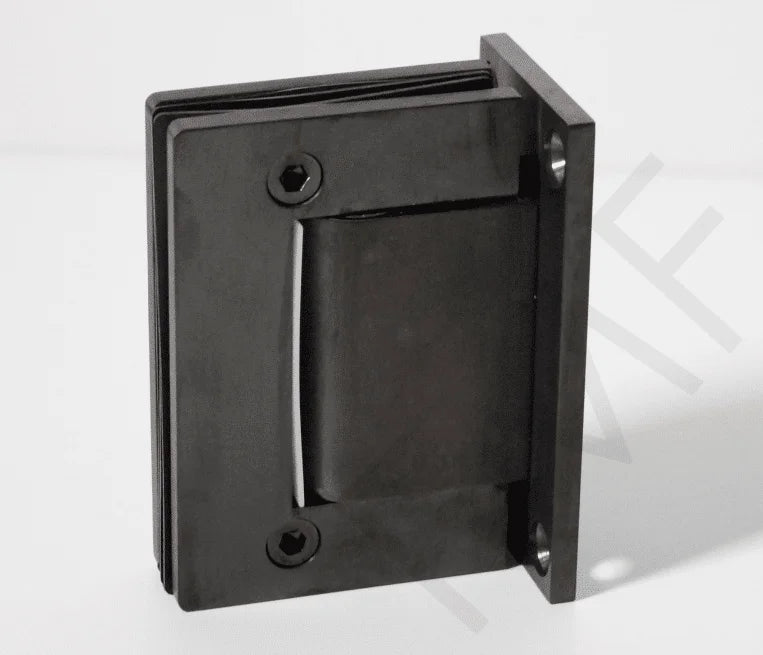

90° Hydraulic Wall Mount Hinge - Sold in Pairs

90° Hydraulic Wall Mount Hinge

Model: HYP-201

The 90° Hydraulic Wall Mount Hinge is a high-performance self-closing hinge ideal for interior glass doors in humid or high-temperature environments such as steam rooms, spas, and Turkish baths. With adjustable closing speed and a sleek aluminum body, this hinge supports frameless all-glass installations without the need for floor closers or overhead devices.

Key Features

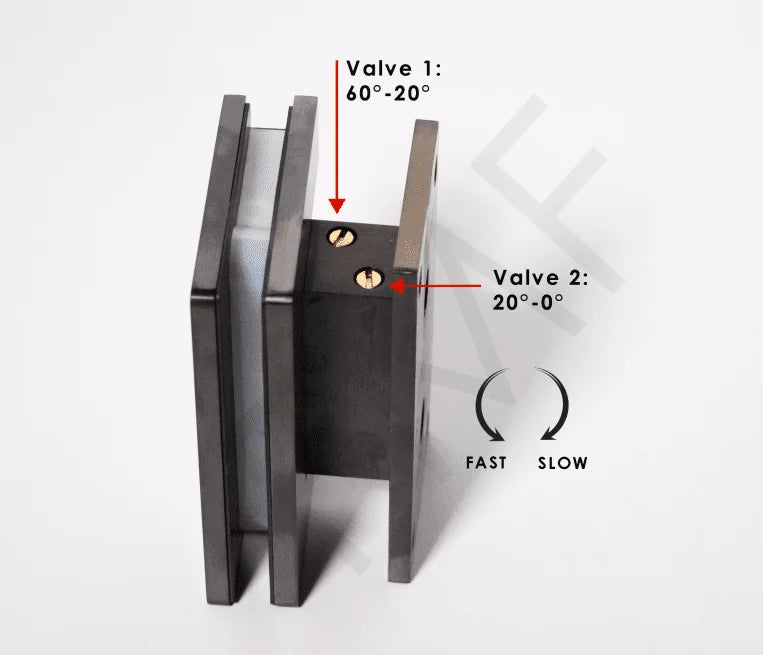

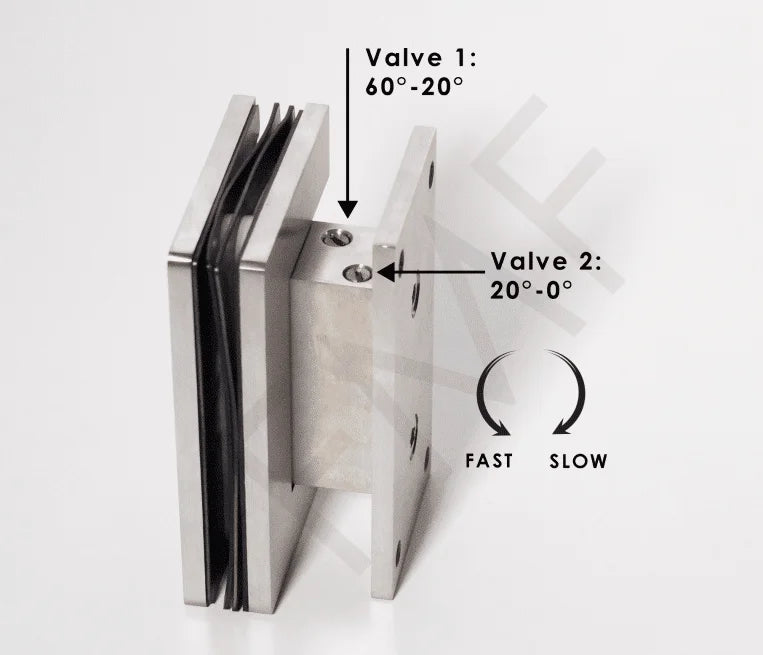

- Soft Closing- 20°-0°
(adjust by valve 2)
- Soft Closing- 60°-20°
(adjust by valve 1)
- Fast Closing- 90°- 60°

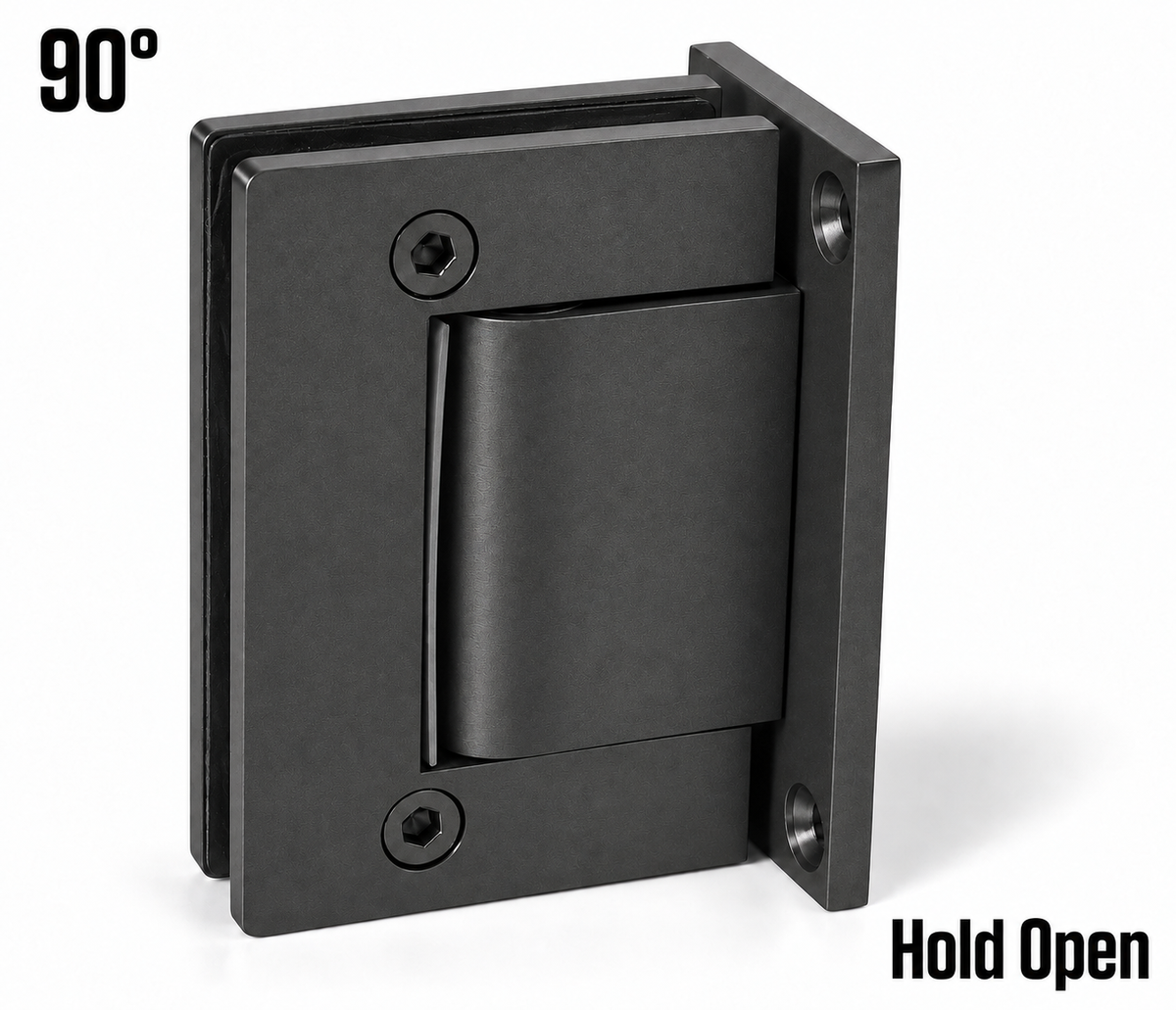

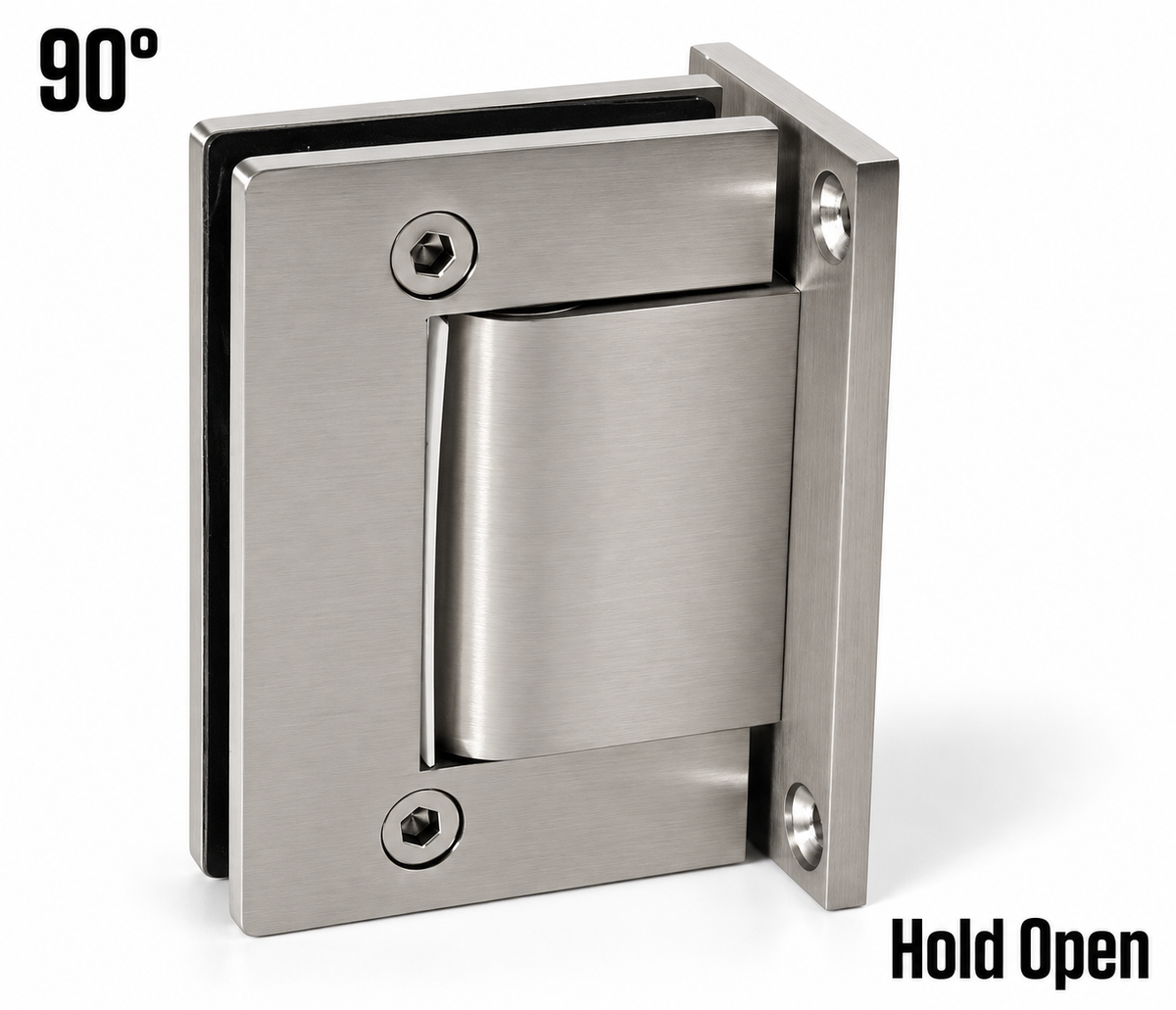

- HO (Hold open: 95°- 90°)
NH (No hold open)
- Adjustable Closing Speed – Integrated control valve for smooth, controlled door movement.

Specifications
- Glass Thickness: 10-12mm
- Max Door Weight: 60 KG
- Swing Range: 90° inward and outward
- Material: 304 Grade Stainless Steel
- Closing Type: Hydraulic self-closing
- Cut-Out: Required for installation
- Mount Type: Wall mount
