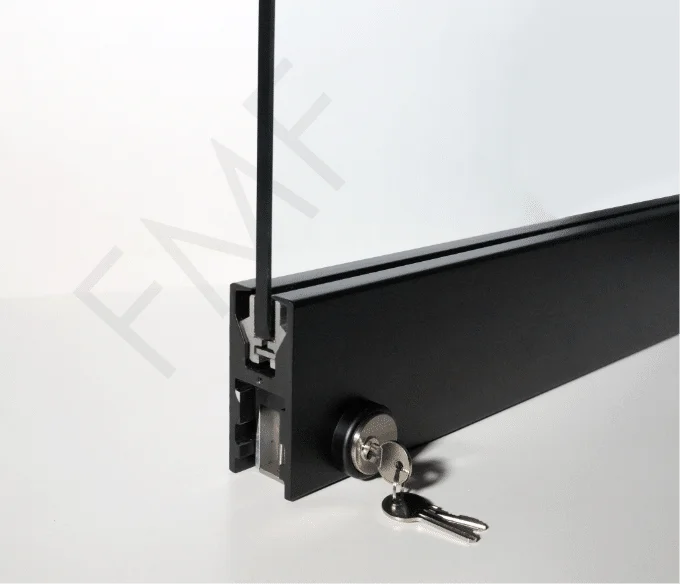

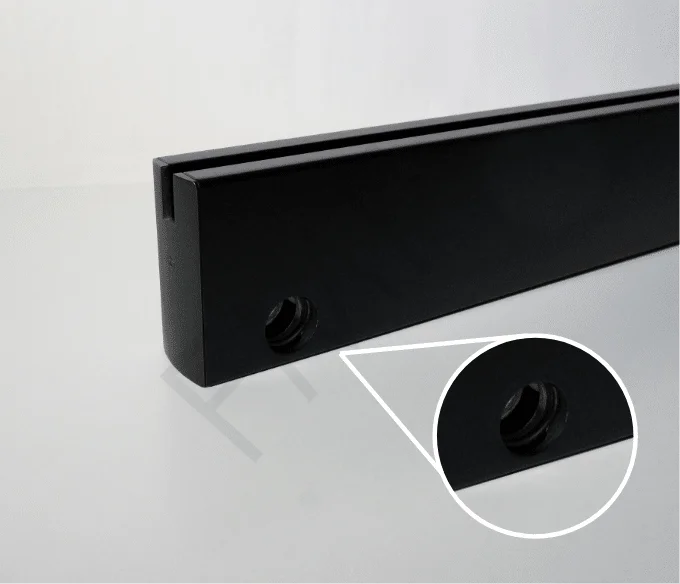

4″ Commercial Bottom Door Rail

Product Overview:
The FMF Commercial Bottom Glass Door Rail Profile offers a strong and reliable solution for frameless glass door installations. Its lock-free design ensures a sleek, modern appearance while maintaining high strength and durability. Ideal for commercial, residential, and hospitality applications, this rail provides a robust mounting solution with a high weight capacity.

Key Features:

• Durable Construction: Crafted from 6060 T6 aluminum for superior strength and corrosion resistance.
• Clean Aesthetic: Lock-free design for a modern, frameless look.
• Easy Installation: No special tools required, simplifying the installation process.
• Precise Dimensions: Designed to fit various spaces with a compact profile.
• High Weight Capacity: Supports up to 100 kg of weight, ensuring stability and reliability.
• Glass Compatibility: Suitable for 10mm–12mm tempered glass.

Technical Specification:

• Material: 6060 T6 Aluminum
• Dimensions (L × H × W) HYP-R10036: 35 15/16″ (L) × 4 1/4″ (H) × 2 1/16″ (W).
• Dimensions (L × H × W) HYP-R10038: 37 3/4″ (L) × 4 1/2″ (H) × 2 1/16″ (W)
• Glass Thickness: 10mm – 12mm Tempered Glass
• Lock Option: Optional
• Load Capacity: Up to 100 kg (500,000 Cycle Tests)
• Packaging Dimensions HYP-R10036: 41″ (L) × 4 1/2″ (H) × 7 1/2″ (W)
• Packaging Dimensions HYP-R10038: 44″ (L) × 5″ (H) × 8″ (W)
• Gross Weight: 21 lb

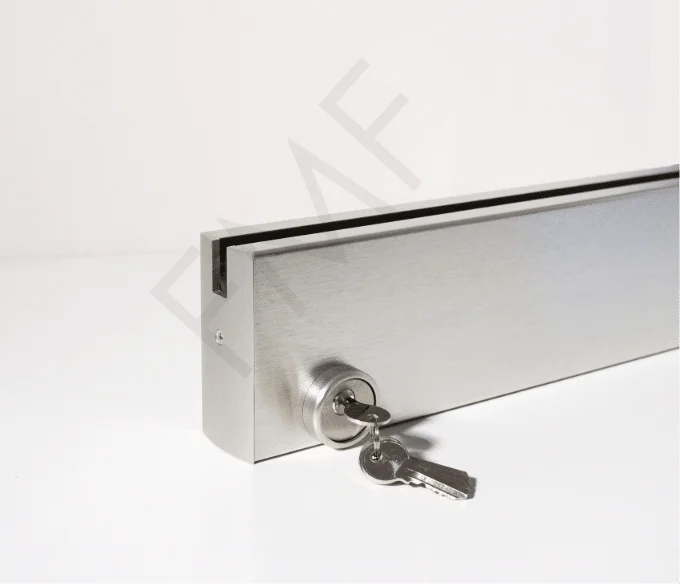

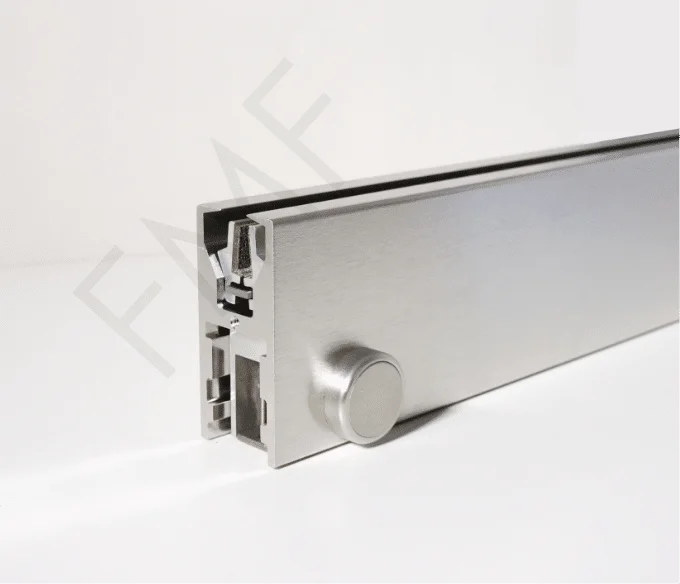

• Finish Options: Matte Black, Brushed Nickel

Installation Instructions:

• Preparation: Ensure all surfaces are clean and level before installation.
• Measurement: Mark the positions for the rail based on door width and height.
• Drilling: Drill holes for rail mounting (no special tools required).
• Placement: Position the rail and align it with the glass door.
• Securing: Attach the rail securely and ensure the glass door is stable.
• Final Inspection: Check for proper alignment and smooth operation of the door.

Maintenance & Care:

• Clean regularly with a soft cloth and mild cleaning solution to maintain finish and appearance.
• Avoid using abrasive materials that may damage the surface.
• Periodically check that mounting screws are tightened and the rail is securely fixed.

Date of Release:

February 11 2025

Warranty Period:

1 Year Limited Waranty
