12MM Standard U-Channel

12MM Standard U-Channel
Model: UC12

The 12MM Standard U-Channel is designed for fixed glass panel installations where secure support, clean appearance, and reliable glass retention are required. This U-channel supports 1/2" (12 mm) tempered glass and is wet glazed with clear silicone to hold the glass securely in place. Its 3/4" (19 mm) leg profile provides added support for frameless shower enclosures, glass partitions, and other fixed panel applications.

Key Features

• Deep Profile Design: 3/4" (19 mm) leg profile helps secure fixed glass panels firmly in place.
• Glass Compatibility: Designed for 1/2" (12 mm) monolithic tempered glass.
• Wet Glazed Installation: Glass is secured using clear silicone for a clean and stable fit.
• Clean Finished Look: Provides a neat and professional appearance for frameless glass installations.
• Long Length: 144" length allows coverage for a variety of fixed glass panel applications.

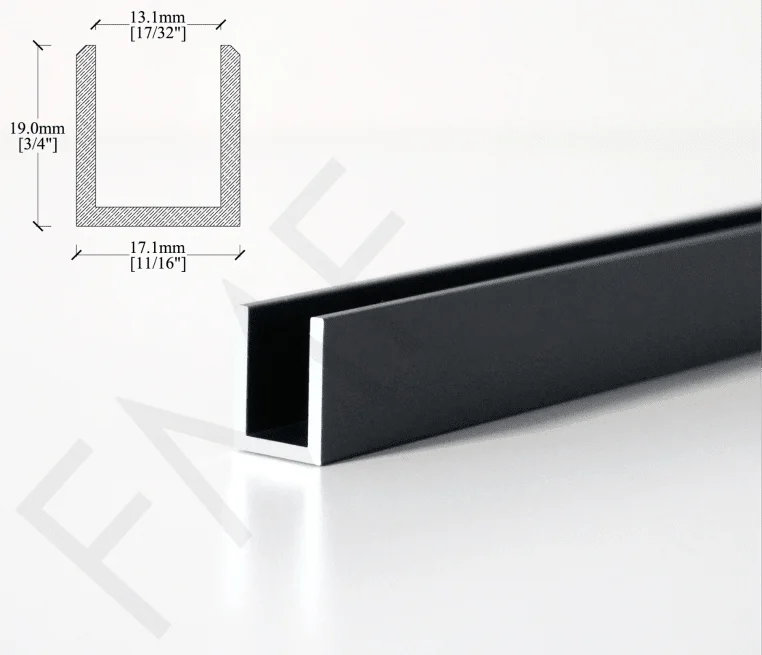

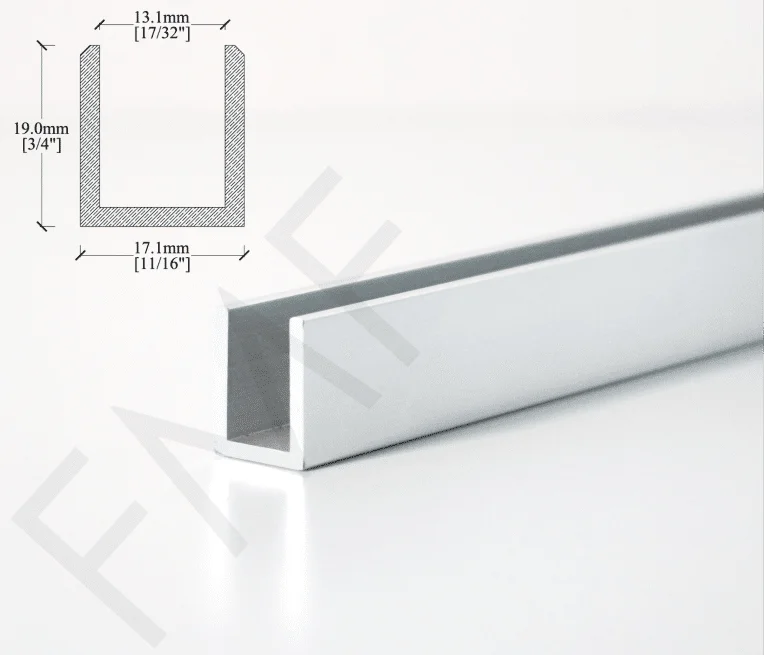

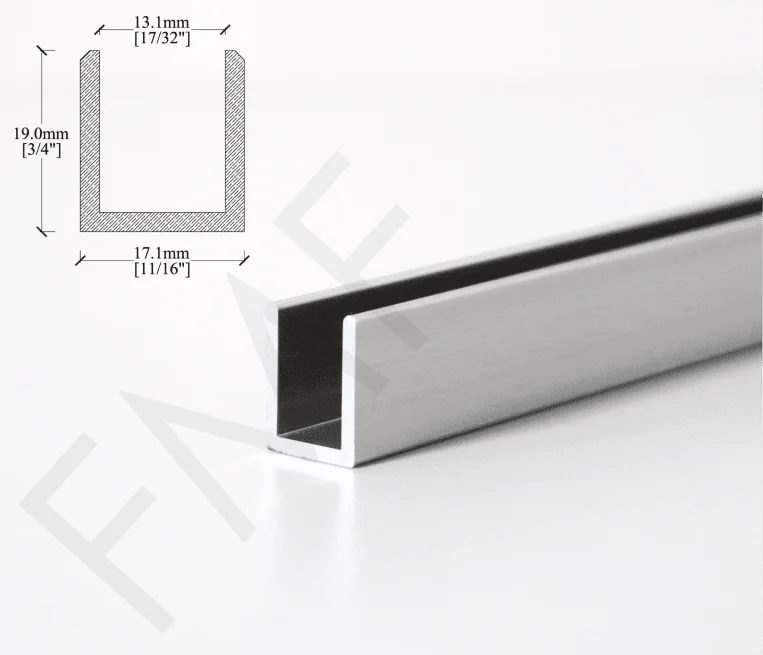

Specifications

• Profile: Deep
• Glazing Thickness: 1/2" / 12 mm
• Glazing Pocket Width: 0.518" / 13 mm
• Height: 3/4" / 19 mm
• Width: 11/16" / 17.1 mm
• Length: 144"
• Glass Type: Monolithic tempered glass
• Installation Method: Wet glazed with clear silicone

Installation & Support

• Ease of Installation: Designed for wet glazing with clear silicone to secure the glass panel.
• Application: Suitable for fixed glass panels, shower enclosures, and glass partition systems.
• Glass Fabrication: Use with properly prepared 1/2" tempered glass panels.
• Shipping: Securely packed and shipped via trusted third-party couriers across North America.
