Tilt-Lok Adjustable Base Shoe Railing System

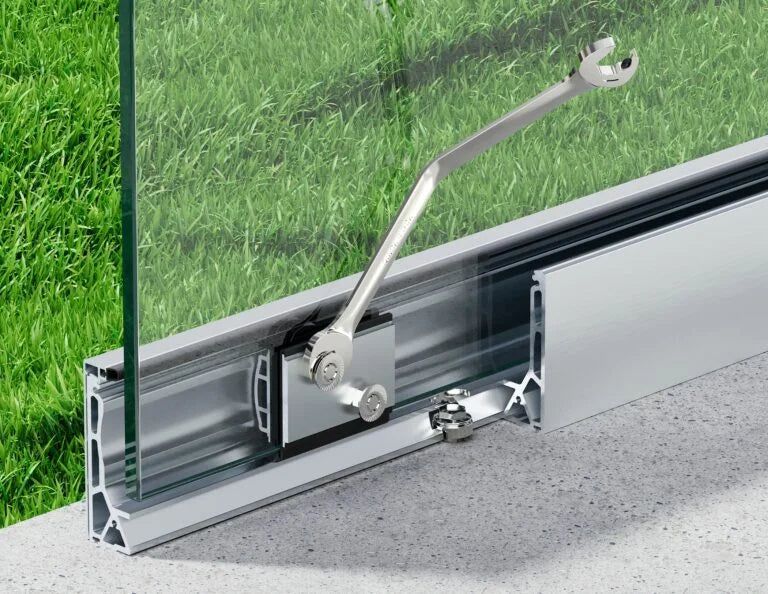

Tilt-Lok Adjustable Base Shoe is designed to provide a secure, clean, and professional solution for mounting tempered glass panels in both architectural and interior applications. With its integrated alignment system, it allows for precise adjustment during installation while delivering the strength and stability required for modern glass railing and partition systems. Its sleek design makes it an excellent choice for both residential and commercial projects.

Key Features
- Top mount Tilt-Lok Adjustable Base Shoe Railing System

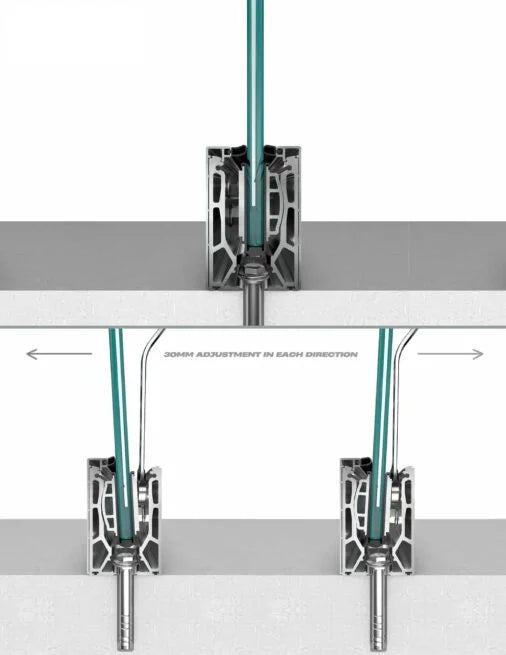

- 30mm tilt adjustment back and forward
- Suitable for glass thickness from (12 mm to 19 mm)
- Standard length: 10 FT
- Designed for glass height 1-1/2" above ground level
- High strength pure aluminum construction

Available Finishes
- Brushed Stainless Steel
- Matte Black

Kit Includes
- 10 FT base shoe with top-fix fabrication
- Aluminum or stainless steel claddings and gaskets – 2 pcs
- Tilt-Lok clamp pack – 10 pcs
- Joining pins – 4 pcs
- End caps – 2 pcs
- 3.94" gap cover – 1 pc
- Stabilizer washers – 10 pcs
- Flat washers – 10 pcs
