Office Sliding Door System Components (Bar Not Included)

LSK-SERIES Wall Mount Sliding Door System Kit
Model: LSK-02W

Built for performance and elegance, the LSK-SERIES Wall Mount Sliding Door System Kit offers a smooth, modern sliding solution for single glass doors. Ideal for interior applications in both residential and commercial environments, this wall-mounted system combines minimalist design with durable construction to deliver quiet, effortless door movement.

Key Features
- Single Sliding Design: Designed to support a single glass door sliding along a fixed stainless steel bar.
- Wall-Mounted System: Mounts directly to a reinforced wall—no top track or header required.
- Anti-Lift Rollers: Integrated anti-lift mechanism helps keep the door securely on track while in motion.
- Adjustable Roller Height: 1/8" (3 mm) vertical adjustment allows fine-tuning for perfect alignment.
- Flexible Mounting Options: Includes both surface and flush mount roller fittings to suit a variety of aesthetics.
- Glass Compatibility: Designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass only.

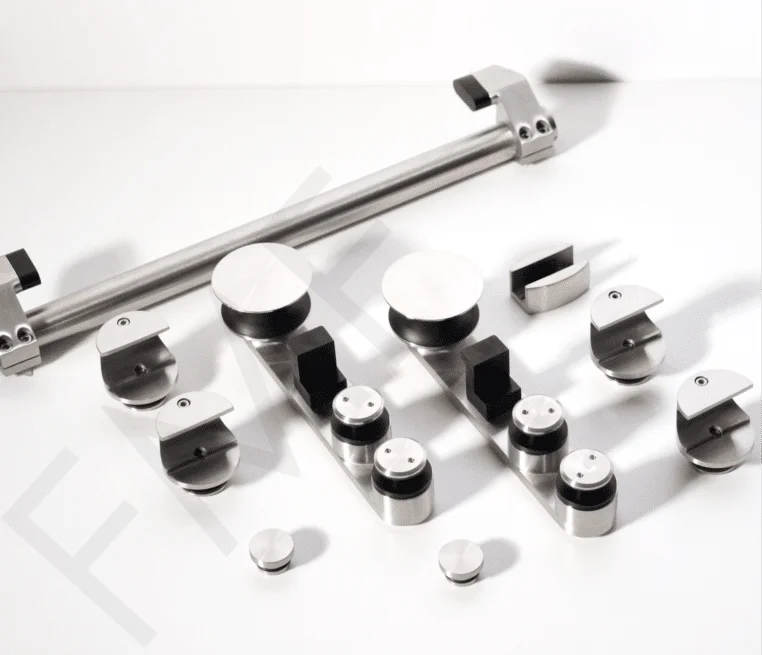

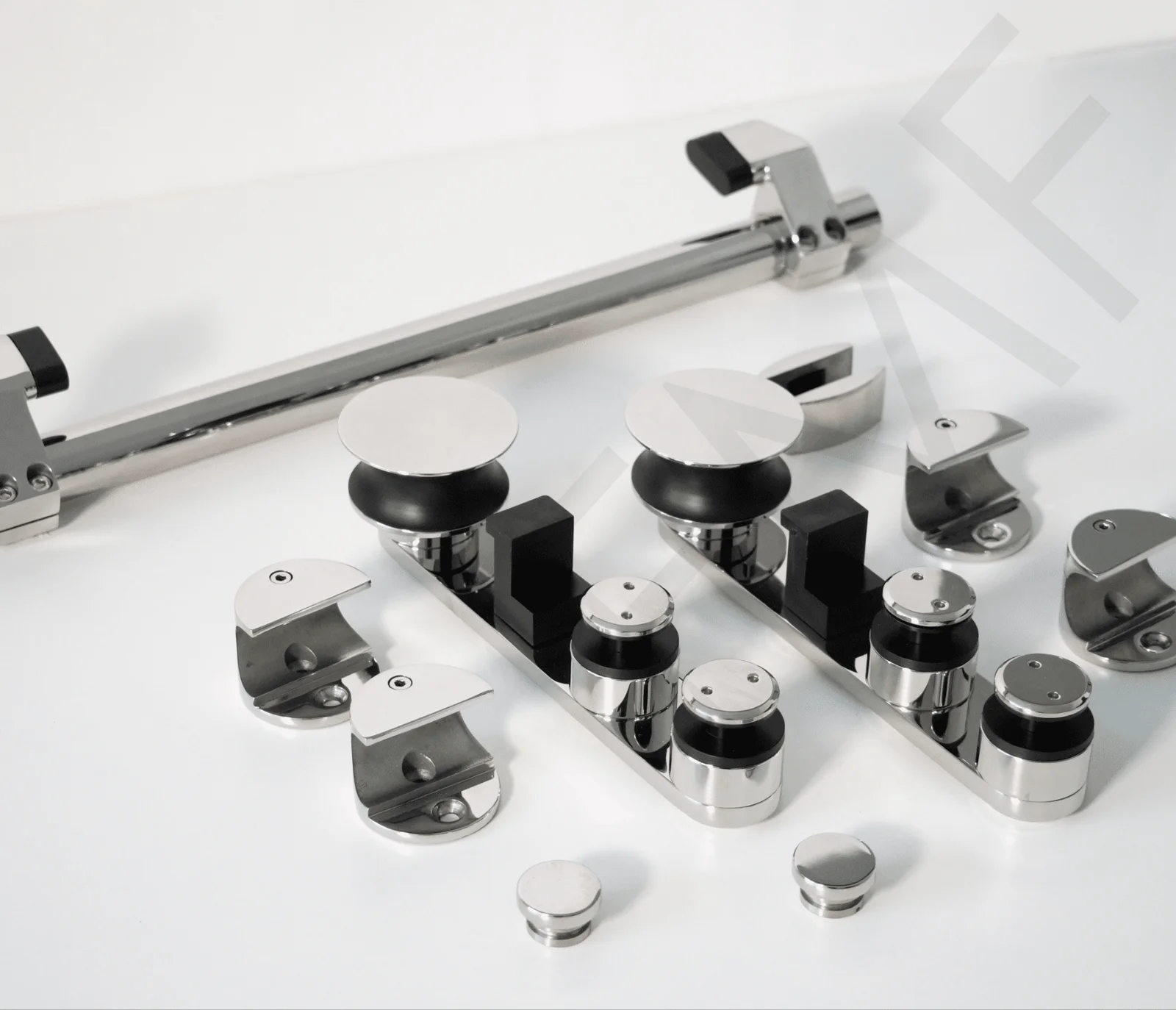

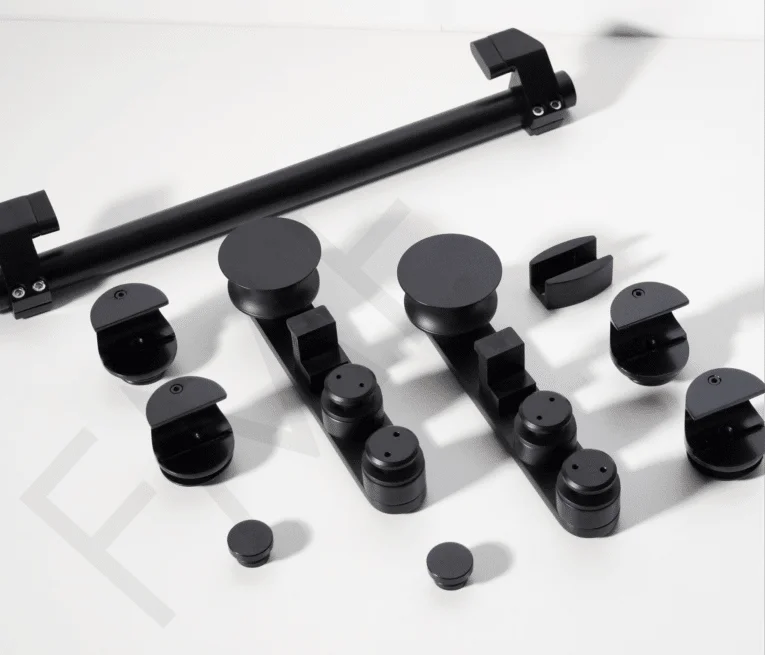

Kit Contents
- 2 × Anti-Lift Top Rollers (Surface & Flush Mount Options Included)
- 2 × Glass Door Stops
- 4 x Mounting Brackets
- 1 × Wall-Mount Track Bar (Stainless Steel) sold separately
- 2 × End Caps
- 1 × Floor Guide
- Installation Hardware: Screws, anchors, Allen key
- Fabrication Diagram: Included to assist with installation and glass prep

Specifications
- Material: 316-Grade Stainless Steel
- Glass Thickness Compatibility: 10–12 mm (3/8" or 1/2") Tempered Glass
- Weight Capacity: Up to 100KG per door (depending on wall structure and installation)

Installation & Support
- Ease of Installation: All necessary mounting hardware and instructions are included for a straightforward setup.
- Warranty: Covered by a limited 1-year manufacturer’s warranty.
