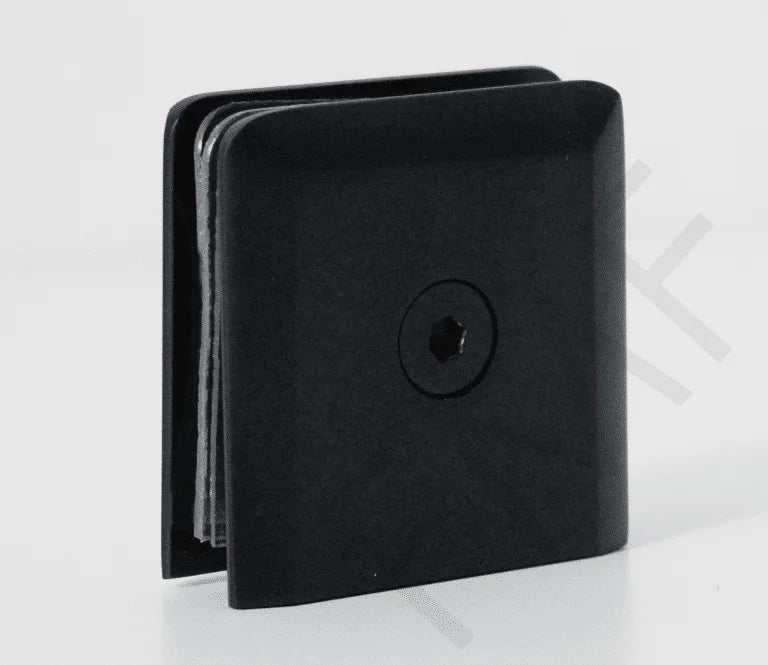

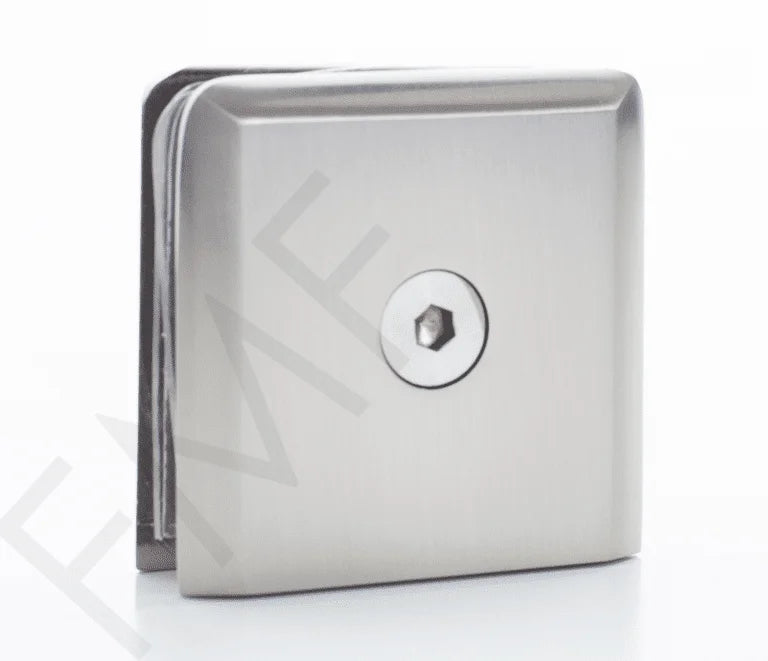

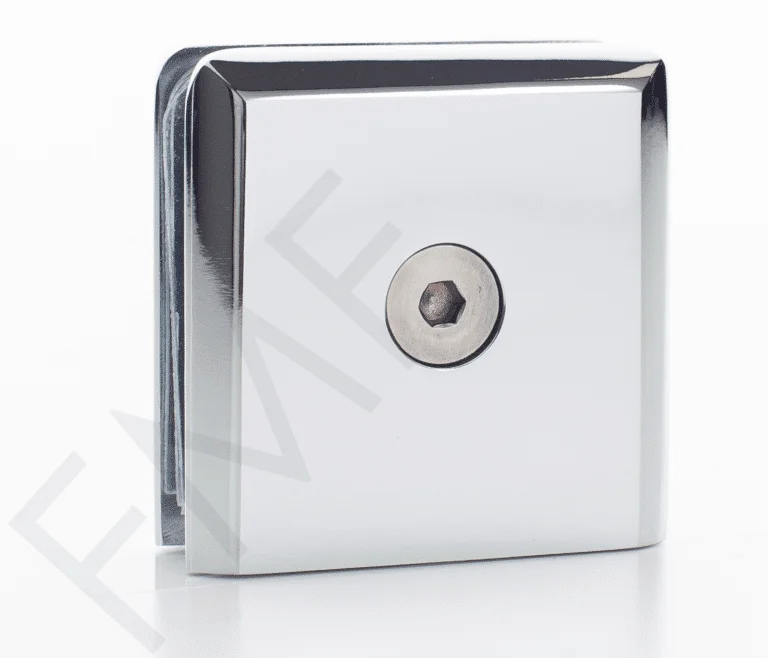

Bevelled Glass Clamp

Beveled Single-Hole Glass Clamp
Model: C831

The C831 Beveled Single-Hole Glass Clamp is designed to secure fixed glass panels in frameless shower enclosures, providing a modern, all-glass aesthetic. With its subtle beveled profile and solid brass construction, this clamp offers a clean alternative to U-channels, enhancing both the appearance and structural integrity of your shower design. Ideal for mounting glass panels to walls, ceilings, or floors with a minimal gap and sleek finish.

Key Features
- Wall Mount Design – Secures fixed glass panels to walls, floors, or ceilings with a minimal 3/16" (5 mm) clearance.
- Solid Brass Construction – Provides lasting strength and corrosion resistance in wet environments.
- Glass Compatibility – Supports 3/8" to 1/2" (10–12 mm) monolithic tempered glass.
- Beveled Profile – Offers a refined alternative to traditional U-channels for a more open and elegant appearance.
- Glass Fabrication Required – Designed for 3/4" (19 mm) holes or notched glass, depending on the model.
- Clean Finish – Use with clear silicone for a discreet, water-resistant seal.

Specifications
- Material: Solid Brass
- Glass Thickness Compatibility: 3/8" to 1/2" (10–12 mm)
- Mount Type: Wall, floor, or ceiling
- Glass Fabrication: C831 require 3/4" holes
- Clearance: 3/16" (5 mm) between glass and wall
- Adjustment: Fixed (non-adjustable)

Installation & Support
- Ease of Installation: Includes mounting screws and gaskets; glass fabrication is required.
- Warranty: Backed by a limited 5-year manufacturer warranty.
- Shipping: Delivered via reliable third-party couriers across North America.
