40x40mm Square Cap Rail for Glass Railing – 16.4 ft

40x40mm Square Cap Rail for Glass Railing – 16.4 ft
Model: RAILC4040-16

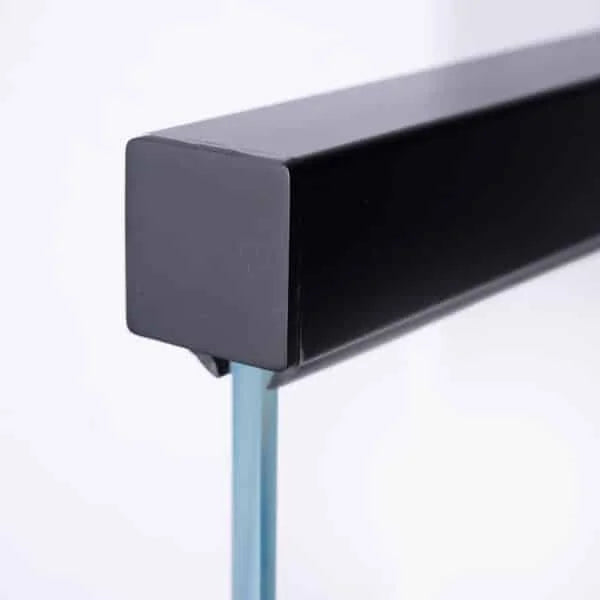

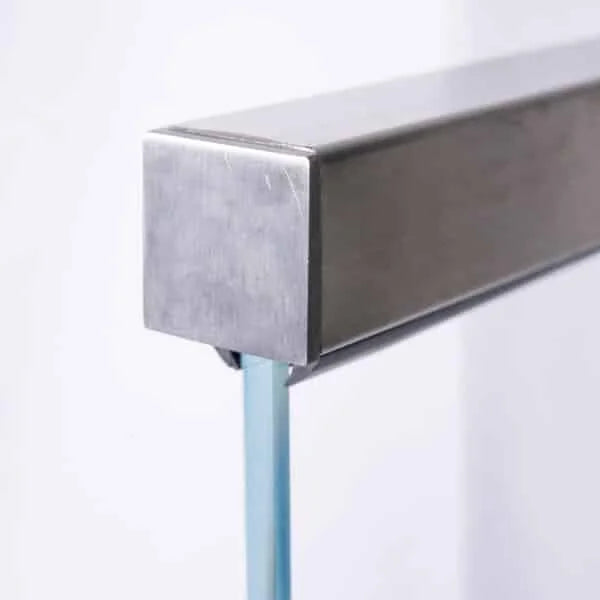

FMF 40x40mm square cap rail is the stainless steel handrail that sits on top of frameless glass railing panels. It ties the panels into one run, gives a solid grip, and finishes the top edge of the glass. Each length is 16.4 ft (196.8") and can be cut to size. Line the rail with an FMF rubber gasket to fit 10 mm (3/8") or 12 mm (1/2") glass.

Features and specifications

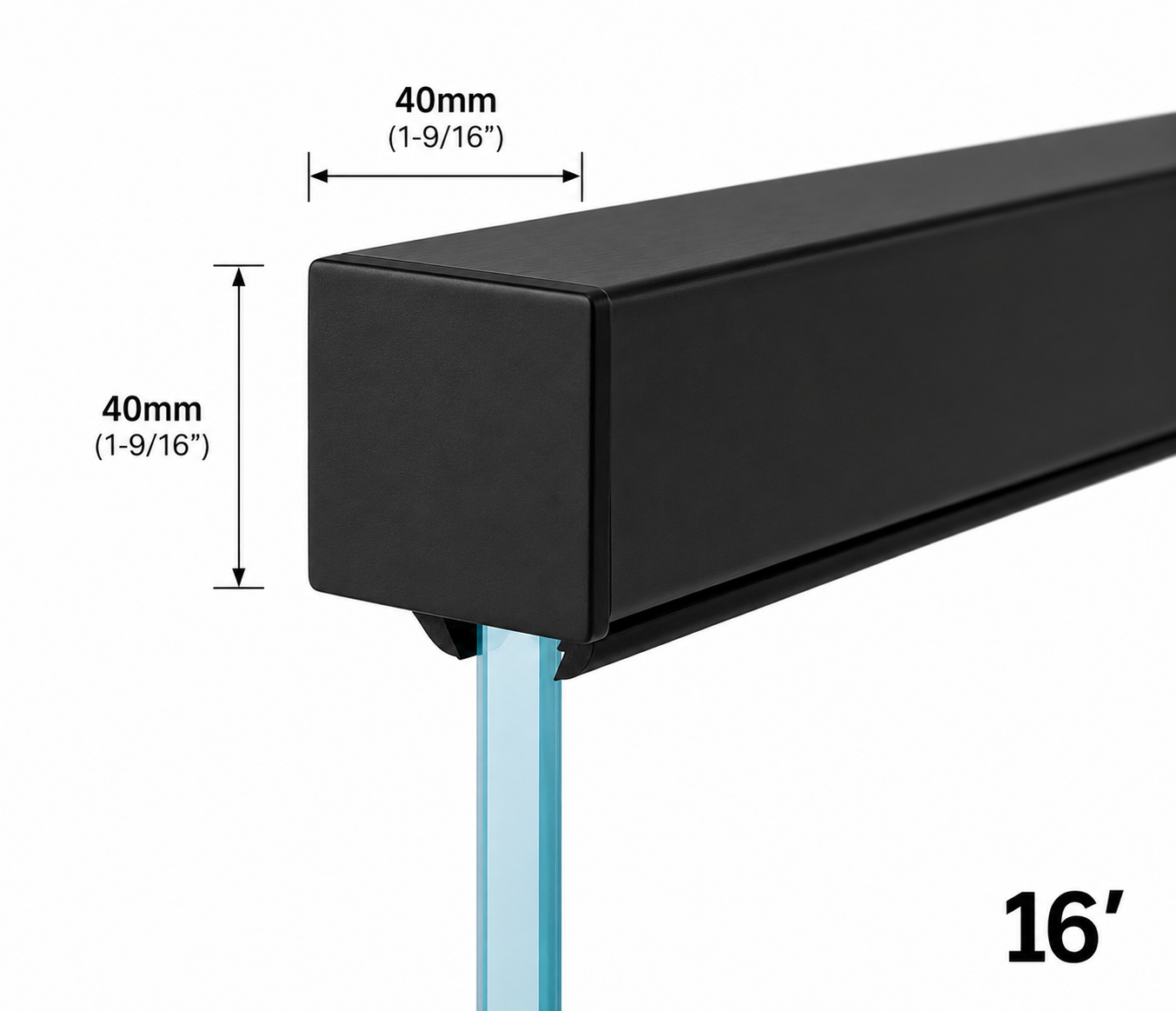

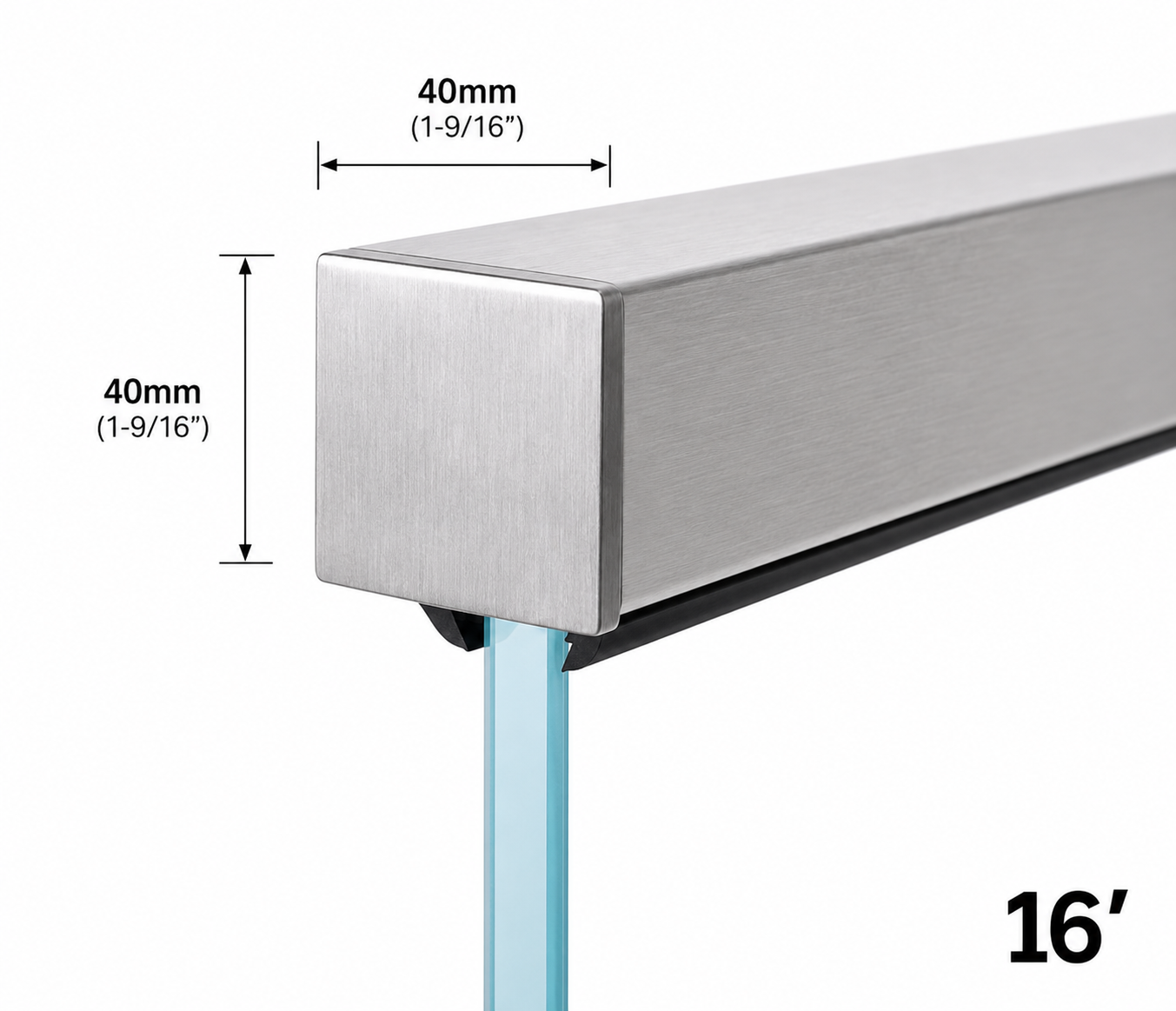

• Profile: 40 × 40 mm (1-5/8" × 1-5/8") square, 16.4 ft (196.8") length
• Glass: Fits 10 mm (3/8") or 12 mm (1/2") tempered glass with the matching FMF rubber gasket, sold separately
• Cut to size: Cut to your length on request
• Shipping: Full 16.4 ft lengths are for pickup. Shipped orders are cut to 96" (8 ft) or less because of courier length limits
• Fittings: Matching elbows, connectors, end caps and wall fittings are sold separately
• Material: 316 stainless steel (Brushed Stainless) / 304 stainless steel (Matte Black)
• Finish: Matte Black or Brushed Stainless
• Use: Interior and exterior, residential and commercial
• Warranty: Limited 1-year warranty

In the box: 1 × 40x40mm square cap rail, 16.4 ft length (or cut length)
