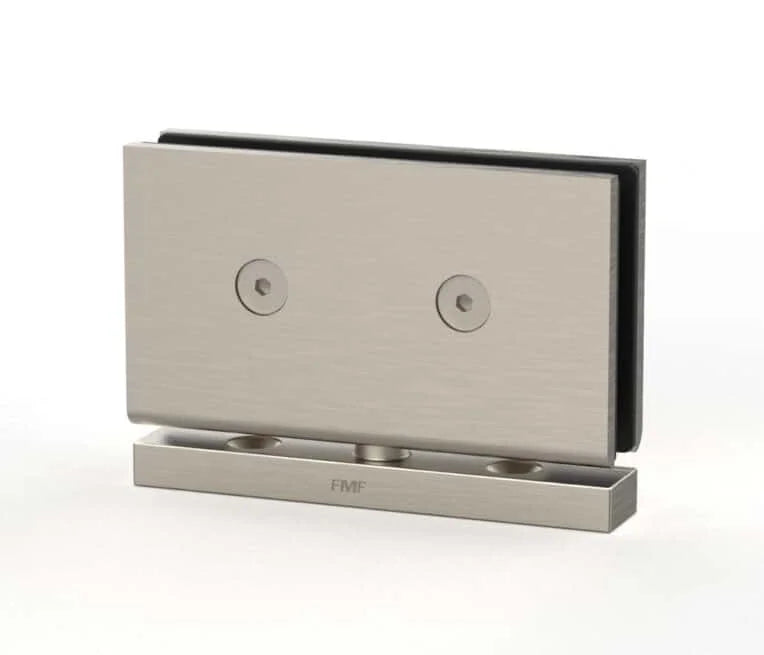

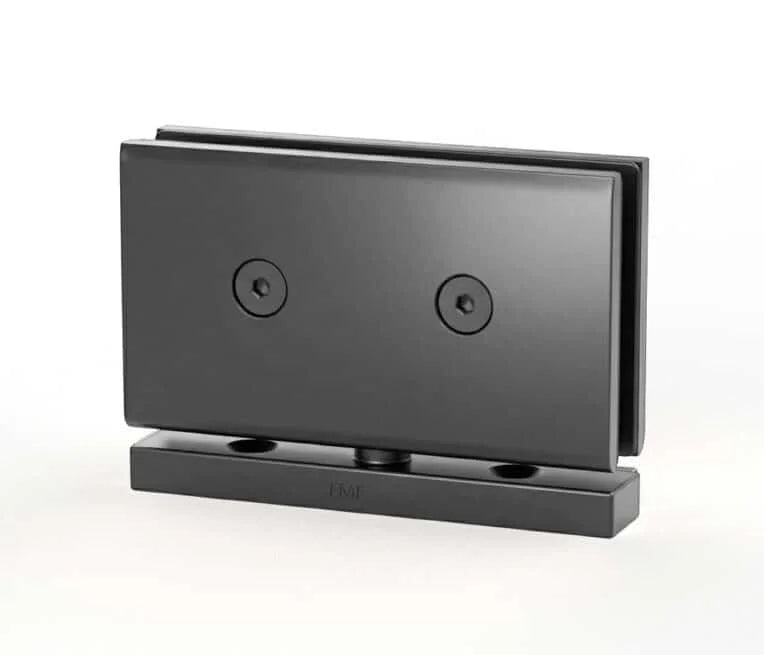

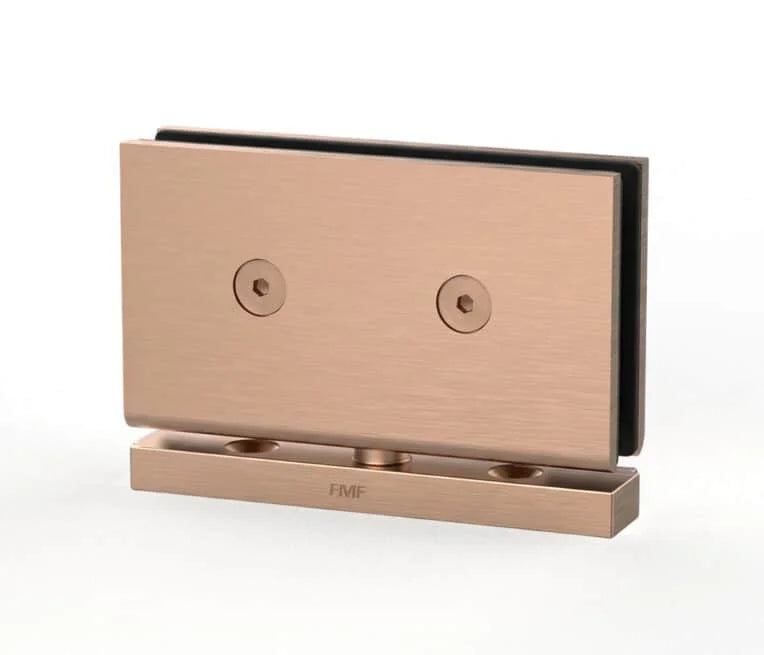

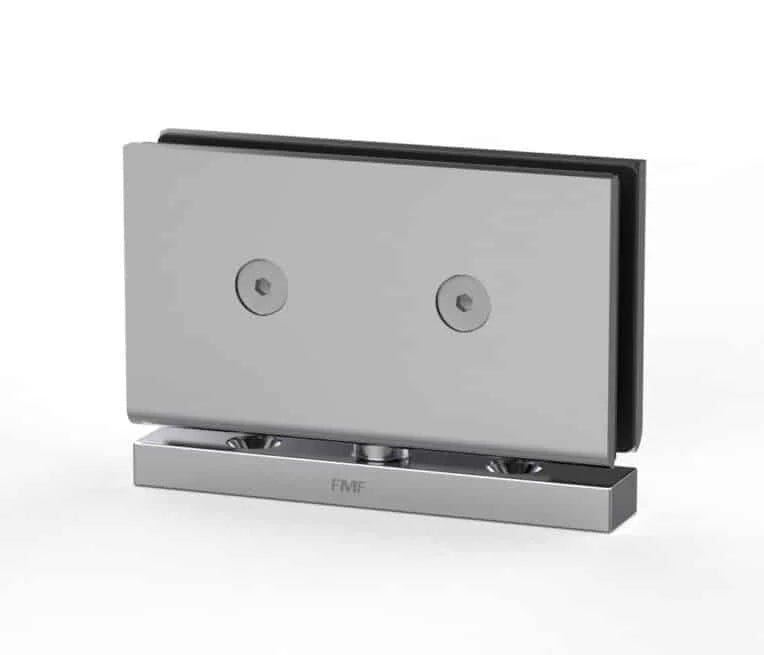

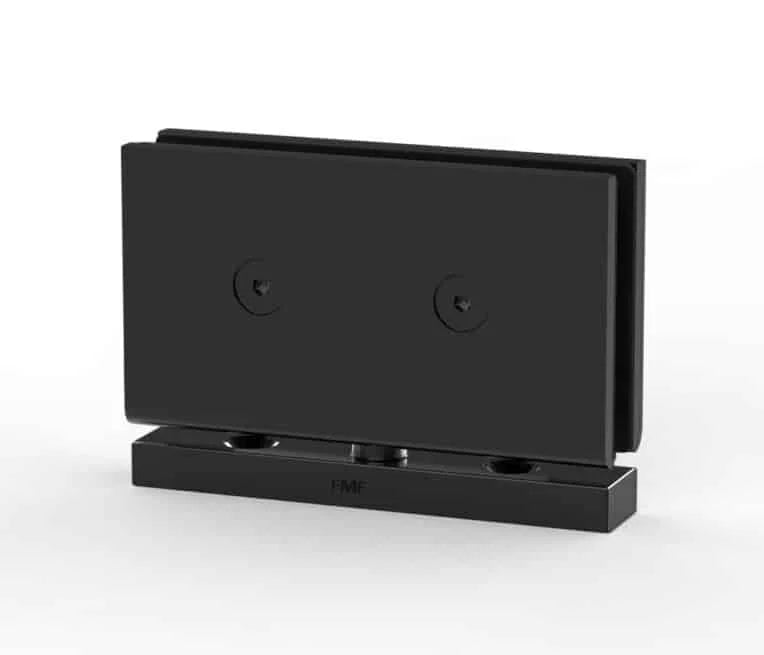

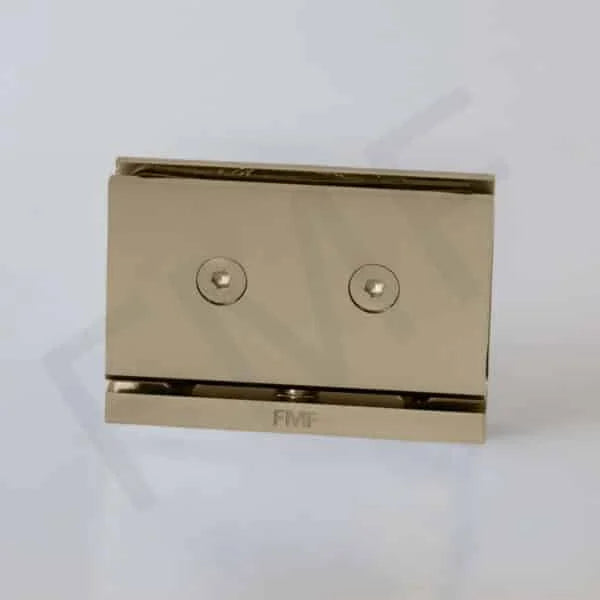

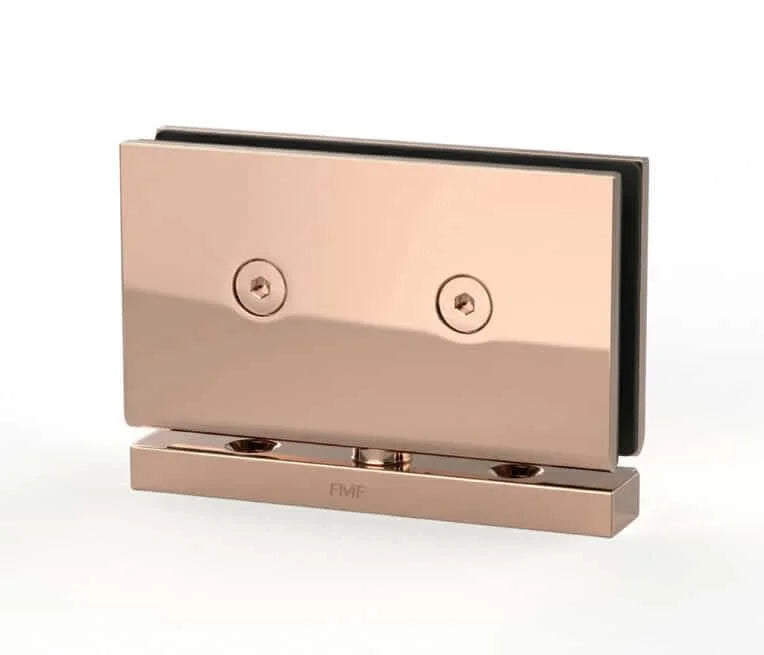

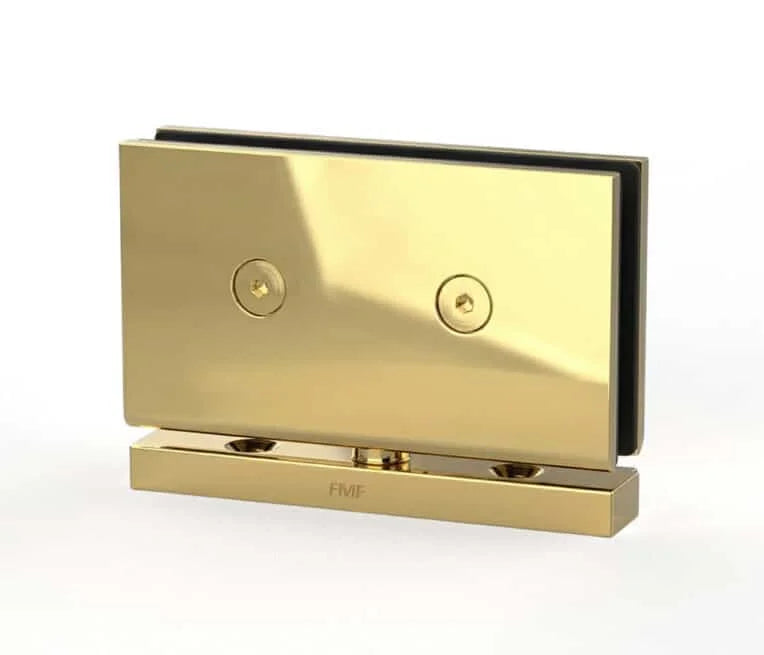

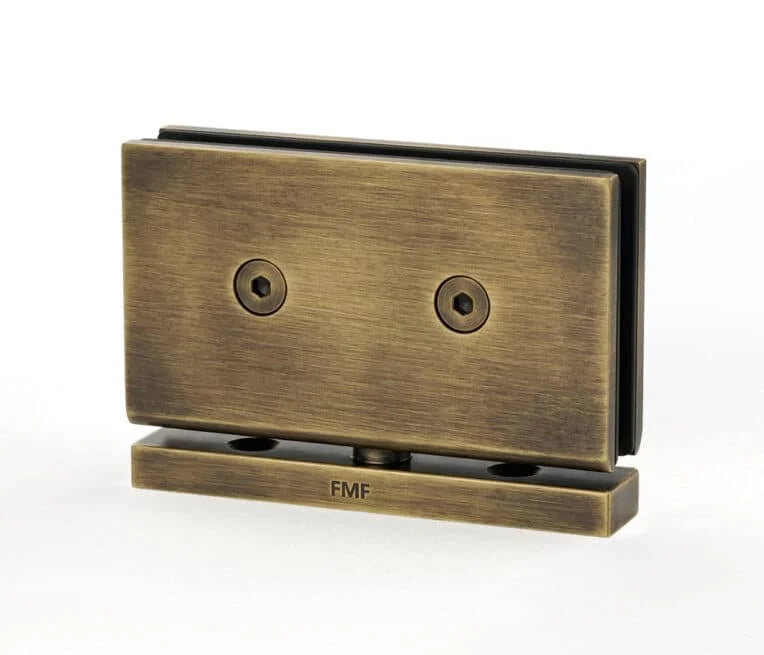

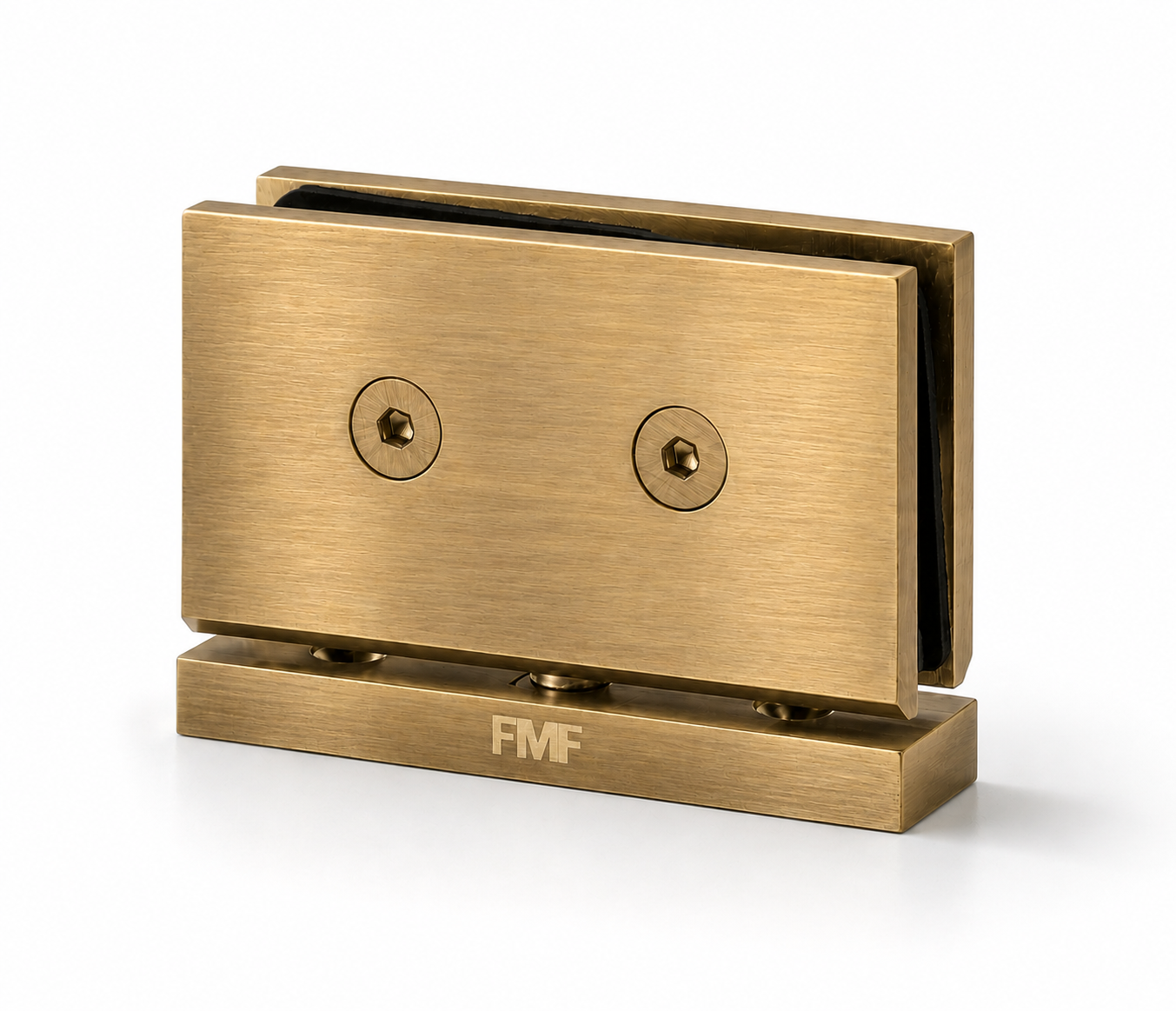

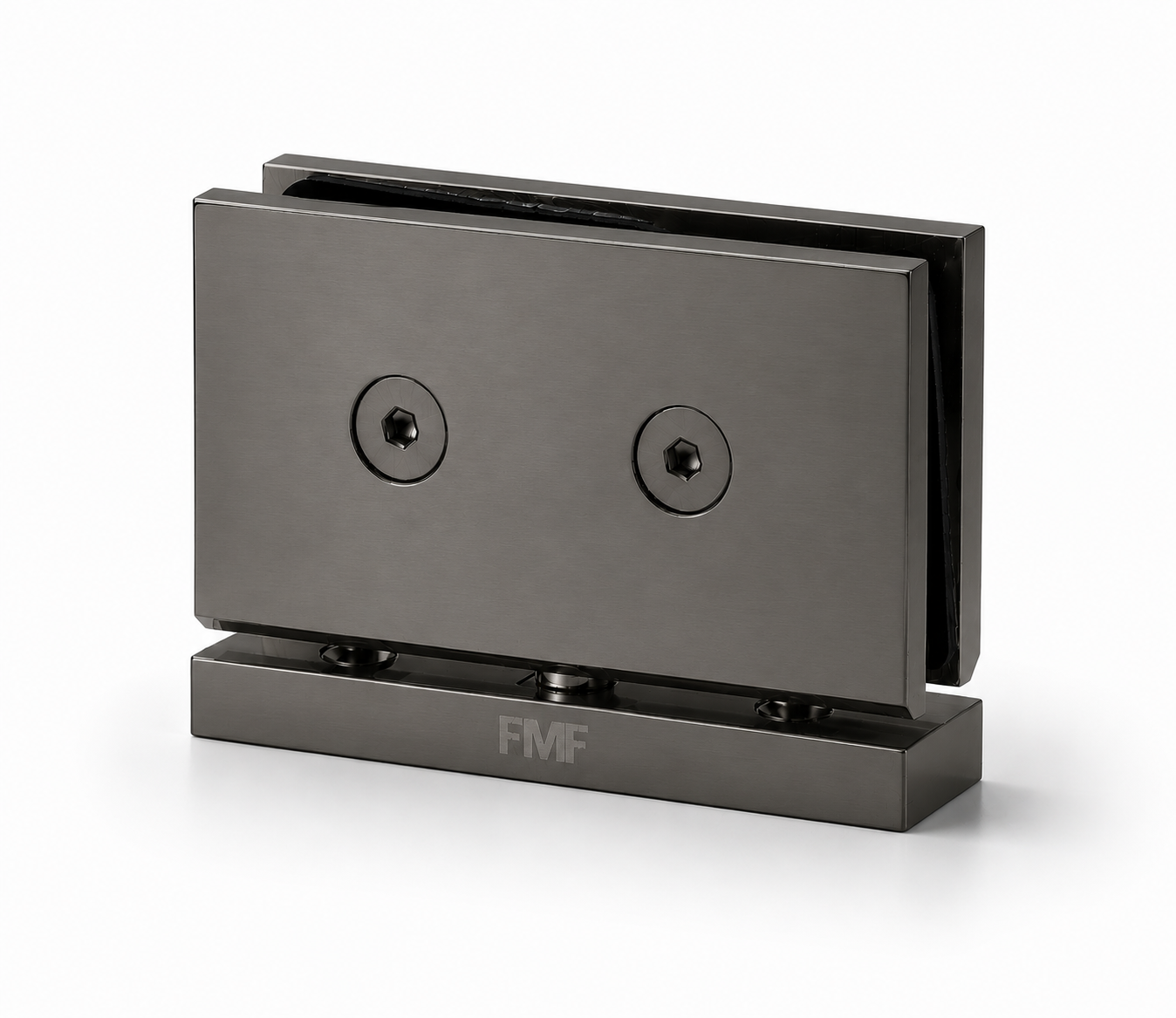

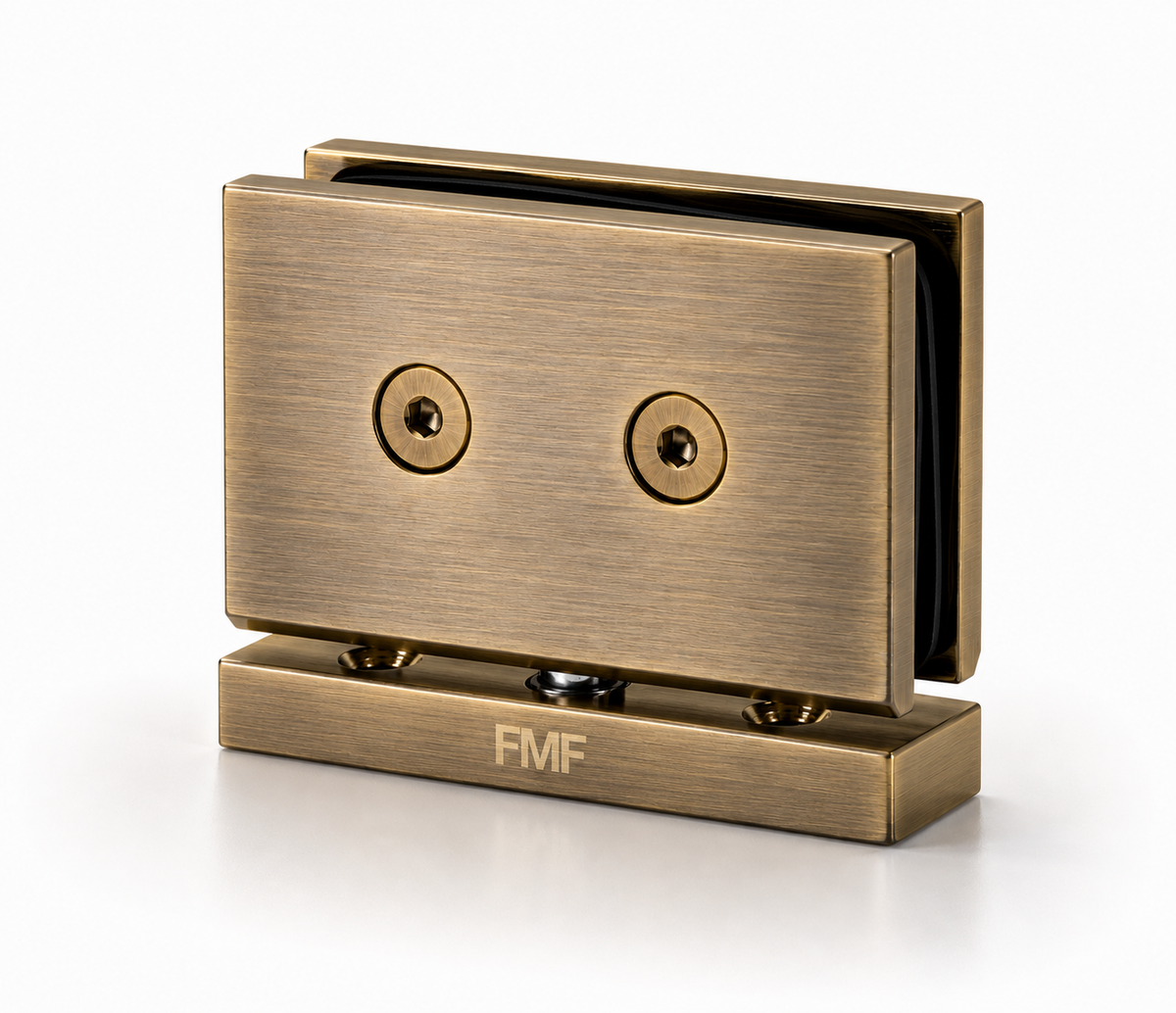

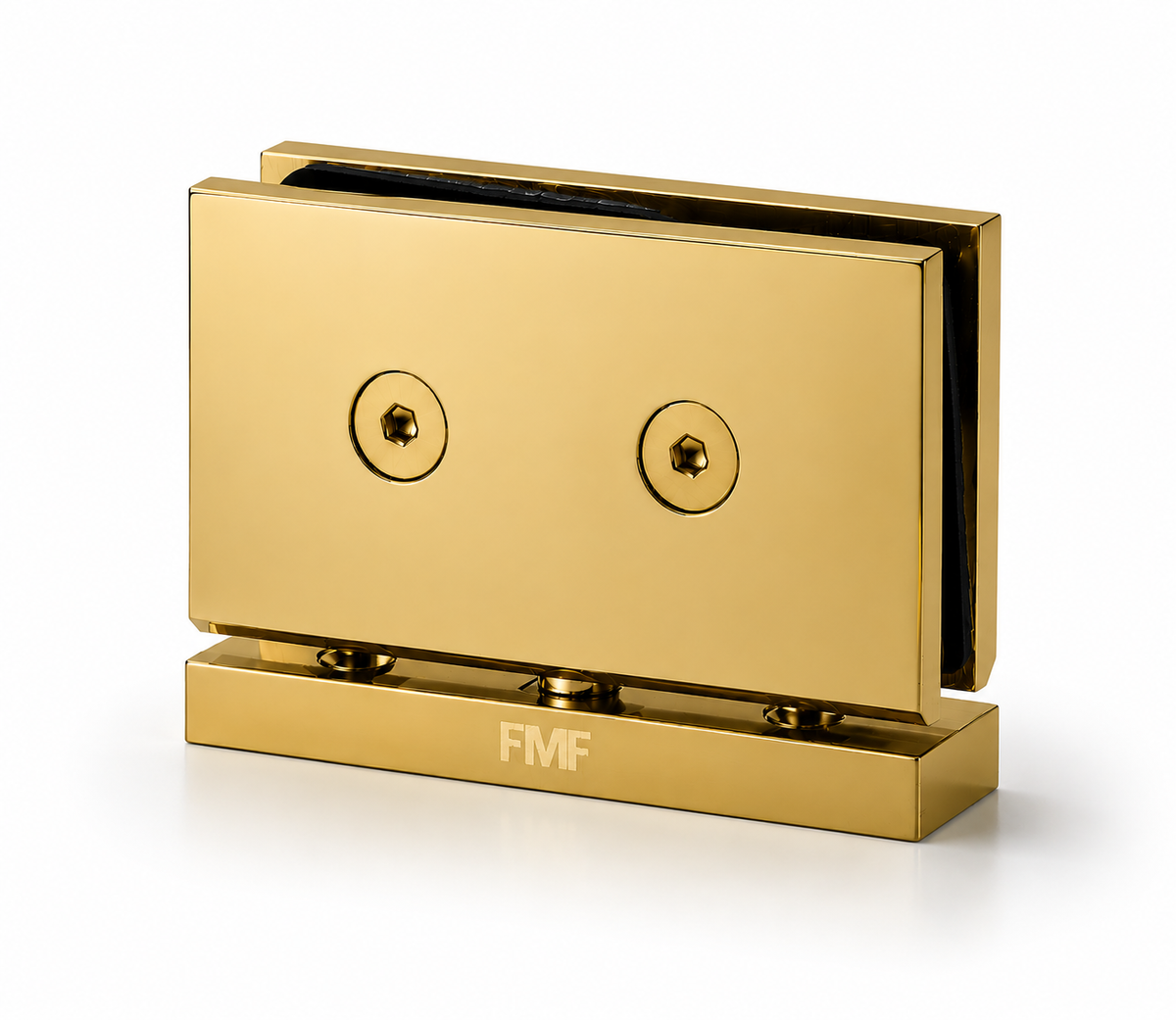

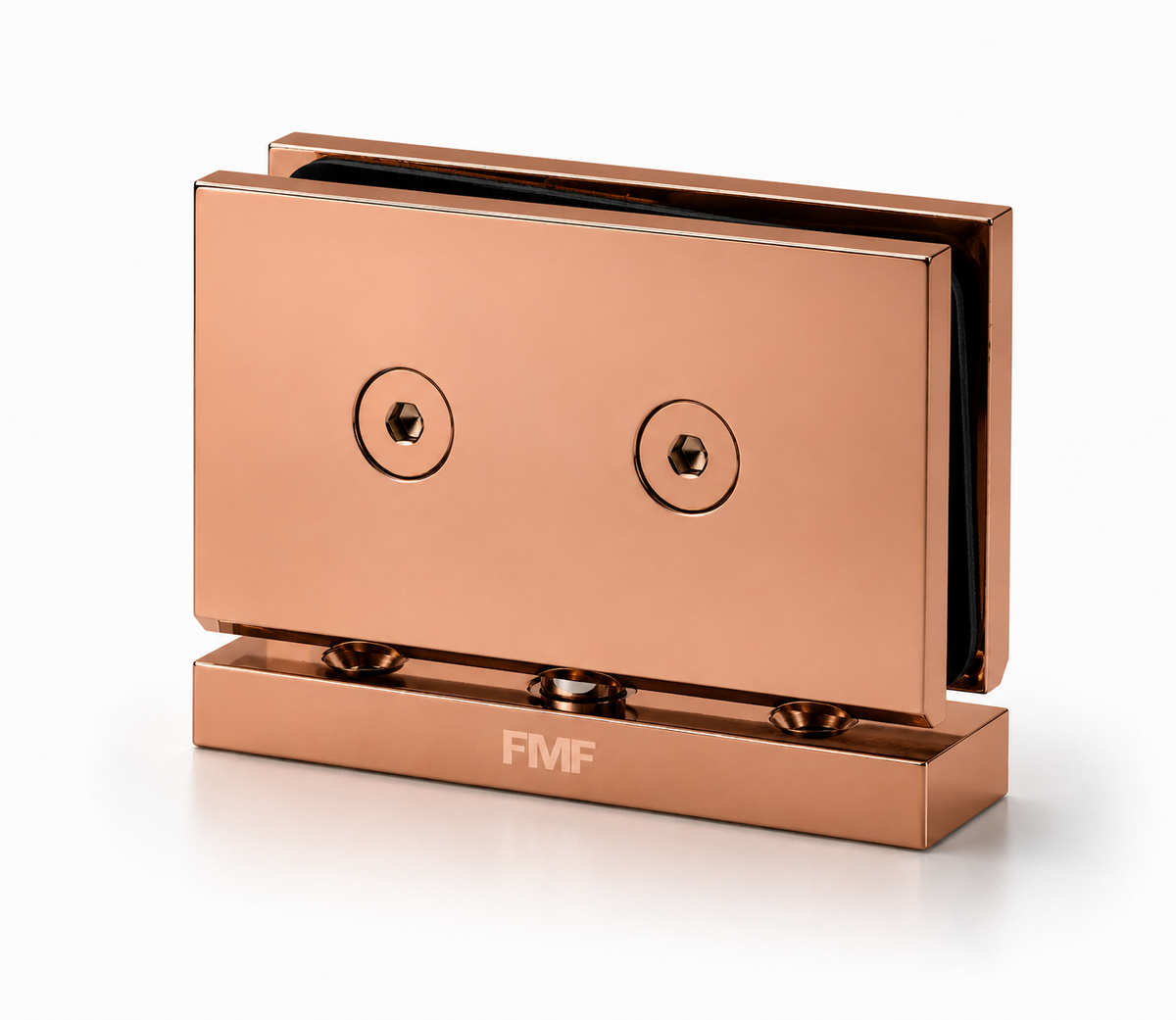

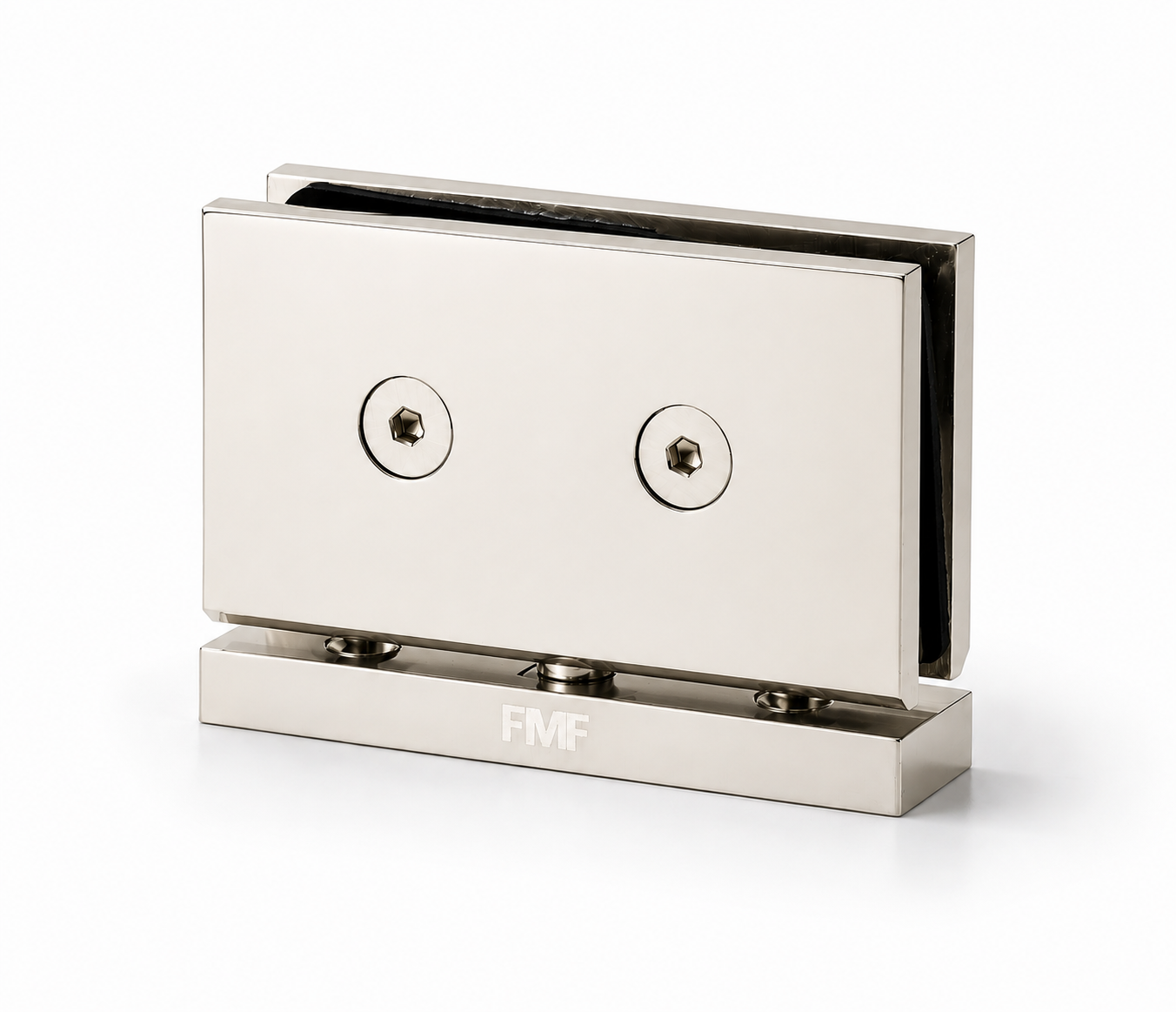

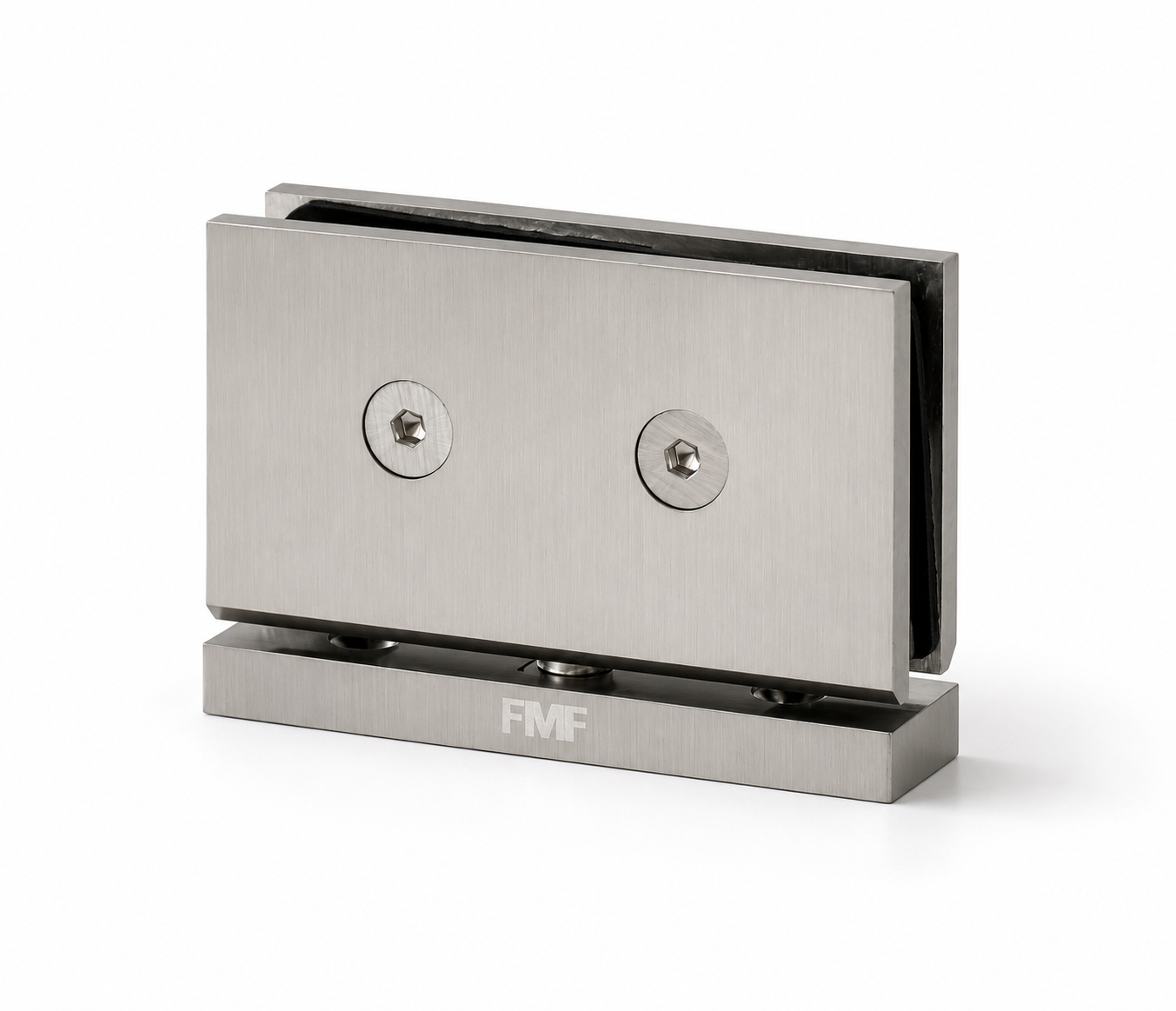

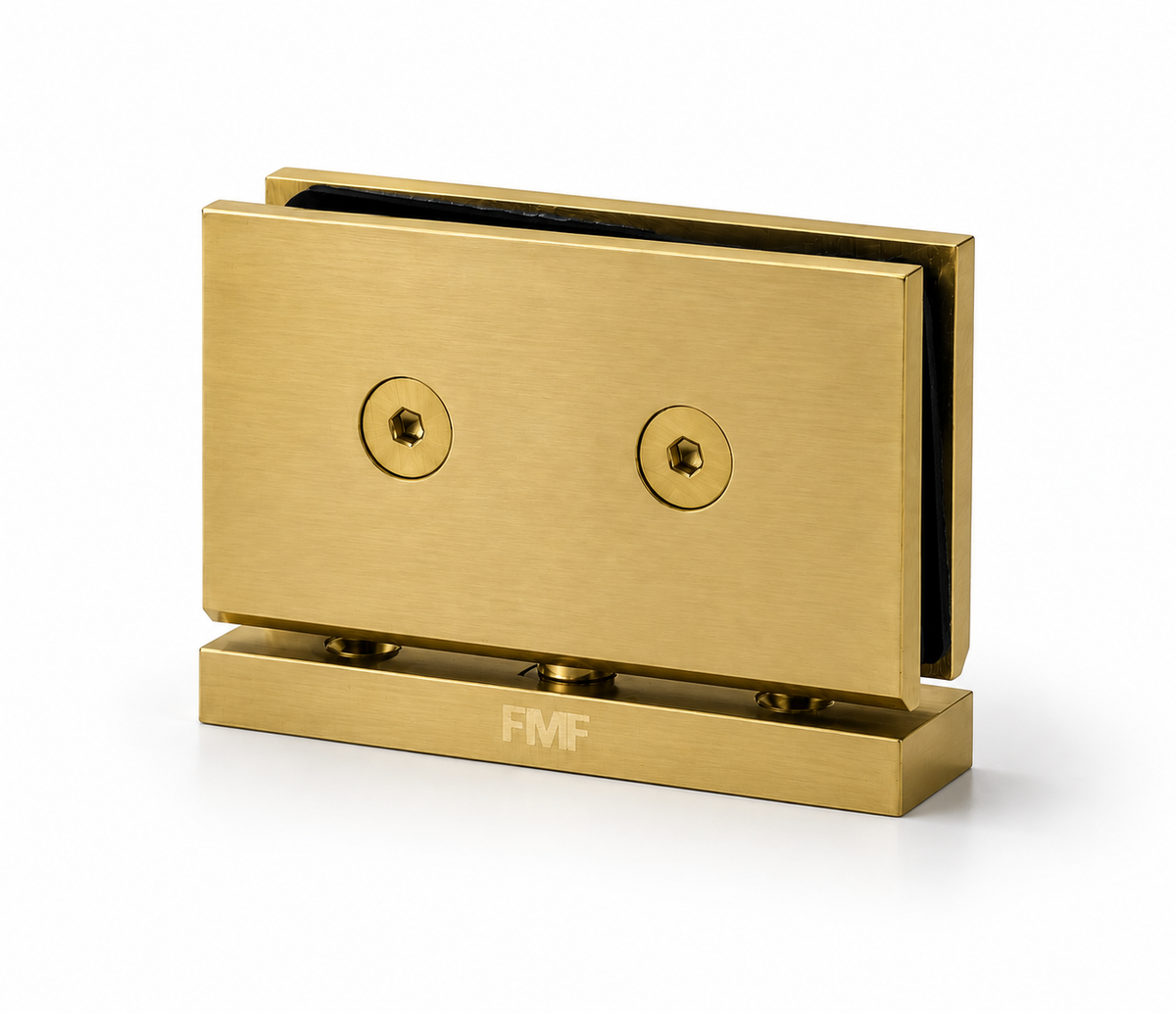

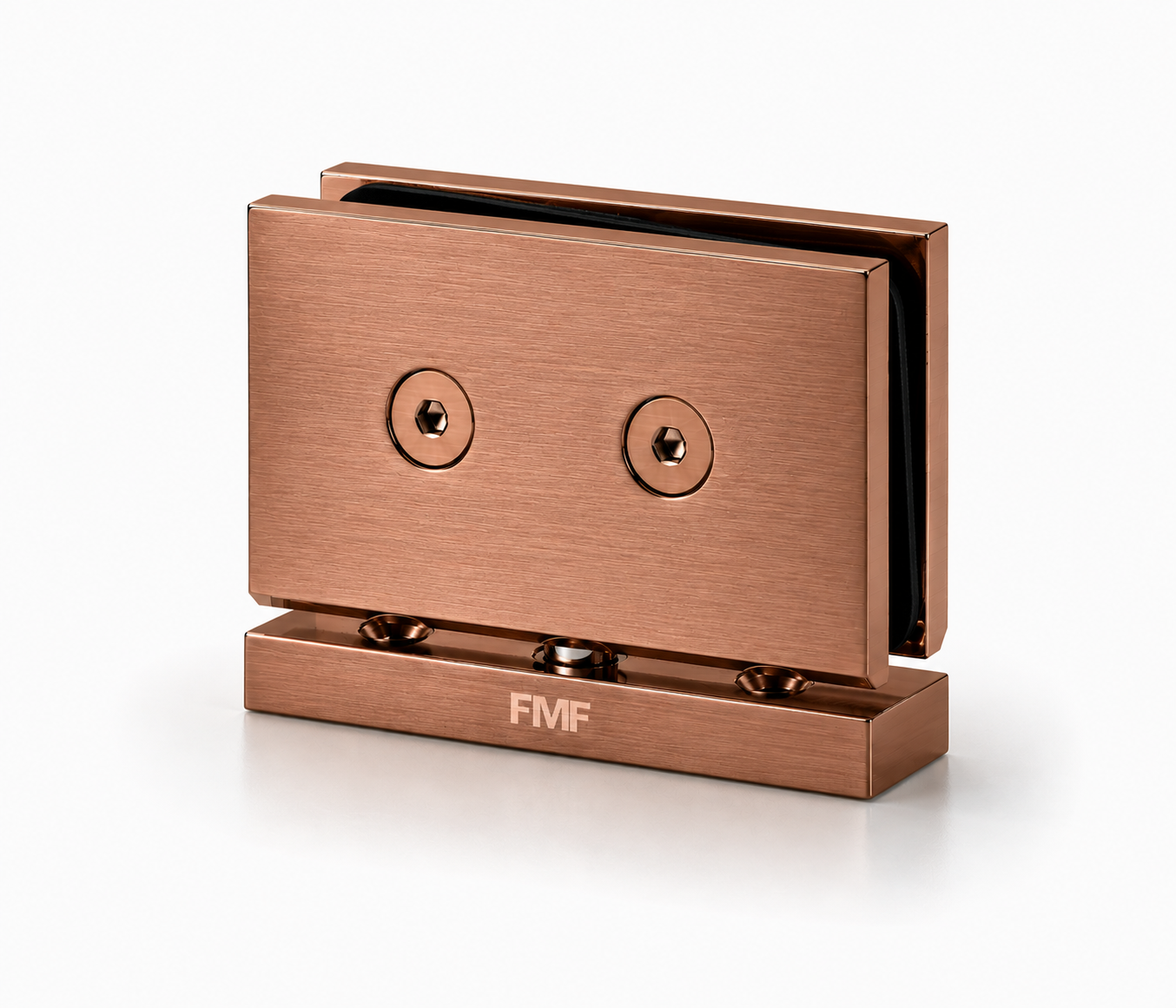

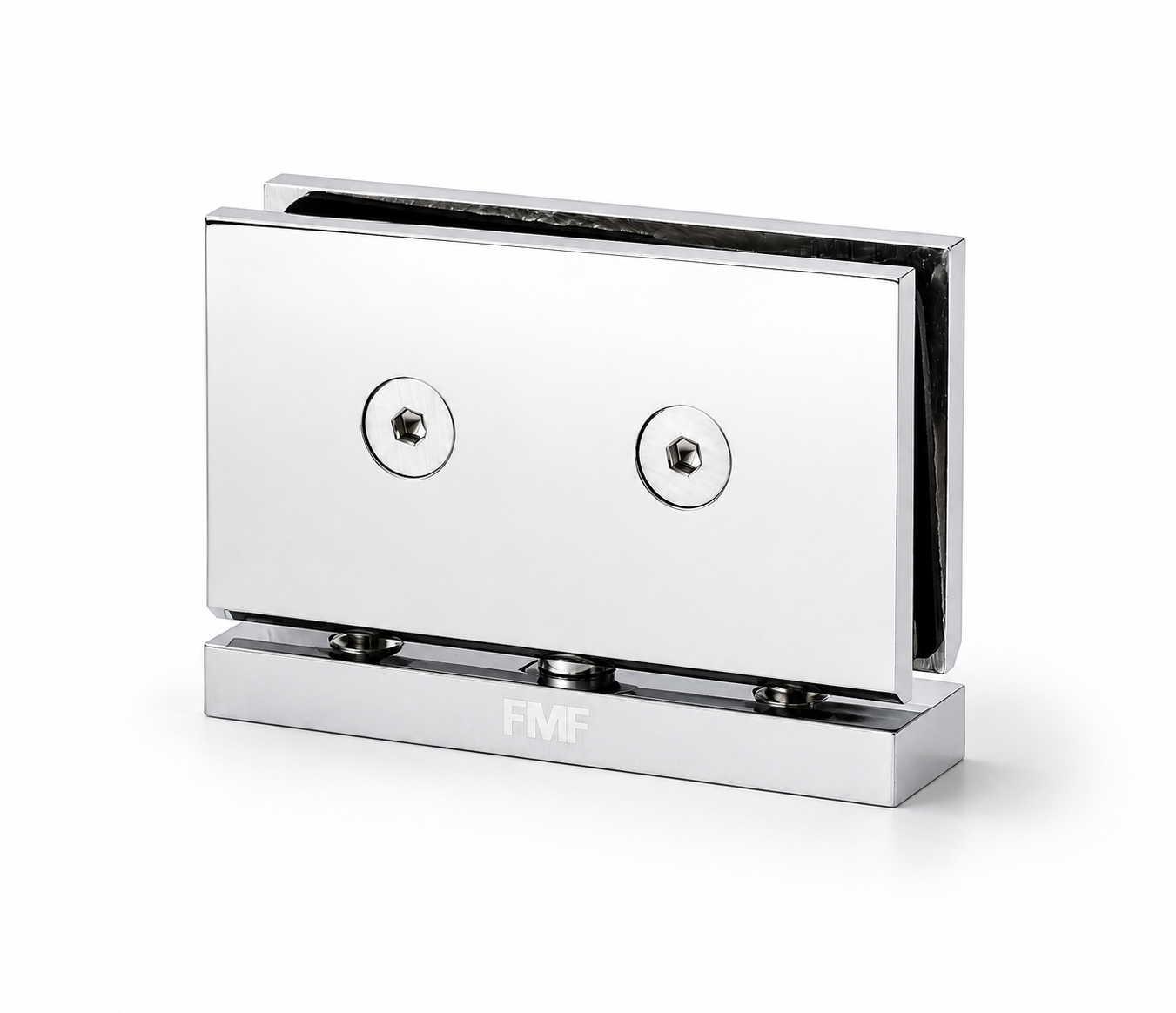

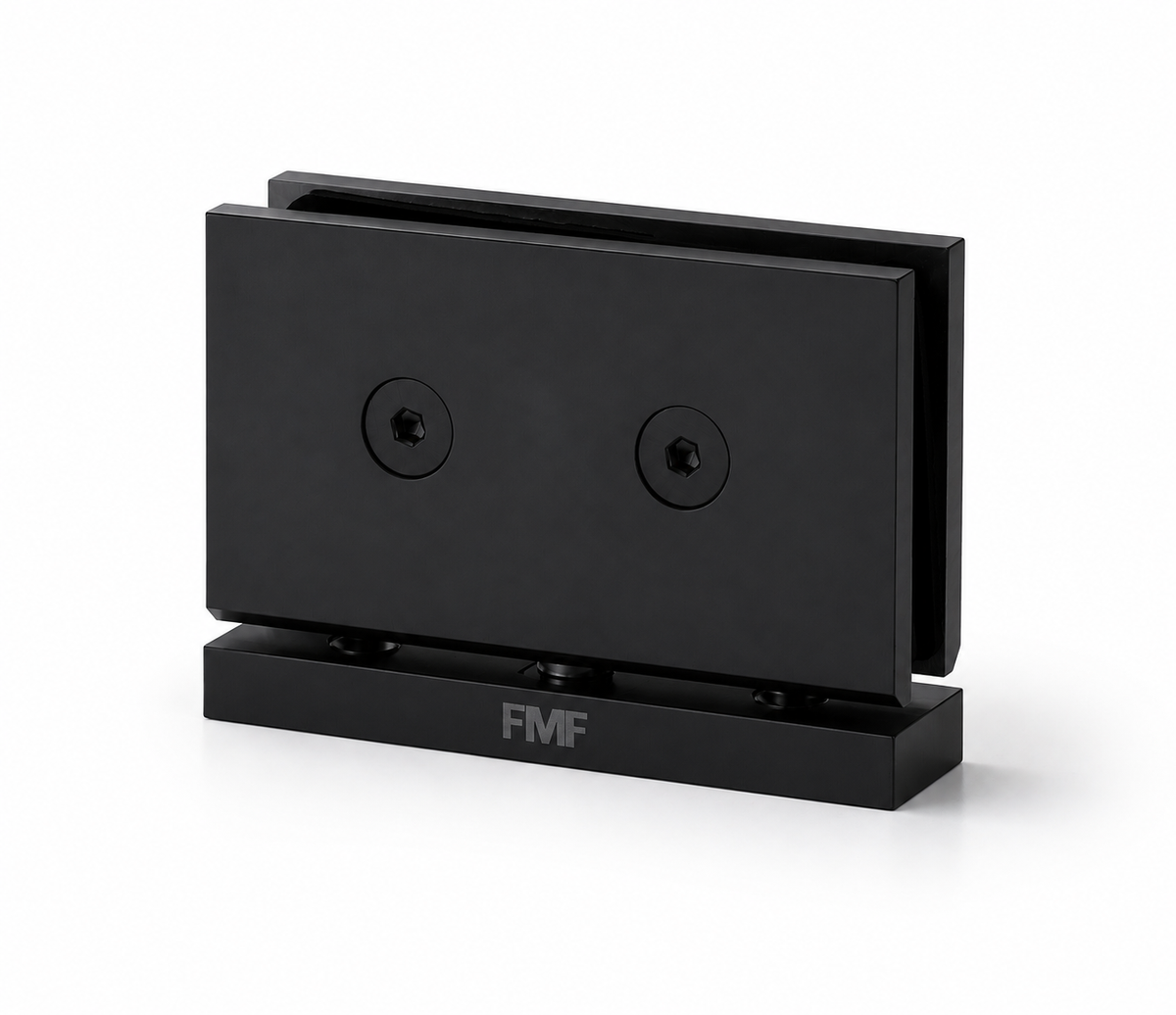

360° Square Pivot Hinge

The Top/Bottom Pivot Hinge is designed for frameless shower door installations where a clean appearance, smooth full-rotation movement, and strong support are required. This pivot-style hinge carries the majority of the door weight at the bottom, allowing more glass to show while reducing the number of required cut-outs compared to standard side-mount glass-to-glass hinges.

Key Features:

• Designed for 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• Top or bottom mount design for frameless shower door applications
• Can be mounted floor-to-ceiling or floor-to-header, depending on the model
• Adaptable to Deluxe Header Kit applications
• Full-rotation swing for flexible door movement
• Solid brass construction for strength and durability
• Available in several beautiful finishes
• Allows more glass to show for a cleaner frameless appearance
• Helps provide clearance for towel bars and other projections
• Cut-out required for installation
• Includes gaskets, screws, and glass fabrication dimensions
• Apply medium-strength threadlocker on cover plate screws during installation

Strength and Durability:

• Maximum Door Weight - 2 Hinges: Supports up to 100 lbs (45 kg) and a maximum door width of 31" (787 mm).

Applications:

Ideal for frameless shower enclosures where the door requires a top and bottom pivot hinge setup. Pivot hinges are especially useful when the door needs to be inset from the wall, creating clearance for towel bars, handles, or other projections.
