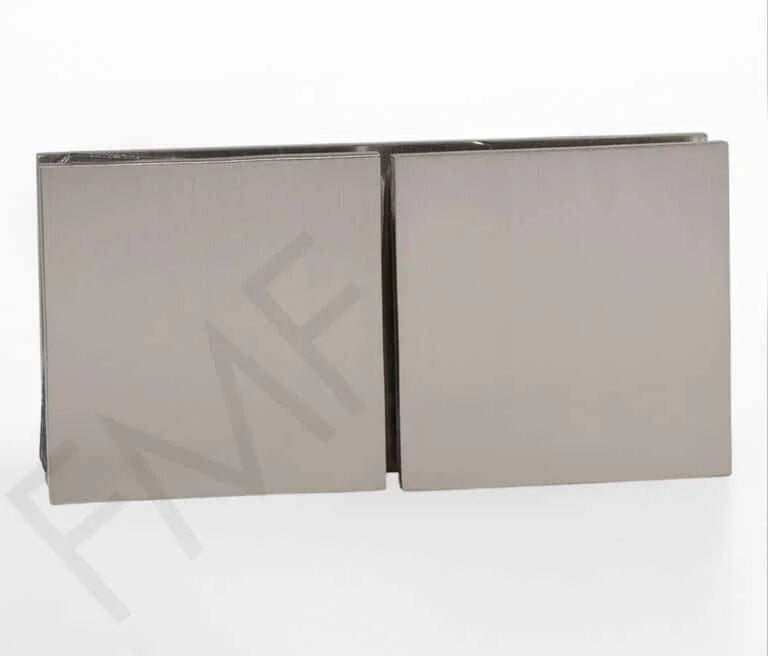

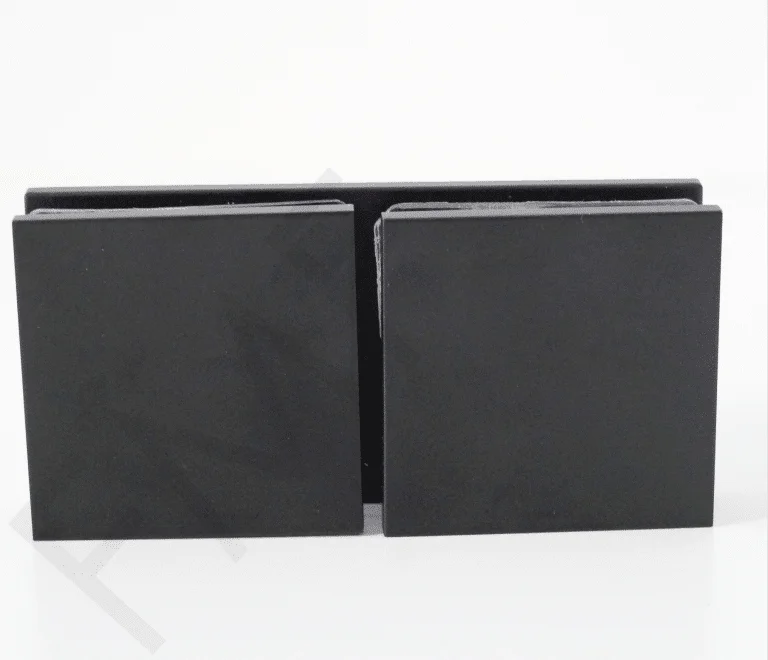

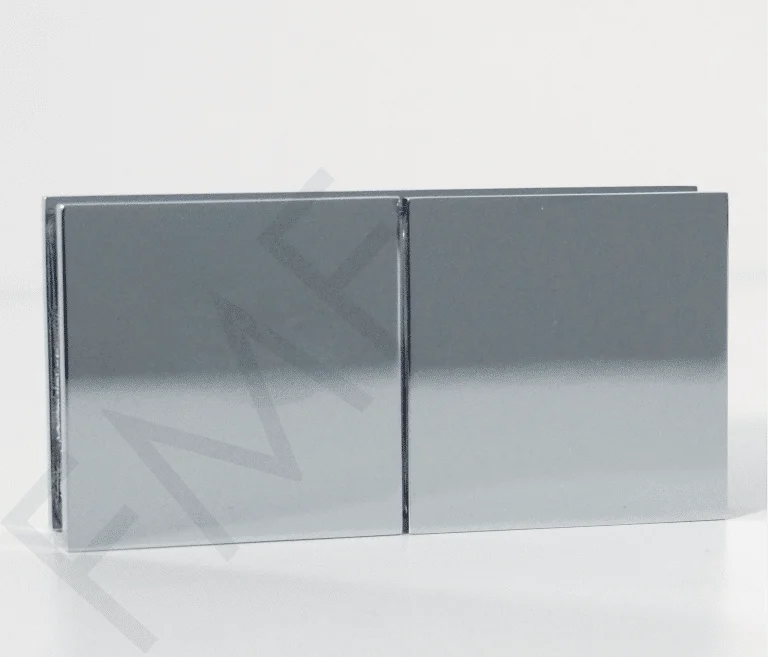

180° Fixed Junior Transom Glass Clamp

180° Fixed Junior Transom Glass Clamp
Model: C840

The C840 180° Fixed Junior Transom Glass Clamp is designed to connect two fixed glass panels in a straight 180° inline configuration. Made from solid brass, this clamp provides reliable strength, precise alignment, and a clean frameless appearance. It is an elegant alternative to traditional U-channels, helping create a modern all-glass look for frameless shower enclosures.

Key Features

• All-Glass Aesthetic: Provides a frameless look, enhancing the minimal design of modern enclosures.
• Solid Brass Construction: Durable, corrosion-resistant construction ensures long-term performance.
• Glass Compatibility: Designed for 3/8" to 1/2" (10–12 mm) monolithic tempered glass panels.
• Glass Fabrication Required: Requires 5/8"(16 mm) holes in each panel.
• Elegant Hardware Alternative: Offers a clean replacement to bulky channels and supports matching hardware finishes.

Specifications

• Material: Solid Brass
• Glass Thickness Range: 3/8" to 1/2" (10–12 mm)
• Hole Diameter Required: 5/8" (16 mm)
• Mount Type: Glass-to-glass
• Finish Options: Multiple premium finishes available to coordinate with other shower hardware

Installation & Support

• Ease of Installation: Designed for panels with pre-drilled holes. Standard tools required.
• Warranty: Backed by a limited 5-year manufacturer warranty.
• Shipping: Available across North America via trusted courier services.
