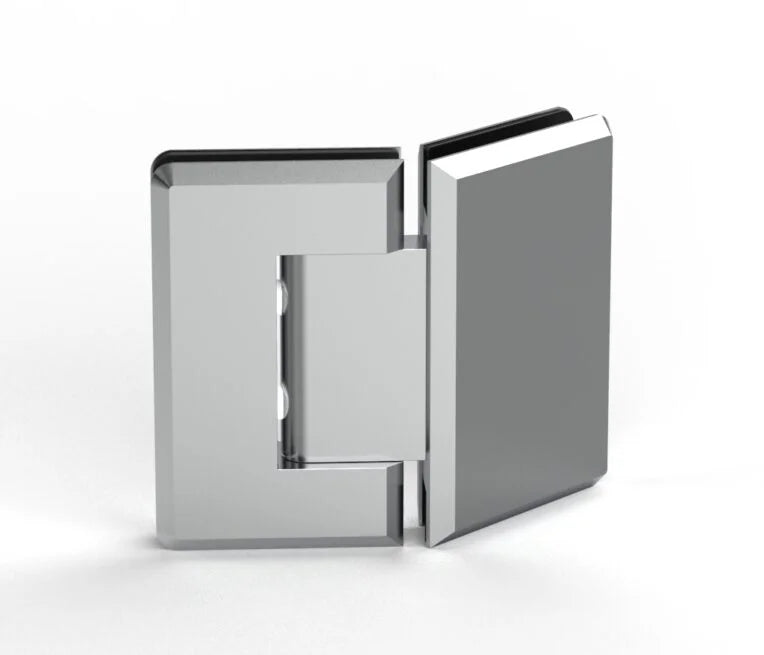

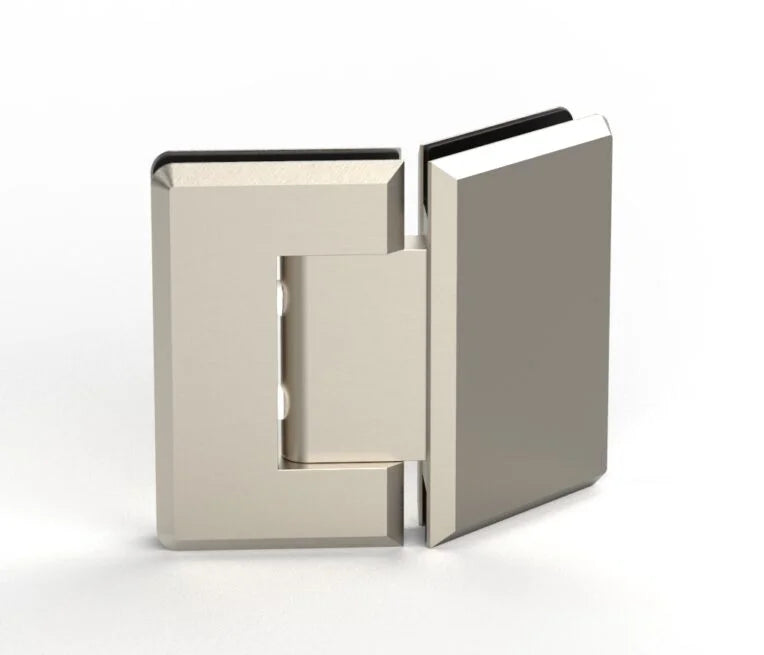

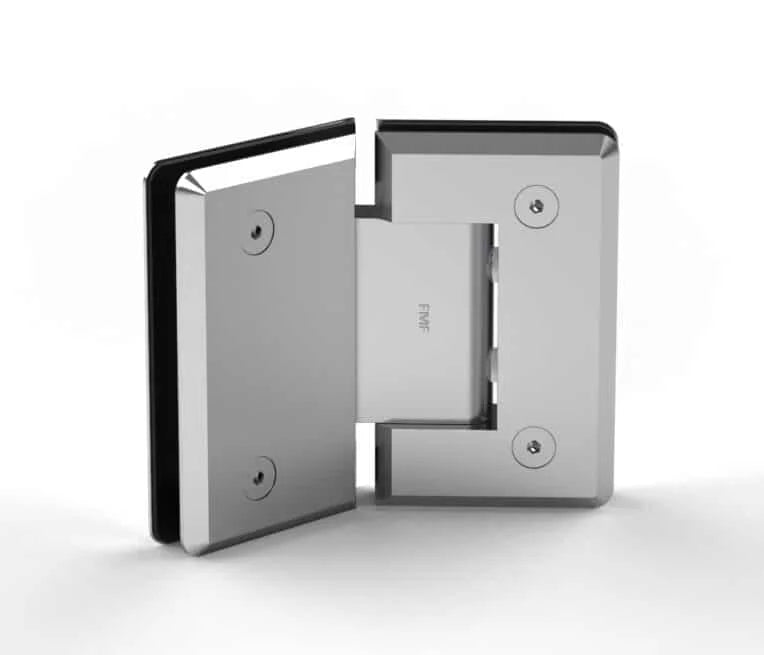

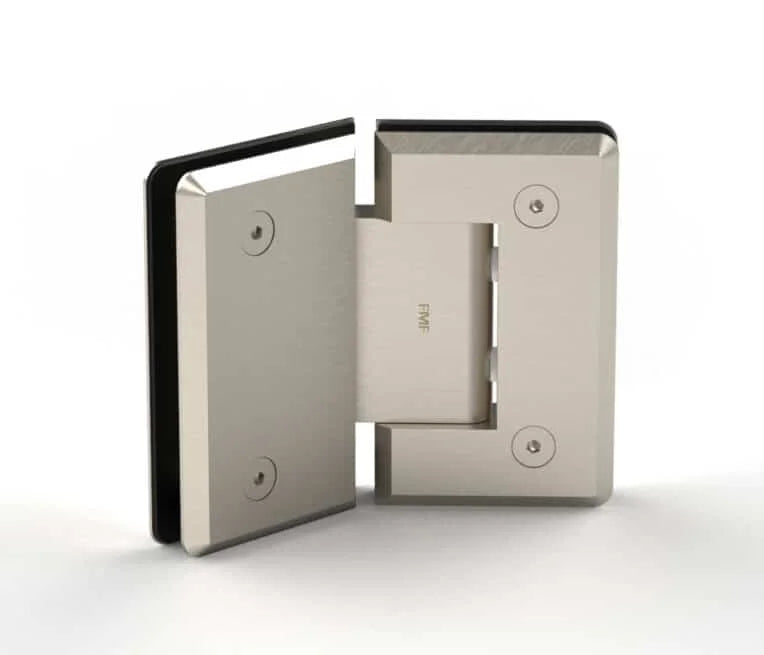

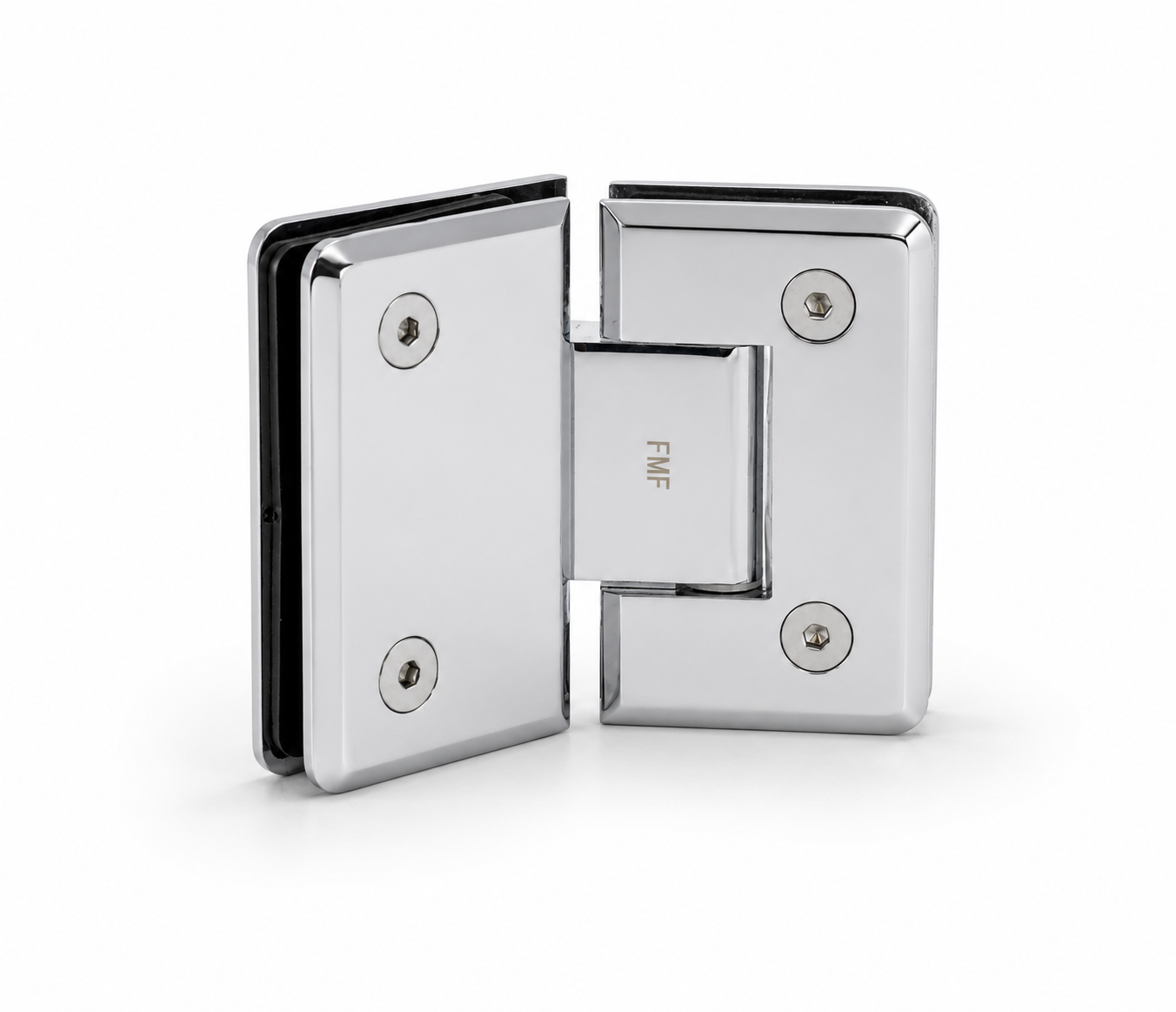

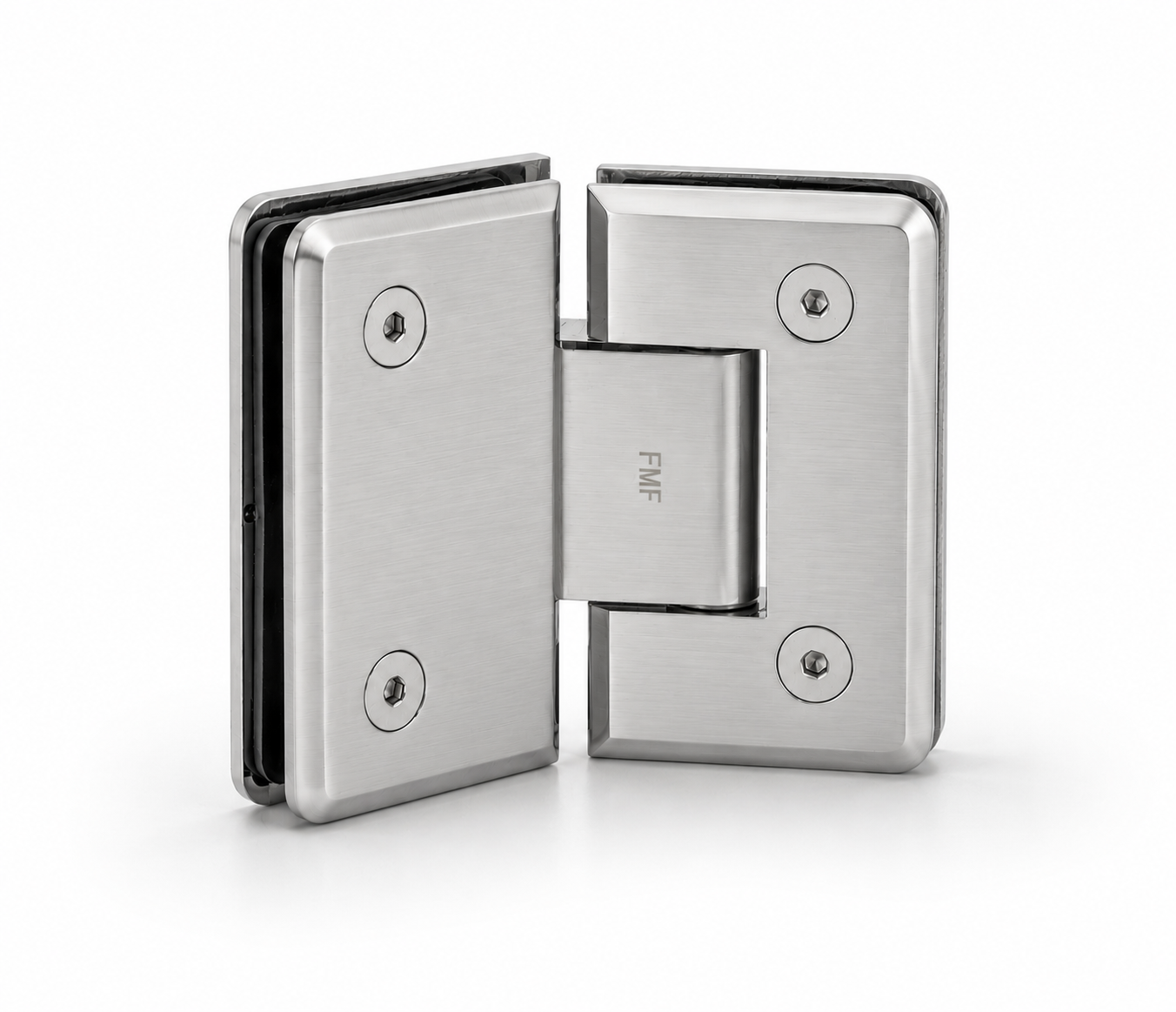

135° Bevelled Glass-to-Glass Hinge

The 135° Glass-to-Glass Hinge is designed for frameless shower door installations where the door connects to a fixed glass panel at a 135° angle. Built from solid brass, this non-adjustable hinge provides reliable strength, smooth operation, and a clean modern appearance for 10 to 12 mm tempered glass applications.

Key Features:

• Designed for 10 to 12 mm tempered glass
• Suitable for 135° glass-to-glass shower door applications
• Non-adjustable design for fixed-angle installations
• Connects the shower door directly to a fixed glass panel
• Constructed from solid brass for strength and durability
• Swings 90° in and 90° out
• Self-centering within 15° of the closed position
• Cut-out required for installation
• Includes screws, anchors, Allen wrench, fabrication diagram, rubber gaskets, and PVC gaskets
• Backed by a limited 1-year warranty

Strength and Durability:

• Maximum Door Weight - 2 Hinges: Supports up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm).
• Maximum Door Weight - 3 Hinges: Handles up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

Applications:

Ideal for frameless shower enclosures where the door is mounted to a fixed glass panel at a 135° angle. Its fixed-angle design provides stable support and clean alignment for residential and commercial shower door systems.

FMF Glass Hardware ships shower door hinges and glass hardware across Canada and North America.
